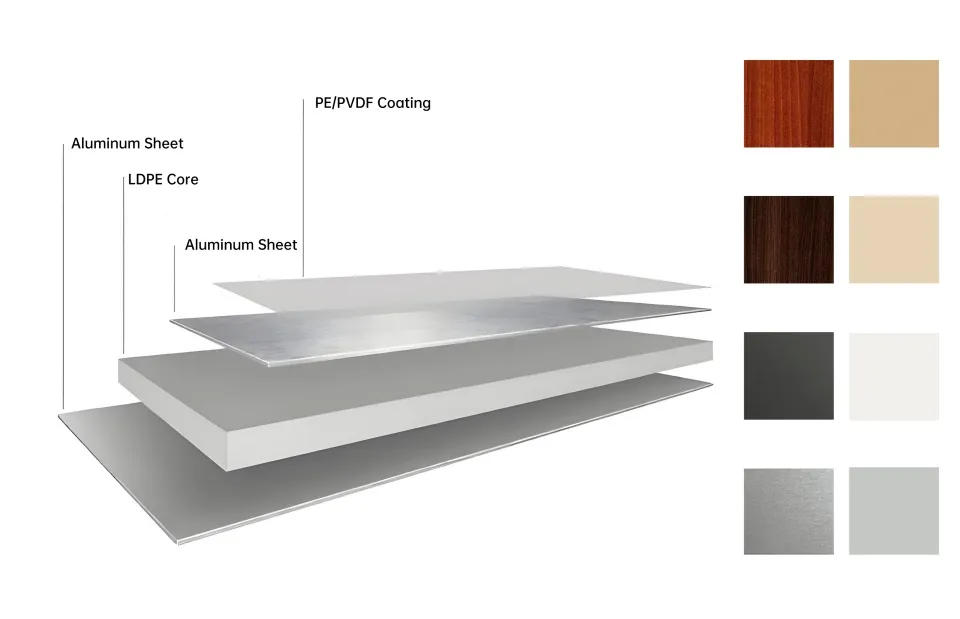

Aluminum composite panels are made of three layers of color coated aluminum coils, core layers, and aluminum sheets, which are laminated under high temperature and high pressure.The colored aluminum coils are used as the top layer of aluminum composite panels, combining appearance and durability. With the ability to customize color, texture and coating type, It provide unparalleled flexibility for architectural and industrial applications.
Advantages Of Colored Aluminum Coils For Aluminum Composite Panels
Matching more aesthetic requirements
Diverse Colors: Color coated aluminum coil is available in a variety of colors, glossiness and surface finishes (such as matte, metallic and brushed). It can also be customized according to architectural design requirements.
Easy to Process: With excellent flexibility, colored aluminum coil can be easily slit, bent, and roll formed without cracking or peeling, making it ideal for complex architectural shapes.
Enhancing performance of aluminum composite panels
Superior Weather Resistance: The coating of colored aluminum coil is selected according to specific environmental conditions. Such as PVDF coated aluminum coil has excellent resistance to UV rays, pollution and acid rain, which can improve the durability of aluminum composite panels and minimize maintenance costs.
Excellent Corrosion Resistance: Color coated aluminum coils with PVDF coating have excellent resistance to moisture, acid, alkali and salt spray can effectively protect aluminum composite panels from corrosion in harsh environments.
Ideal for Lightweight Structures: When bonded with core materials, the color coated aluminum coil has excellent rigidity and impact resistance, which can not only reduce the building load but also maintain high strength and is particularly suitable for high-rise building applications.
Specifications Of Colored Aluminum Coils For Aluminum Composite Panels
|
Aluminum alloy |
AA1100, AA3003, AA3004 |
|
Thickness |
0.2mm-0.5mm,supporting customized thickness |
|
Coating type |
PE coating (interior decoration), PVDF coating (building curtain wall) |
|
Coating thickness |
25-60μm |
|
Finishing |
Ral color, metallic color, imitation wood grain, imitation marble, etc. |
|
Processing services |
Slitting,Punching |
Different Application Projects Of Aluminum Composite Panels

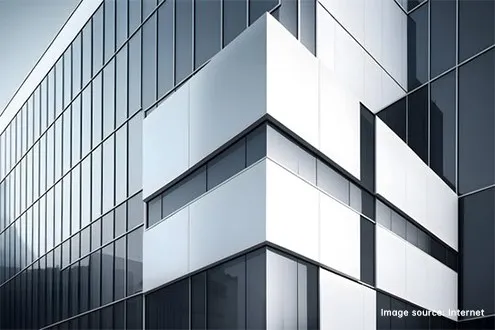

Application for building curtain wall panels
Material:3003/3004 colored aluminum coil
Thickness:0.4mm-0.5mm
Coating type: PVDF Coating
Coating thickness: 25-60μm
Appearance: Customized color, Matte
Application for interior decorative wall panels
Material: 1100 colored aluminum coil
Thickness: 0.3mm/0.4mm
Coating type: PE Coating
Coating thickness: 25μm
Appearance: Customized colors or patterns(Imitation wood grain, imitation marble grain)

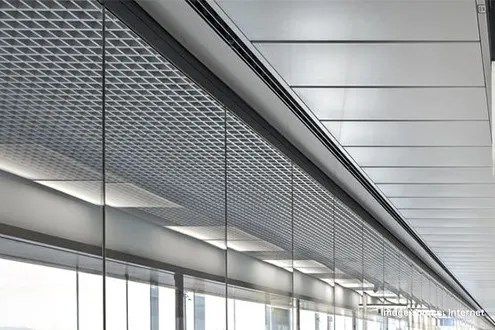

Application for airport aluminum ceiling
Material: 3003 colored aluminum coil
Thickness: 0.2mm-0.5mm
Coating type: PVDF Coating
Coating thickness: 25μm
Appearance: Customized colors or patterns according to application design
