Shandong Hanchen Metal Co., Ltd. was established in 2017. We are specializing in the production of prepainted aluminum coils, color coated 1series, 3series, 5 series aluminum coils, thermal insulation panels, using PE or PVDF painting, the thickness of painting film can be 15-60 μm or more . It is used in large modern public places such as steel structure workshops, metal roofing, gymnasiums, exhibition centers, coastal areas, and special factories.
Why Choose Us
Foreign Trade Market
We have established long-term business relationships with customers in many countries and regions such as the United States, Canada,Brazil, India, Chile, Nigeria, Ghana, and Italy.
Better Service
70+ Countries export experience and excellent after-sales service.We satisfy the demands meanwhile also obtain public reputation and praise from customers.
Quality Control
We have the strictest product quality control system, which starts from the purchase of raw materials. During the production, packaging and transportation, we have to strictly refer to the specifications.
Competitive Prices
Our Aluminum Coil is made with excellent quality and is competitively priced, ensuring great value for our customers. It is coated with an aluminized silicon alloy, providing enhanced durability and resistance to corrosion.

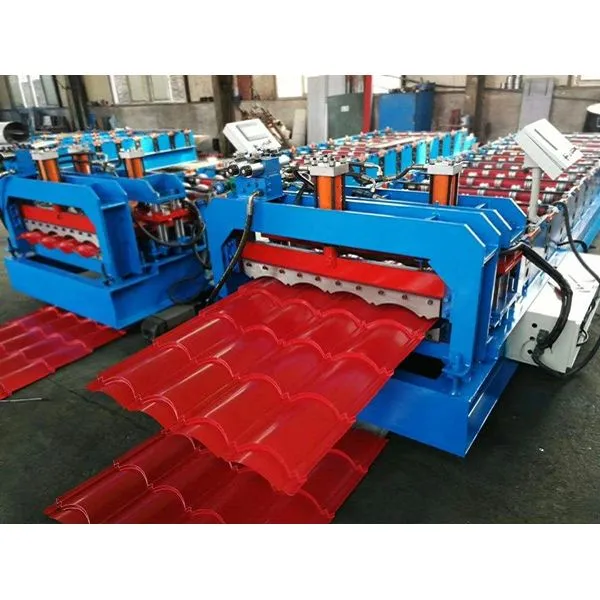

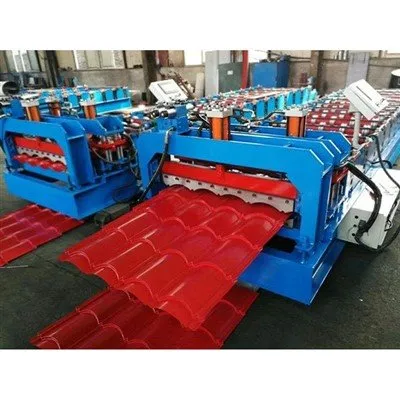

Machinery & Equipment Specifications
|
Thickness Range |
0.3-0.8 mm |
|
Material yield stress |
230~550 Mpa |
|
Roller driven type |
Chain transmission |
|
Hydraulic system pressure |
12 Mpa |
|
Hydraulic station motor power |
4 Kw |
|
Main motor power |
4~5.5Kw |
|
Total power |
7~8.5Kw |
|
Coil Width Range |
914, 1000, 1220 or 1250 mm.(According to your actual drawing.) |
|
Electric Power |
380V, 50 Hz, 3 phase(or according to your need) |
|
Dimension |
About 7.2*1.3*1.4m(L*W*H), as per the drawing |
|
Cutting |
Automatically stop and cutting when it comes to the set length. |
|
Length of the Sheet |
You can set the length according to your need. |
|
Roller material |
45# Steel with chrome treatment |
Key Features
It has excellent corrosion resistance and can be used for a long time in harsh environments without rust or deformation.
The surface of the single color aluminum veneer is smooth and flat, the color is bright, it can be customized, and it is durable and does not fade, which plays an important role in the architectural design.
The aluminum veneer also has the functions of fire prevention, sound insulation and heat preservation.
Lightweight and easy to install.
Main Components
Main Machine
With feeding material guide, body frame made from H400 type steel by welding.Side wall thickness: Q235 t18mm ;Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated.
Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.Hydraulic motor: 4KW ;Cutting tool material: Cr12MoV,Heat treatment to HRC58-62 degree.The cutting power is provided by the main engine hydraulic station.
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
Packaging & Shipping
Nude, with waterproof cloth and stow-wood. Lmported computer control system packed with waterproof cloth and cardboard.
This producing line is maintained free of charge for 18 months. When the machine is used in china, we will install.and debug the machine for free; if it is used at abroad, we will send a professional technician to debug buyers should take all the fees for technicians travelling abroad.
All the parts in the machinery & equipment double layer roofing iron sheet cold roll forming machine, are free to maintain long life. If in 18 months our company bears the cost of exchanging the broken partlike the new parts cost and express cost, if more than 18 month, we also free to maintain the broken parts but for send the newparts, the buyer need bear the express cost.
When shipping the customizable machinery & equipment double layer roofing iron sheet cold roll forming machine, we will also send one set cd and specifications (chi-nese and english) to you with the machine, they can teach you how to operate the machines.
After-Sale Service
The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
We offer technical support for the entire life of our machines
We can send our technicians to install and train the workers in the clients' factories with extra cost.
Company Certificate
FAQ
We're well-known as one of the leading machinery & equipment manufacturers and suppliers in China. Please feel free to buy customized machinery & equipment made in China here from our factory. For price consultation, contact us.
