Products Description
Imitation wood aluminum cladding is a kind of advanced metal decoration material, with advanced aluminum alloy as the main material, according to the size, shape and structure of the engineering site design, using CNC bending technology molding, on the surface of the fluorocarbon spraying based on wood grain film, after vacuum treatment transferred to aluminum cladding fluorocarbon coating. Imitation wood grain aluminum cladding adopts high-quality high-strength alloy aluminum plate, coated with advanced new decorative pattern materials, high-grade gorgeous patterns, vivid color texture, solid wear-resistant patterns, no formaldehyde, non-toxic and harmful gas release.
Imitation wood aluminum cladding wood grain color highlights the green life concept, reflects a kind of high-end luxury architectural style, relieve the pressure of urbanites after work, let people have the feeling of being in nature. Aluminum veneer imitation wood grain light weight, high hardness, durable, moisture-proof waterproof, strong plasticity, can be used in a variety of places for decoration design, has become the new favorite of many designers.
Imitation wood aluminum cladding wood grain color highlights the green life concept, reflects a kind of high-end luxury architectural style, relieve the pressure of urbanites after work, let people have the feeling of being in nature. Aluminum veneer imitation wood grain light weight, high hardness, durable, moisture-proof waterproof, strong plasticity, can be used in a variety of places for decoration design, has become the new favorite of many designers.
Imitation wood aluminum cladding is a kind of advanced metal decoration material, with advanced aluminum alloy as the main material, according to the size, shape and structure of the engineering site design, using CNC bending technology molding, on the surface of the fluorocarbon spraying based on wood grain film, after vacuum treatment transferred to aluminum cladding fluorocarbon coating. Imitation wood grain aluminum cladding adopts high-quality high-strength alloy aluminum plate, coated with advanced new decorative pattern materials, high-grade gorgeous patterns, vivid color texture, solid wear-resistant patterns, no formaldehyde, non-toxic and harmful gas release.
What Are The Advantages Of Imitation Wood Aluminum Veneer?
1.Imitation wood grain aluminum cladding environmental protection, saving resources, pure aluminum alloy can be fully recycled.
2.wood grain aluminum cladding is made of high quality aluminum alloy, the surface is sprayed with fluorocarbon coating, and the fire temperature can reach 600 degrees.
3.Imitation wood grain aluminum cladding can be processed into a variety of shapes, you can also add some materials, to achieve sound absorption, heat preservation, sound insulation and other functions.
4.The service life of imitation wood grain aluminum veneer is very long, can reach 10-15 years or even longer.
Hot Tags: Imitation Wooden Aluminum Cladding, China Imitation Wooden Aluminum Cladding manufacturers, suppliers, factory,
Products parameters
| PE Aluminium sheet | |
|
Single Color Coated Aluminum Alloy Metal Roof Panels Parameter |
|
|
Painting coating |
Top:15~18μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 35+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
3T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |
|
PVDF Aluminium sheet |
|
|
Parameter |
|
|
Painting coating |
Top:20μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 25+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
1T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |

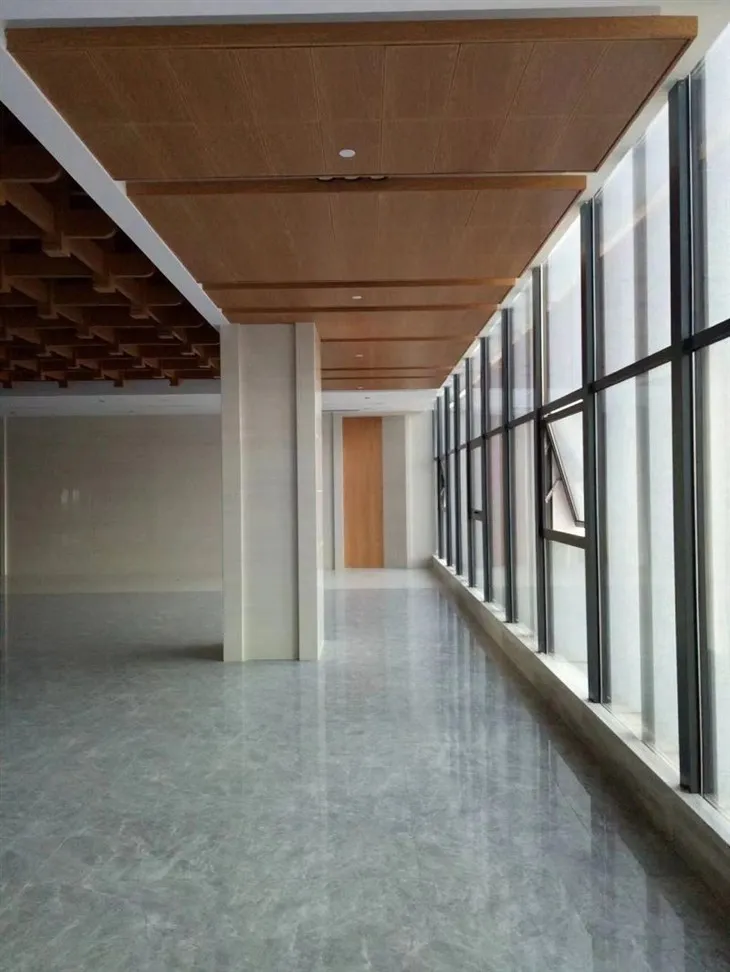

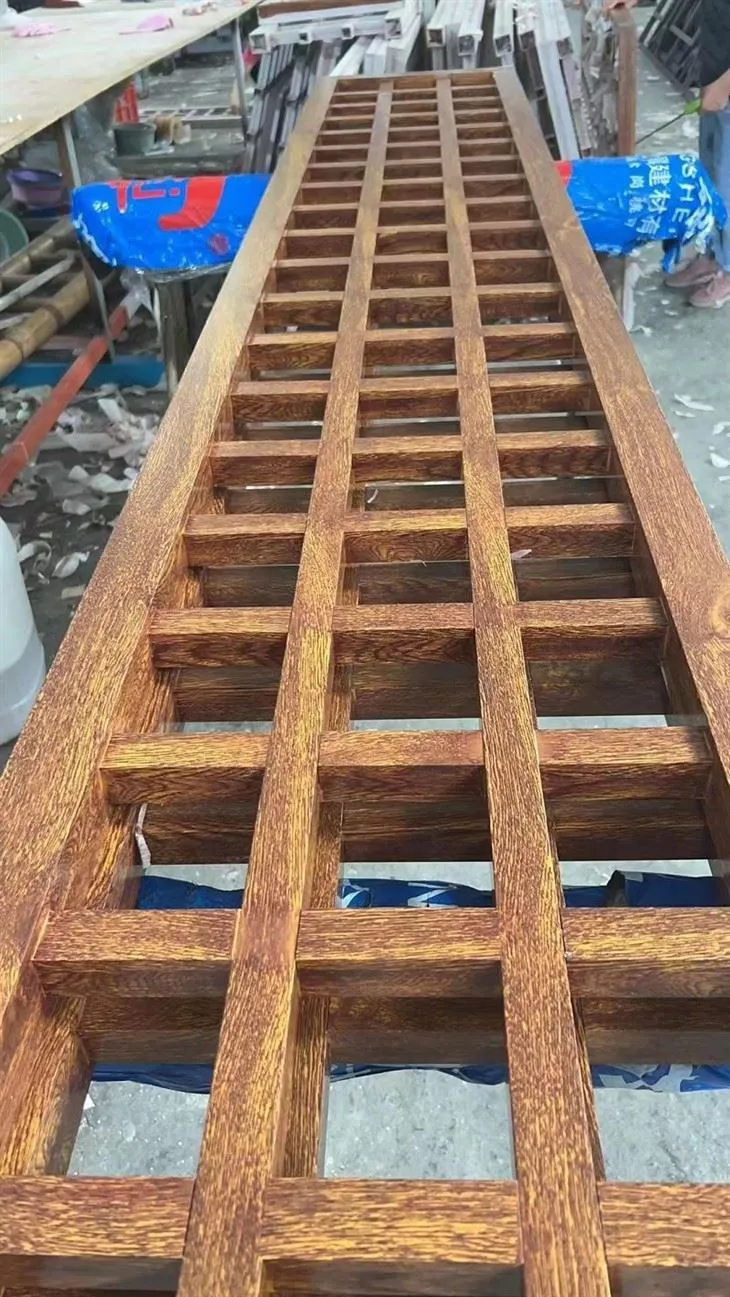

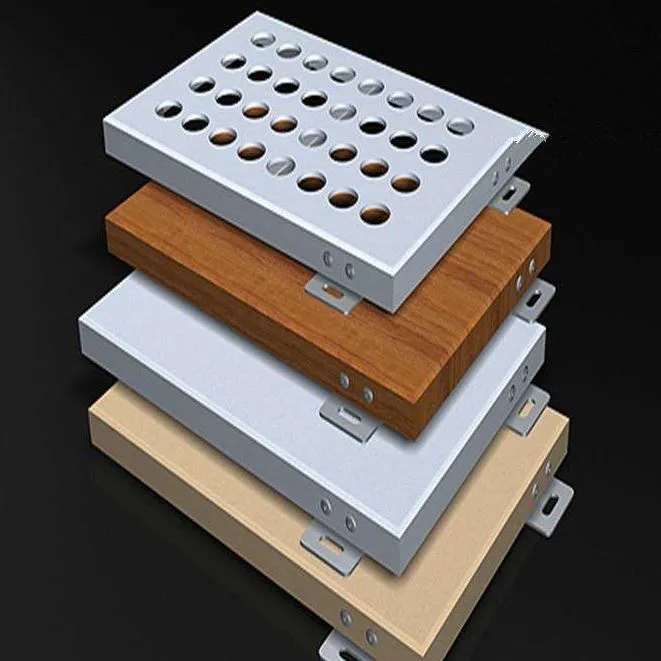

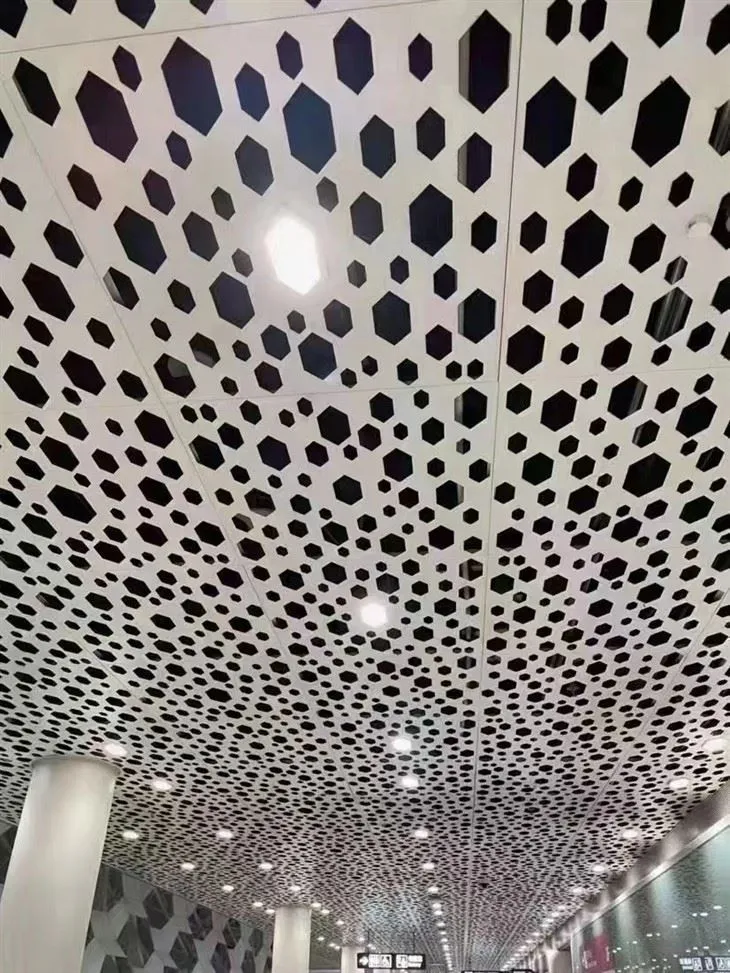

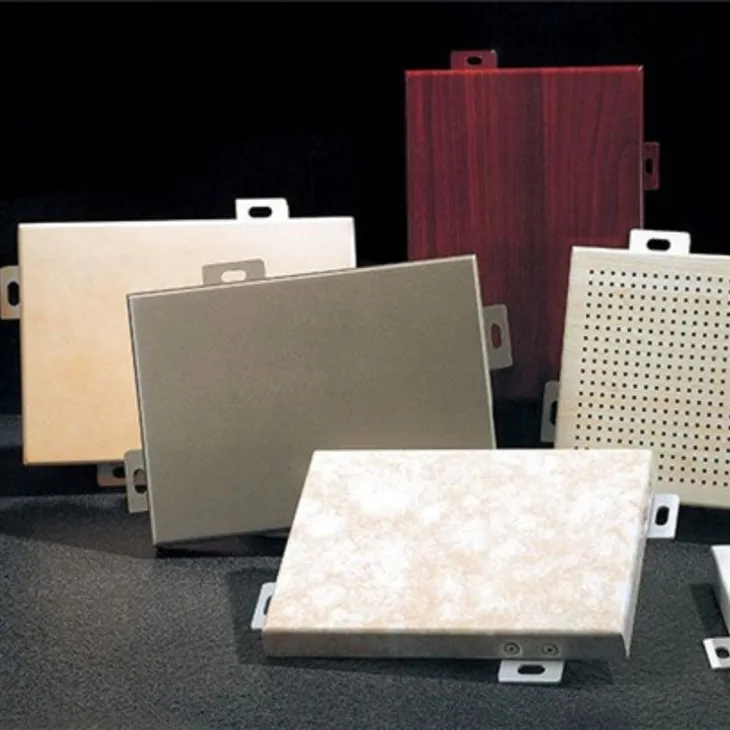

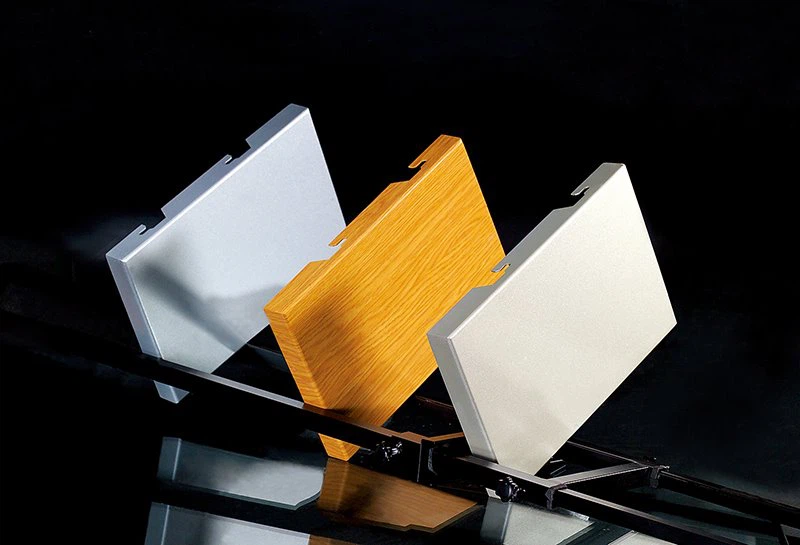

Product Picture
Our factory
workshop
workshop
workshop
workshop
