Products Description
Single color aluminum cladding is a high-quality building material with many advantages and a wide range of applications.
1. It has excellent corrosion resistance and can be used for a long time in harsh environments without rust or deformation.
2. The surface of the single color aluminum veneer is smooth and flat, the color is bright, it can be customized, and it is durable and does not fade, which plays an important role in the architectural design.
3. The aluminum veneer also has the functions of fire prevention, sound insulation and heat preservation.
4. Lightweight and easy to install
The aluminum cladding is processed by high-quality high-strength aluminum. The commonly used aluminum cladding thickness is 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm formed aluminum plate specifications, which can be customized according to customer design requirements. Its structure is mainly composed of panels, ribs and installation accessories.
According to engineering needs, rock wool is filled on the back of the panel to achieve heat insulation.
According to customer requirements, the panel can be sprayed with fluorocarbon, polyester, imitation wood grain and powder sprayed, and the color can be selected at will.

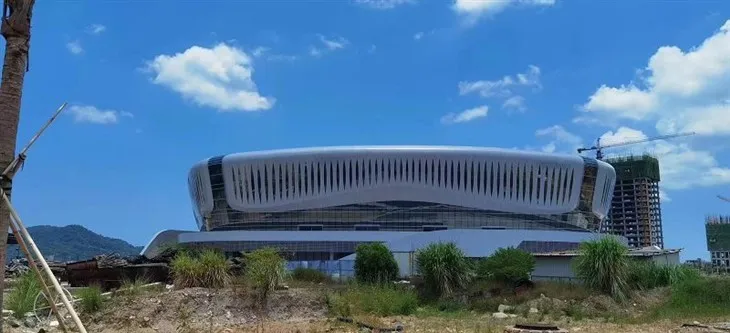

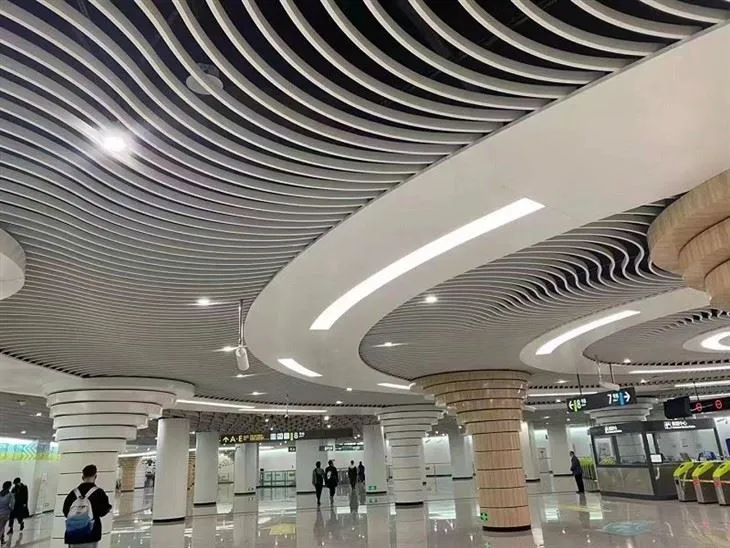

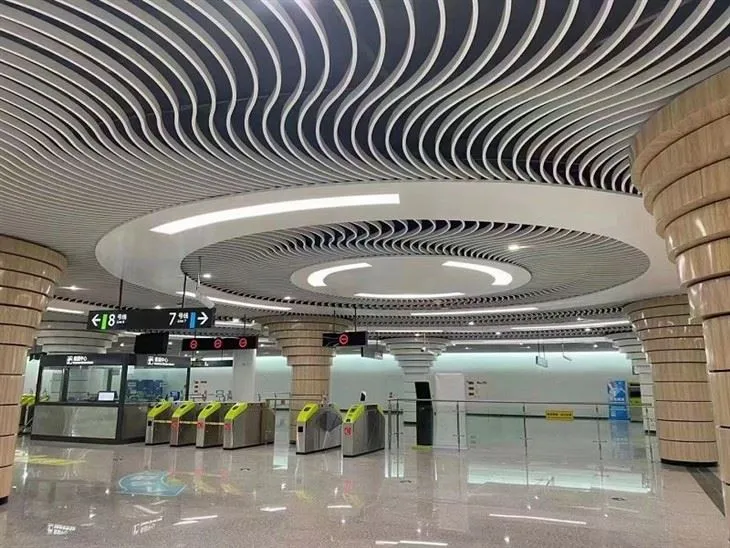

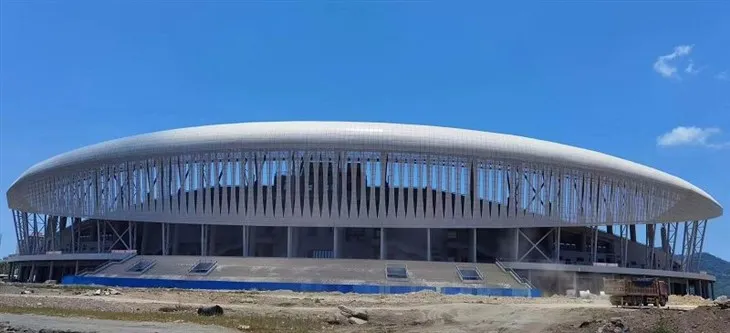

It is widely used in various buildings such as indoor and outdoor decoration, hotels, office buildings, shopping malls, office buildings, stations, airports, gymnasiums,industrial plants, commercial buildings and other public places, and has become one of the most popular materials in modern buildings. With its excellent performance, beautiful and practical features, single aluminum cladding has been widely recognized and applied in today's society, and will continue to play an important role.
Hot Tags: Single Color Aluminum Cladding, China Single Color Aluminum Cladding manufacturers, suppliers, factory,
The surface of the single color aluminum veneer is smooth and flat, the color is bright, it can be customized, and it is durable and does not fade, which plays an important role in the architectural design.
The aluminum cladding is processed by high-quality high-strength aluminum. The commonly used aluminum cladding thickness is 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm formed aluminum plate specifications, which can be customized according to customer design requirements. Its structure is mainly composed of panels, ribs and installation accessories.
Products parameters
| PE Aluminium sheet | |
|
Single Color Coated Aluminum Alloy Metal Roof Panels Parameter |
|
|
Painting coating |
Top:15~18μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 35+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
3T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |
|
PVDF Aluminium sheet |
|
|
Parameter |
|
|
Painting coating |
Top:20μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 25+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
1T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |

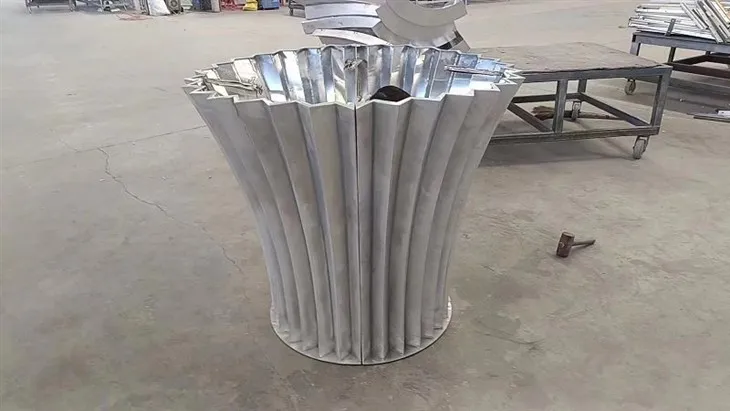

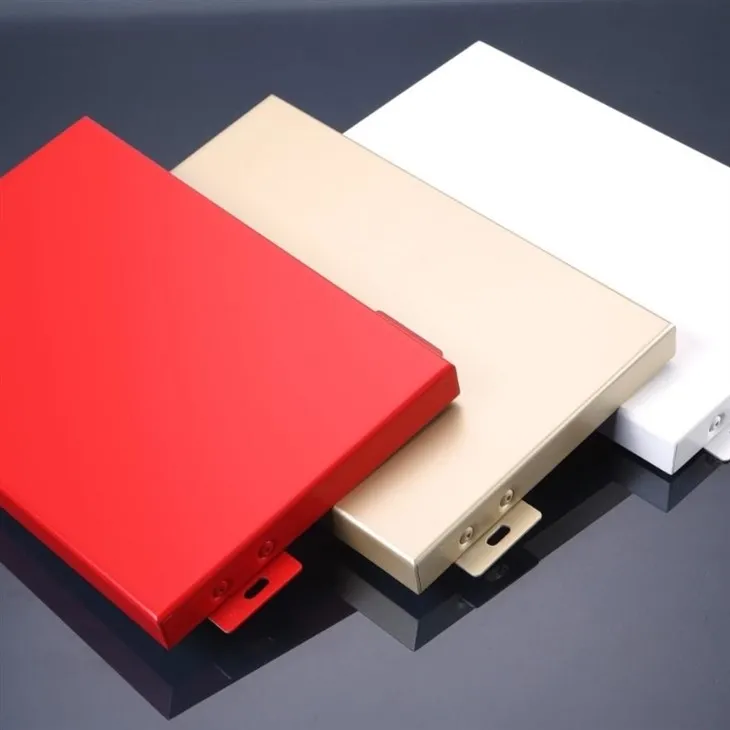

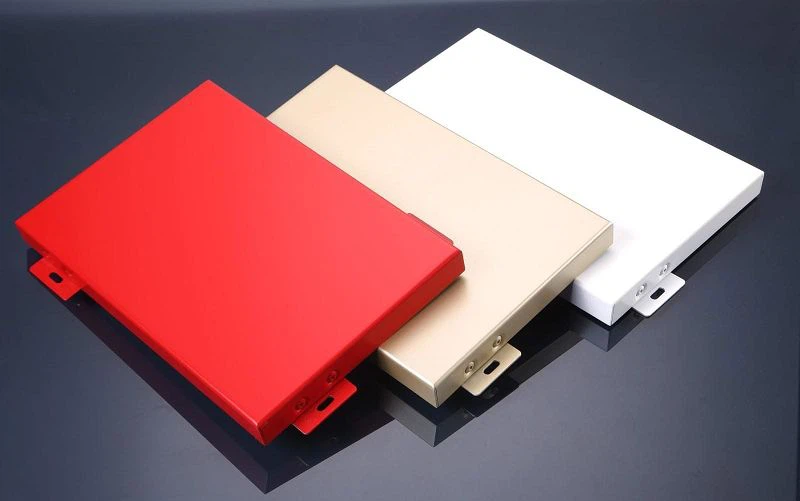

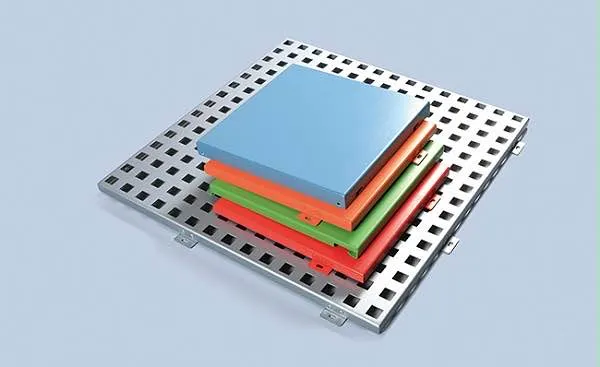

Product Picture
Our factory
workshop
workshop
workshop
workshop
