Products Description
Common specifications: thickness 0.5-1.2mm, width: 800mm-1650mm

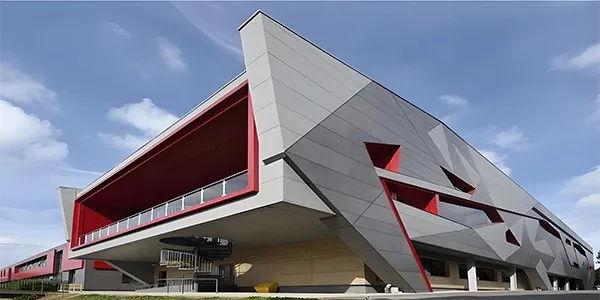

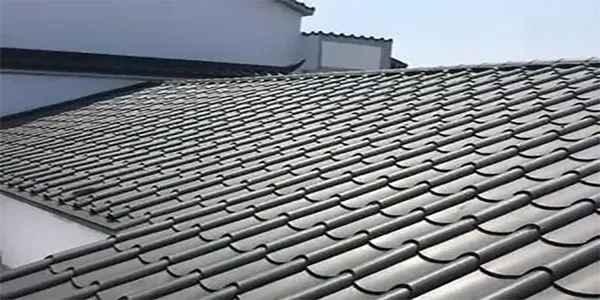

Color PE Coated Aluminum Coil include 3003 (Al-Mn)and 3004(Al-Mg-Mn)coils.Al alloy plate is a very practical metal roofing and exterior wall material. Compared with color steel plate, its cost performance and practicability are particularly high. At present, aluminum alloy plate is widely used in the construction industry, such as airport terminals and high-speed rail stations. , Large venues, and roofs in villa areas are widely used. At the same time, it also plays a very important role in modern architecture, providing customers with materials with great advantages such as lightness, durability, economy, and environmental protection. The following briefly introduces the advantages of aluminum-magnesium-manganese plates.

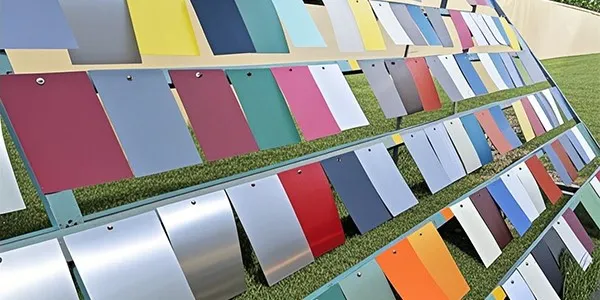

Color PE Coated Aluminum Coil come in a wide range of colors, textures, and finishes, which can be applied in many fields. It is lightweight, attractive,corrosion resistance,long-time performance.
Color Coated Aluminum Coils and Sheets are the most economical choice for various industrial projects.such as airport terminals and high-speed rail stations. At the same time, it also plays a very important role in modern architecture, providing customers with materials with great advantages such as lightness, durability, economy, and environmental protection.
Products parameters
| Color PE Coated Aluminum Coil physical properties | ||||||||
| Grade | Annealing Tem. |
Thickness/mm | Tensile test results at room temperature | Bending Radius | ||||
| Tensile strength (Rm/MPa) |
non-proportional extension tensile strength (Rp0.2/MPa) |
Elongation After Break (m/%) | ||||||
| A50mm | A | 90° | 180° | |||||
| Not Less Than | ||||||||
| 3003 | H14 | >0.20ï½0.50 | 145ï½195 | 125 | 2 | _ | 0.5t | 2.0t |
| >0.50ï½1.50 | 2 | 1.0t | 2.0t | |||||
| >1.50ï½3.00 | 3 | 1.0t | 2.0t | |||||
| >3.00ï½6.00 | 4 | 2.0t | ä¸ | |||||
| 3003 | H22 | >0.20ï½0.50 | 120ï½160 | 80 | 6 | _ | 0t | 1.0t |
| >0.50ï½1.50 | 7 | 0.5t | 1.0t | |||||
| >1.50ï½3.00 | 8 | 1.0t | 1.0t | |||||
| >3.00ï½6.00 | 9 | 1.0t | ä¸ | |||||
| H24 | >0.20ï½0.50 | 145ï½195 | 115 | 4 | _ | 0.5t | 1.5t | |
| >0.50ï½1.50 | 4 | 1.0t | 1.5t | |||||
| >1.50ï½3.00 | 5 | 1.0t | 1.5t | |||||
| >3.00ï½6.00 | 6 | 2.0t | ä¸ | |||||
| 3004 | H14 | >0.20ï½0.50 | 220ï½265 | 180 | 1 | _ | 0.5t | 2.5t |
| >0.50ï½1.50 | 2 | 1.0t | 2.5t | |||||
| >1.50ï½3.00 | 2 | 1.5t | 2.5t | |||||
| >3.00ï½6.00 | 3 | 2.0t | ä¸ | |||||
| H24 H34 |
>0.20ï½0.50 | 220ï½265 | 170 | 3 | _ | 0.5t | 2.0t | |
| >0.50ï½1.50 | 4 | 1.0t | 2.0t | |||||
| >1.50ï½3.00 | 4 | 1.5t | 2.0t | |||||
| H16 | >0.20ï½0.50 | 240ï½285 | 200 | 1 | _ | 1.0t | 3.5t | |
| >0.50ï½1.50 | 1 | 1.5t | 3.5t | |||||
| >1.50ï½3.00 | 2 | 2.5t | ä¸ | |||||
| H26 H36 |
>0.20ï½0.50 | 240ï½285 | 190 | 3 | _ | 1.0t | 3.0t | |
| >0.50ï½1.50 | 3 | 1.5t | 3.0t | |||||
| >1.50ï½3.00 | 3 | 1.5t | ä¸ | |||||
Product Advantage
good color retention
The paint film has good color retention. Polyurethane paint has both protection and decorative properties and can be used for interior decoration coating.
Excellent adhesion
PE paint can be formulated into an excellent adhesive. However, for metal surfaces, the adhesion of PE paint is slightly inferior to that of epoxy resin paint.
chemical resistance
PE coating has excellent chemical resistance, acid, alkali, salt solution, and petroleum products, so it can be used as maintenance coating for drilling platforms, ships, and chemical plants.
High temp. resistance
PE paint can be dried at high temperature or cured at low temperature, and can also be cured normally at 0°C without being affected by the season.

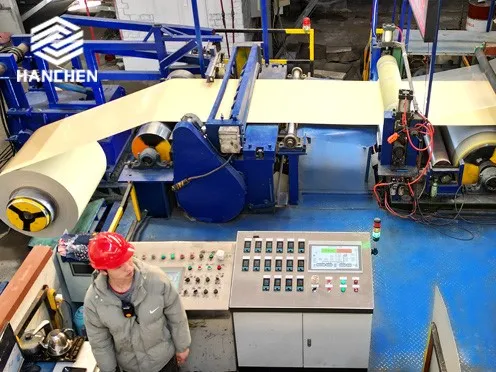

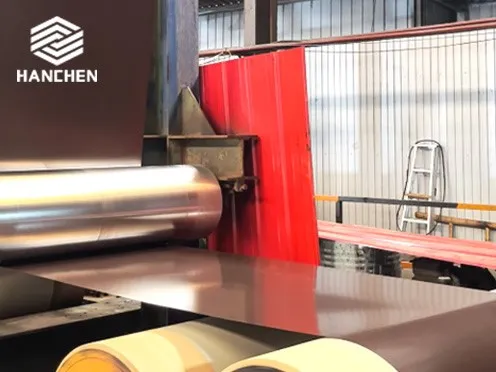

Our factory
