Products Description
Imitation Stone Grain Metal Roof Panels material :PE or PVDF Coated Al alloy 3003 and 3004
Stone is loved by people for its natural texture and high-grade texture, but as a non-renewable resource, it causes great environmental damage during the mining process. More and more people are paying attention to the rational use of stone in order to reduce the excessive consumption of earth resources. The birth of the Imitation Stone Grain Metal Roof Panels, its appearance makes up for the defects of the stone itself, and it can have the stone pattern effect without consuming stone resources, which is a high-quality choice for indoor and outdoor design.
Imitation stone aluminum has roll coating and aluminum sheet. It is one of many curtain wall decoration materials. Its appearance and texture are very similar to stone, and its decorative effect is the same as that of stone. In terms of performance, imitation stone The physical properties of aluminum are better than stone; with its own appearance and physical properties, it has become an ideal substitute for stone.
The Advantages Of PE Or PVDF Coated Al Alloy 3003 And 3004 Imitation Stone Grain Metal Roof Panels
1. Beautiful appearance: the metal imitation stone pattern roof adopts stone pattern technology to make the roof surface have natural stone pattern, which is more beautiful.
2. Strong durability: The metal roof itself has strong durability and corrosion resistance, and the addition of stone-like coating can improve the durability and durability of the roof.
3. Simple operation: The installation and maintenance of the metal imitation stone pattern roof is relatively simple, which can greatly reduce the cost of maintenance and repair.
4. Light weight: Compared with traditional stone roofs, metal imitation stone roofs are light in weight and will not impose too much burden on the structure of the building.
5. Environmentally friendly: The material used in the metal imitation stone pattern roof can be recycled, which is a more environmentally friendly roofing material.
Products parameters
| Imitation Stone Grain Metal Roof Panels technial data | ||||||||
| Grade | Annealing Tem. |
Thickness/mm | Tensile test results at room temperature | bending radius | ||||
| Tensile strength (Rm/MPa) |
non-proportional extension tensile strength (Rp0.2/MPa) |
elongation after break (m/%) | ||||||
| A50mm | A | 90° | 180° | |||||
| not less than | ||||||||
| 3003 | H14 | >0.20～0.50 | 145～195 | 125 | 2 | _ | 0.5t | 2.0t |
| >0.50～1.50 | 2 | 1.0t | 2.0t | |||||
| >1.50～3.00 | 3 | 1.0t | 2.0t | |||||
| >3.00～6.00 | 4 | 2.0t | 一 | |||||
| 3004 | H14 | >0.20～0.50 | 220～265 | 180 | 1 | _ | 0.5t | 2.5t |
| >0.50～1.50 | 2 | 1.0t | 2.5t | |||||
| >1.50～3.00 | 2 | 1.5t | 2.5t | |||||
| >3.00～6.00 | 3 | 2.0t | 一 | |||||
| H24 H34 |
>0.20～0.50 | 220～265 | 170 | 3 | _ | 0.5t | 2.0t | |
| >0.50～1.50 | 4 | 1.0t | 2.0t | |||||
| >1.50～3.00 | 4 | 1.5t | 2.0t | |||||
| H16 | >0.20～0.50 | 240～285 | 200 | 1 | _ | 1.0t | 3.5t | |
| >0.50～1.50 | 1 | 1.5t | 3.5t | |||||
| >1.50～3.00 | 2 | 2.5t | 一 | |||||
| H26 H36 |
>0.20～0.50 | 240～285 | 190 | 3 | _ | 1.0t | 3.0t | |
| >0.50～1.50 | 3 | 1.5t | 3.0t | |||||
| >1.50～3.00 | 3 | 1.5t | 一 | |||||

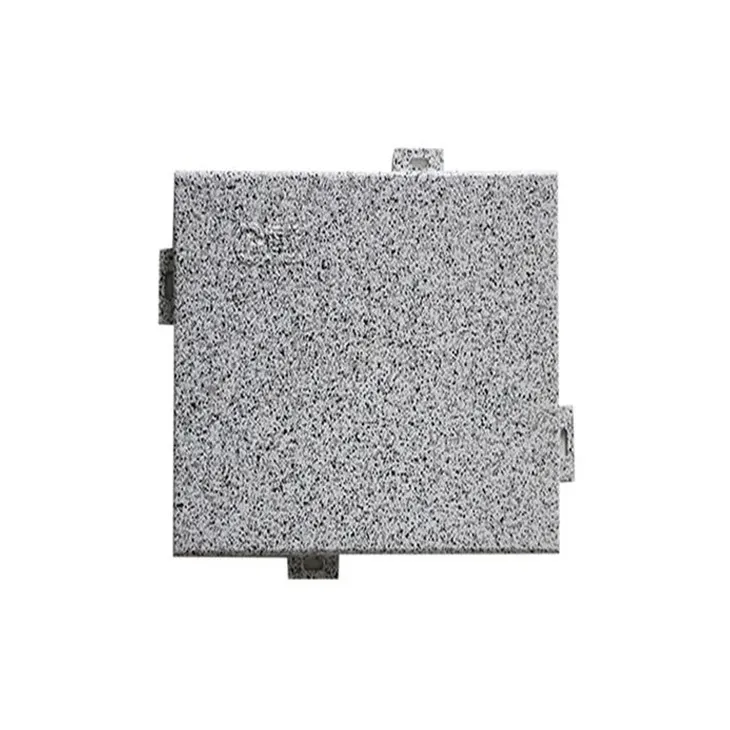

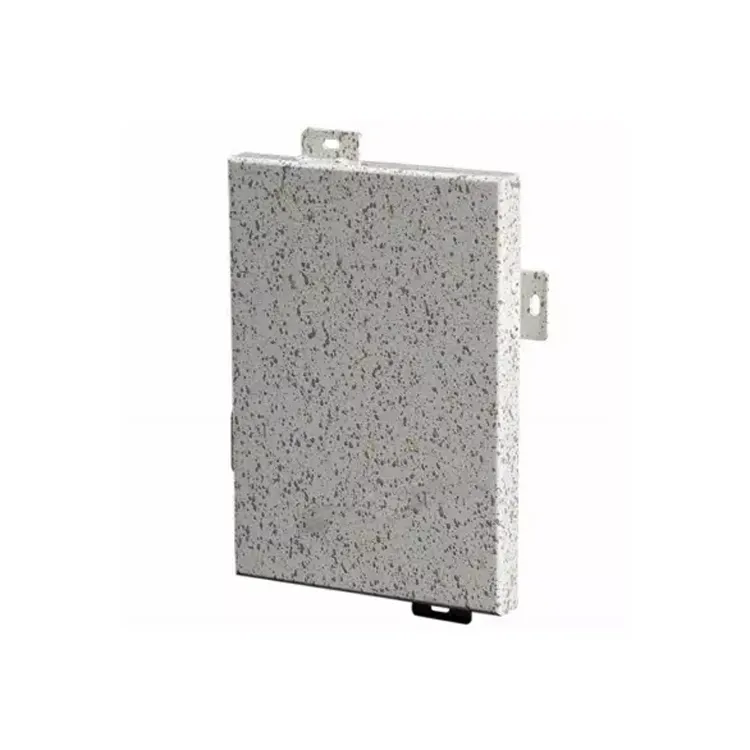

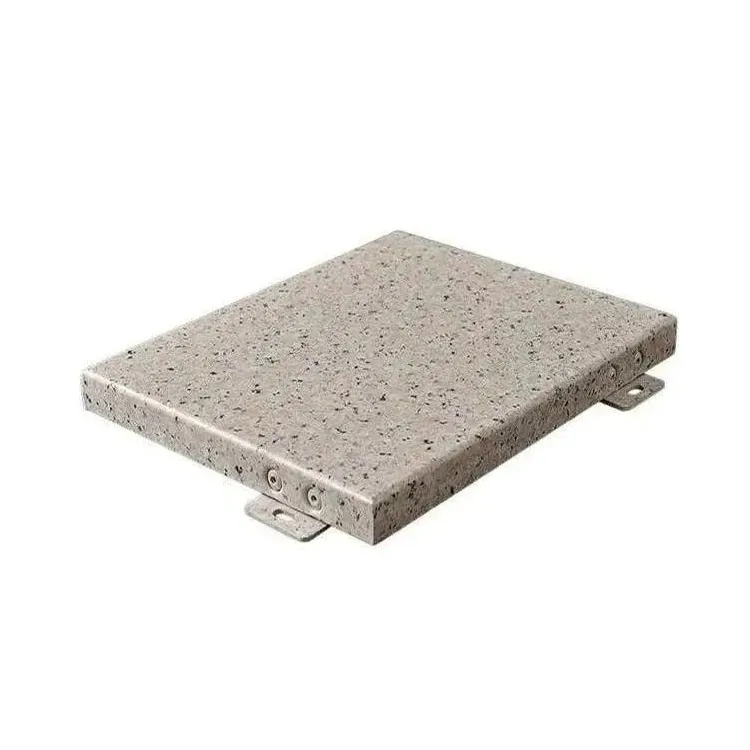

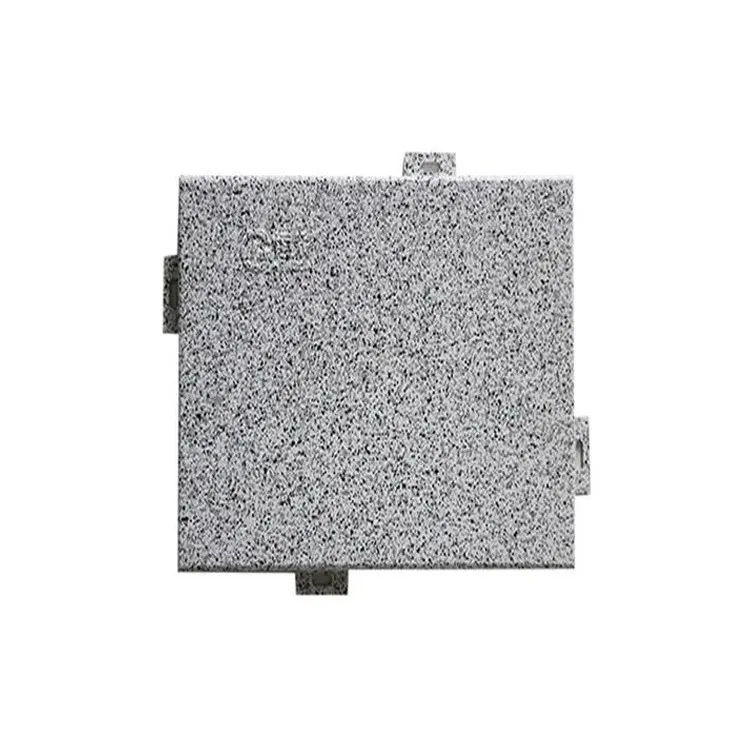

Product Picture
Our factory
workshop
workshop
workshop
workshop
