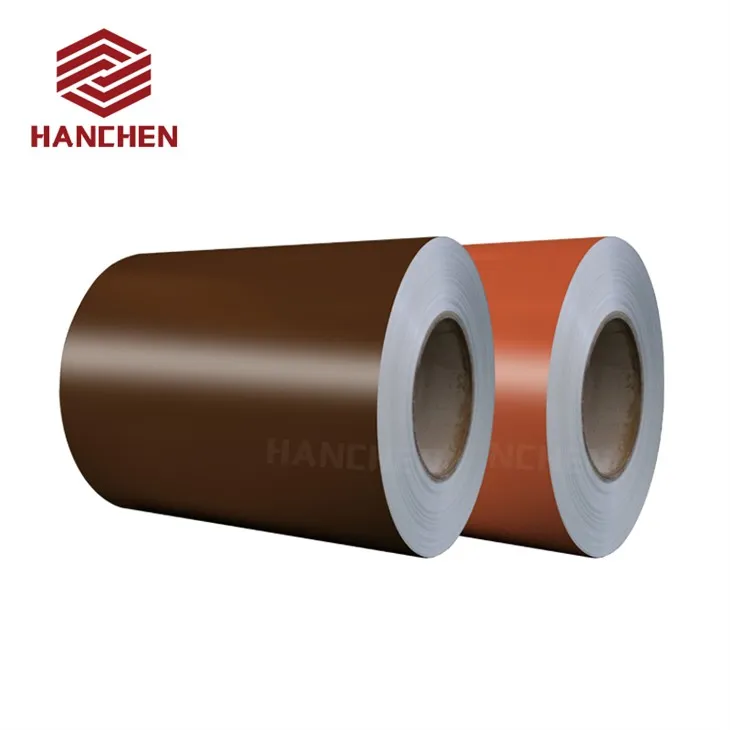

Product Description for Painted Aluminum Coil used In Thermal Insulation Panels
Painted aluminum coils used in thermal insulation panels, providing good thermal insulation performance, saving energy, and reducing the operating costs of buildings. Thermal insulation panels are a kind of sandwich structure panels made of two or more layers of thin plates and an intermediate thermal insulation core material. They have the characteristics of light weight, high strength, fire resistance, and waterproofness. Color coated aluminum coils can provide thermal insulation panels with a variety of colors and patterns to increase the decorativeness and aesthetics of thermal insulation panels. Thermal insulation panels can be applied to the exterior walls, interior walls, roofs and other parts of buildings to improve the thermal insulation effect and energy-saving efficiency of buildings.
Products performance for Painted Aluminum Coil used In Thermal Insulation Panels
Insulation aluminum coil Description
Commonly used thermal insulation aluminum coils are 1060 aluminum coils and 3003 aluminum coils. 1060 thermal insulation aluminum coils are suitable for projects with low requirements and no corrosive liquids, and the cost of use is relatively low. 3003 thermal insulation aluminum coils have better corrosion resistance and are suitable for corrosive environments.
1060 Insulation Painted Aluminum Coil
Tensile strength σb (MPa)
110-136
Elongation δ10 (%):
3-5
High purity: The purity of 1060 colored aluminum coils reaches 99.6%, so it has good electrical conductivity and thermal conductivity.Products Features
Good toughness: 1060 painted aluminum coil has good ductility and machinability, and can be processed into various shapes by stretching, stamping, etc.
Strong corrosion resistance: 1060 painted aluminum coil has good corrosion resistance in natural environment, but it is not suitable for corrosive media such as strong acid and strong alkali.
Excellent apperence：1060 color coated aluminum coil has a smooth surface, good gloss, light weight, and is suitable for making decorative materials.
Good thermal conductivity: 1060 painted aluminum coil has good thermal conductivity and can be used to make heat conduction equipment such as heat sinks.
Low price: Compared with other alloy aluminum coils, 1060 painted aluminum coil has a lower price, relatively low cost, and is economical.

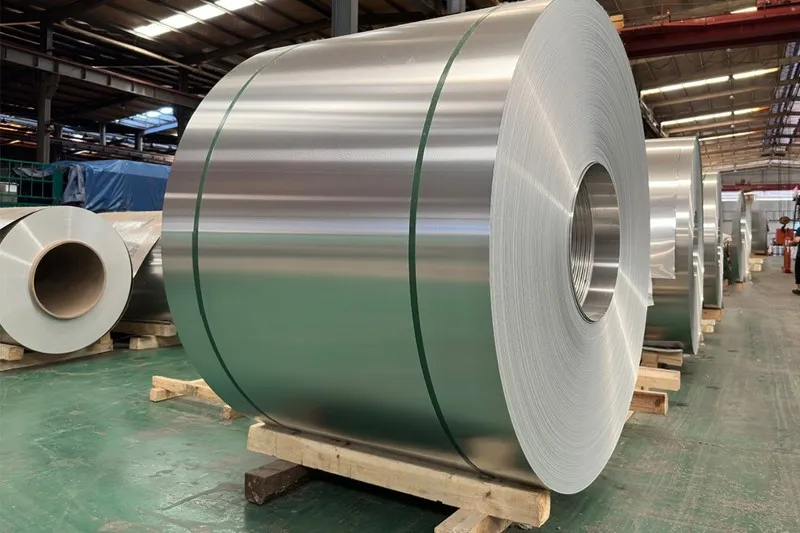

3003 Insulation Painted Aluminum Coil
Tensile strength σb (MPa)
142-178
Conditional yield strength σ0.2 (MPa)
≥115
The aluminum content of 3003 painted aluminum coil is above 98.00%, and the manganese content is about 1.0-1.8%. It has strong anti-rust performance and its hardness is 10% higher than that of 1060 Insulation colored aluminum coil.
Products Features for Painted Aluminum Coil

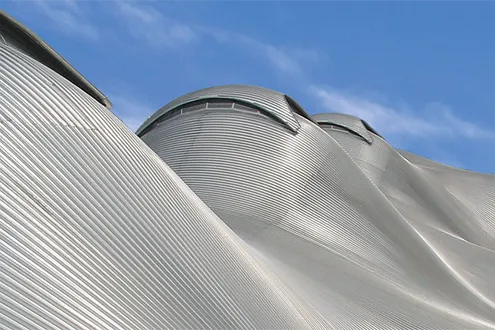

Easy to shape
3003 painted aluminum coil has good forming and processing characteristics, high corrosion resistance, good weldability and conductivity, and higher strength than 1 series aluminum coil.
Excellent rust prevention
3003 colored aluminum coil is a widely used rust-proof aluminum that is more suitable for harsh environments than 1060. It has the flat surface, good plasticity and pressure resistance

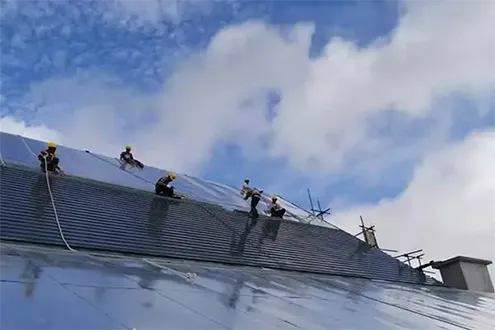

Good impact resistance
3003 color coated aluminum coil is not easy to break and leak, and can meet the requirements of application products for strength and rigidity.
Common specifications for Painted Aluminum Coil used in Thermal Insulation Panels
The common thickness of thermal insulation aluminum coils is mostly below 1mm, and the common thicknesses are 0.3mm, 0.4mm, 0.7mm, and 0.8mm.And the width can be customized according to customer requirements.
0.3mm Aluminum Coil
0.7 Aluminum Coil
0.8 Aluminum Coil
Standard Specification of Colored aluminum coil
| Thickness | 0.15mm-2mm |
| Width | Max 1650mm |
| Color | Ral colors or based on requirements |
| Coating film | 20-60μm |
| Coating | PE, HDP, PVDF, etc |
| Alloy | 1100, 3003, 3004,3105,5052 etc |
| Warranty | 15-30 years based on surface coating |
| Package | Eye to wall, eye to sky, coils on wooden pallet |
Painted aluminum coil application
Thermal insulation aluminum coils are mainly used for thermal insulation decoration of outdoor projects and buildings.

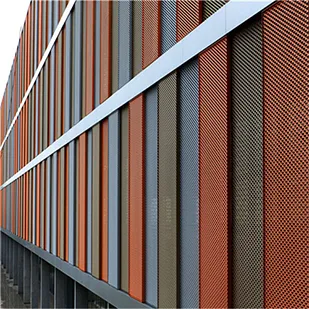

External wall insulation:
Insulated aluminum coils can be used as the protective layer of external wall insulation materials, which can effectively prevent external wall insulation materials from being damaged by the external environment and improve the insulation effect.

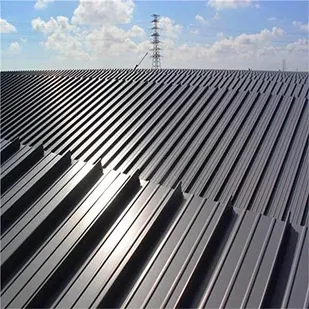

Roof insulation:
Insulated aluminum coils can be used as the protective layer of roof insulation materials, which can effectively prevent water and moisture, and enhance the insulation effect of the roof.

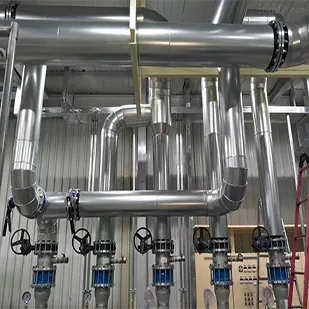

Pipeline insulation:
Insulated aluminum coils can be used as the coating layer of pipeline insulation materials, which can provide effective insulation and prevent pipelines from being eroded by the external environment.
Refrigeration insulation:
Insulated aluminum coils can be used as the insulation layer of refrigerated warehouses, cold storage and other refrigeration equipment, which can provide good insulation and reduce energy loss.
About Hanchen Metal
Shandong Hanchen Metal Co.,Ltd is a professional color coated aluminum manufacturer integrating production, sales and trade. We have professional two automatic production lines with four-roller coating equipment. The whole production process has strict quality control and inspection. Our main products are aluminum coils and prepainted aluminum coils,widely used in metal roofing, aluminum ceiling, aluminum composite panel, aluminum sandwich panel, aluminum honeycomb panel and so on. We are committed to providing customers with high-standard products and satisfactory services and highly efficient solutions
services we offer
High Efficient production
In order to cope with the growing market demand for color aluminum coils, Hanchen has added a new color coating production line. Different production lines are arranged according to the needs of different customers. While ensuring quality, production efficiency is also greatly improved, shortening delivery time
High Quality products
The quality of painted aluminum coils is not only determined by the basic properties of the substrate and coating, but also by the production process and operation control technology. Hanchen Metal will conduct quality control on the entire processing process and also conduct product quality inspections through a third party to ensure that the color-coated aluminum coils shipped are high-quality products.
High satisfaction service
Hanchen Metal always puts customers first and provides necessary services to customers.
We will arrange professionally trained sales to provide customers with pre-sales and after-sales services, who will answer or solve questions as soon as possible and provide customized roof solutions according to customer requirements
Our Package &Storage
The packaging methods of thermal insulation aluminum coils are generally divided into two types, one is wooden pallet packaging and iron sheet packaging. Wooden pallet packaging is our common export packaging.We usually add a lining paper core to prevent the aluminum coil from deforming or bending due to extrusion. At the same time, in order to prevent moisture from entering and causing corrosion and discoloration of the aluminum coil, we use plastic cloth and kraft paper for protection and pack it tightly with thick paper s. After packaging, the packaged aluminum coil is placed on the wooden pallet to prevent it from getting damp.
Painted aluminum coils should be stored in a dry, ventilated, clean and tidy indoor environment. Avoid outdoor storage and storage in places prone to condensation and large temperature changes. The floor of the storage site should be flat, free of hard objects, and have sufficient load-bearing capacity. At the same time, there should be enough space for lifting equipment. Horizontal aluminum coils should be placed on rubber pads, brackets and other devices as much as possible, with the strap lock facing upwards. The placement should be arranged reasonably for easy access and to minimize unnecessary movement.
we are here for you
If you are interested in our painted aluminum coil,please contact us:
