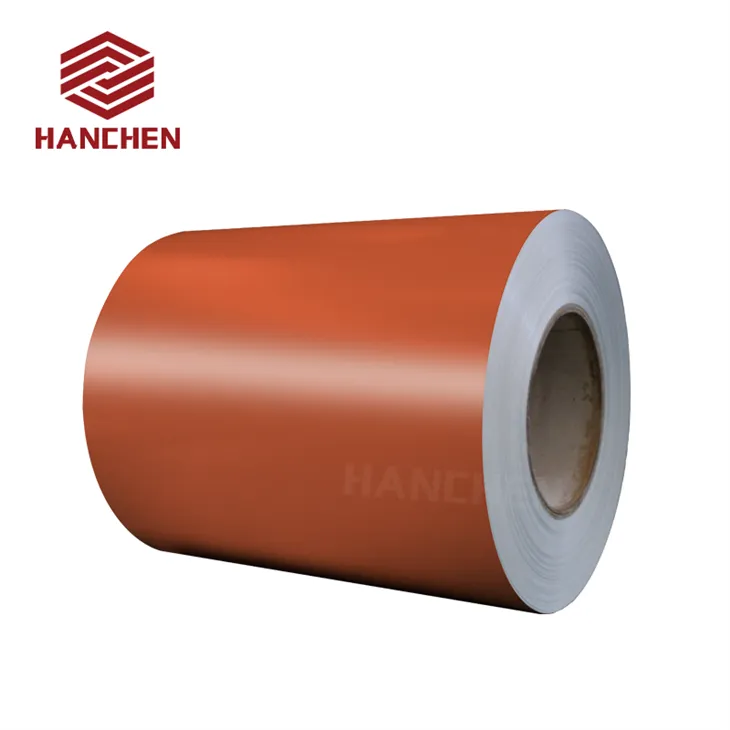

Productd Description for PVDF Painted Aluminum Coil
PVDF is a thermoplastic fluoropolymer with excellent chemical resistance, UV stability and weather resistance. It exhibits excellent durability even when exposed to harsh environmental conditions such as extreme temperatures or corrosive chemicals. These properties make PVDF coatings ideal for interior and exterior applications that require long-term protection. PVDF coatings have excellent adhesion and are often used as coatings for aluminum and are widely used in the construction industry.
PVDF Introduction
PVDF (Polyvinylidene Fluoride) refers to vinylidene fluoride (VDF) homopolymer or copolymer of VDF and other small amounts of fluorinated vinyl monomers. PVDF has a complex crystal structure, mainly composed of three crystal forms: α, β, and γ. The melting point ranges from 160℃ to 175℃, the initial thermal decomposition temperature is higher than 340℃, and the long-term use temperature range is -40℃ to 150℃.
PVDF Structure
PVDF fluorocarbon coating is a high-performance coating for outdoor building materials based on fluororesin. Fluororesin contains a large number of F-C bonds, and its bond energy is 105.4KJ/mol. Under the action of heat and light, F-C is difficult to break, has super long weather resistance and chemical corrosion resistance, and can protect buildings and decorative materials.
Only PVDF coatings with a fluorine content of ≥70% can achieve the best results
When the PVDF resin component reaches 70% in the system, the overall color is the best among all samples, and the color distribution is relatively uniform, without obvious uneven color distribution. When the PVDF resin component content is low (40-60%), the coating has poor air permeability during the curing process, and bubbles are difficult to discharge, resulting in surface wave defects such as shrinkage. In terms of film thickness testing, the coloring effect will become better and better as the PVDF resin content increases, and the coating bending performance will also be greatly improved.
Product performance of PVDF Painted aluminum coil
The stability and firmness of PVDF painted aluminum coil make its physical properties superior to general coatings. It has strong wear resistance and impact resistance. In addition, the fluorocarbon bonds on the fluororesin molecular chains in fluorocarbon coatings can resist the degradation of ultraviolet rays, and it has weather resistance and UV resistance in extremely harsh environments.
Corrosion resistance
PVDF coating has a stable chemical structure and excellent chemical corrosion resistance. It can resist the erosion of most acids, alkalis, salts and other chemical substances.
UV resistance
The covalent bonds of fluorinated organic compounds in PVDF coatings can prevent the entry of photons in the visible-ultraviolet light band that can destroy organic matter.
Superior Weather resistance
The PVDF coating provides outstanding resistance to harsh climates, including high humidity, heavy rain, salt spray, and strong UV radiation. Ideal for long-term outdoor applications.
Technical Parameters
| Thickness | 0.15mm-2mm |
| Width | Max 1650mm |
| Color | Ral colors or based on requirements |
| Coating film | 20-60μm |
| Coating | PE, HDP, PVDF, etc |
| Alloy | 1100, 3003, 3004,3105,5052 etc |
| Warranty | 15-30 years based on surface coating |
| Package | Eye to wall, eye to sky, coils on wooden pallet |
How to maximize the advantages of PVDF coating on colored aluminum coil?
The excellent wear resistance, weather resistance and impact resistance of PVDF Painted aluminum coils are not only affected by the composition and quality of the coating itself, but also by the primer selection and production process of the aluminum coils. Therefore, it is necessary to select a primer with good performance and strictly control the production process.
Primer requirements
PVDF coating with fluorocarbon resin as the main film-forming substance is an anti-corrosion coating product with excellent performance in all aspects. It cannot have good adhesion when used alone, especially in heavy anti-corrosion construction. It needs to be matched with special primer and intermediate paint to obtain excellent anti-corrosion coating effect.
When choosing the primer for PVDF coating painted aluminum coil, need to meet the following requirements:
Solvent resistance: The primer of colored aluminum coil should have good solvent resistance and resist the strong solvents in fluorocarbon coatings without being dissolved.
Strong adhesion: The primer of color coated aluminum coilis required to have very good adhesion to the substrate, the paint film does not fall off, and the adhesion is firm.
Cathodic protection: The selected primer should have cathodic protection and chemical corrosion resistance properties.
Convenient construction: The selected primer for painted aluminum coil is required to have good construction properties and can be applied thickly.
Anti-corrosion and anti-rust:The selected primer for colored aluminum requires excellent anti-corrosion performance and excellent protection characteristics
Mechanical properties: The mechanical properties of the selected primer should meet the standards, and the flexibility, hardness and impact strength should meet the standards.

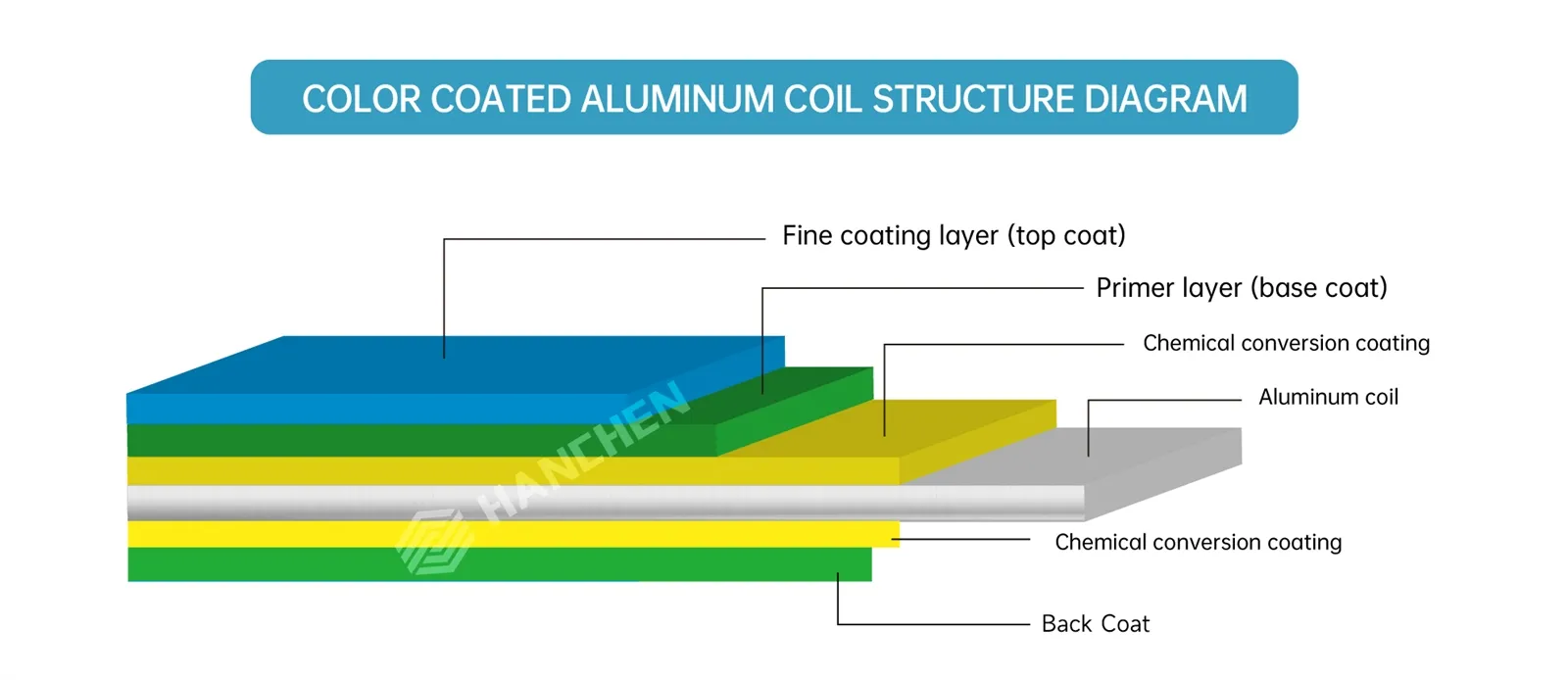

Thickness of Coating Film
Primer
Primer applied to the surface of painted aluminum coils, generally coating thickness is 5-15um EPOXY and PVDF are selected for matching coating.
Topcoat
Fluorocarbon paint topcoat adopts roller coating process, recommended film thickness is 20-25um and the coating is required to be smooth and flat without defects( such as bubbles and orange peel.)
Production Processing of PVDF Painted aluminum Coil
The various excellent properties of PVDF coatings can only be fully exerted through strict quality control of the entire production process.
Pre-treatment
Before painting, the aluminum coil must be thoroughly cleaned and treated with a conversion film. The final conversion film will enhance the corrosion resistance and adhesion of the aluminum coil.
Coating process
The Coating process should formulate the main process parameters such as processing temperature and humidity, solvent type, ratio, curing temperature, etc. according to the coating color and film thickness of the painted aluminum coils to be supplied.
Why choose Hanchen PVDF Painted aluminum coil?
Shandong Hanchen Metal Co.,Ltd is a professional color coated aluminum manufacturer integrating production, sales and trade. We have professional two automatic production lines with four-roller coating equipment. The whole production process has strict quality control and inspection. Our main products are aluminum coils and prepainted aluminum coils,widely used in metal roofing, aluminum ceiling, aluminum composite panel, aluminum sandwich panel, aluminum honeycomb panel and so on. We are committed to providing customers with high-standard products and satisfactory services and highly efficient solutions.
-
In the microstructure of PVDF/acrylic resin mixture, the ratio of PVDF and acrylic resin used is very sensitive. When the PVDF content drops below 70%, the crystallinity of the PVDF mixture decreases significantly.
Hanchen's PVDF coating fluorine resin content ≥ 70%, high crystallinity, large elongation at break, high gloss retention
-
Over 100+ color for option, and accept customized colors or patterns
-
Shandong Hanchen PVDF coatings are supplied by Akzo Nobel paints. The coatings use patented formulas, Kynar500®, Hynar500®, and inorganic ceramic pigments. Each new raw material must be proven by ten years of exposure in Florida before commercial use, so that the product quality is reliably guaranteed. We provide a 30-year coating quality guarantee, guaranteeing that the coating surface will not peel, crack, or crack within 30 years.
Professional Coating
We have professional four-roller coating equipment and two automatic production lines, which greatly improve production efficiency.
High Quality Product
We only select high-quality aluminum coils and conduct strict quality inspections before shipment to ensure product quality.
Stable Price
Hanchen Metal is a factory direct seller and will set prices based on the daily aluminum ingot prices. The prices are more reasonable, stable and cost-effective.
Perfect After-Sales
Whether before or after sales, we will respond to customers in a timely manner, answer questions and solve problems for customers in a timely manner.
