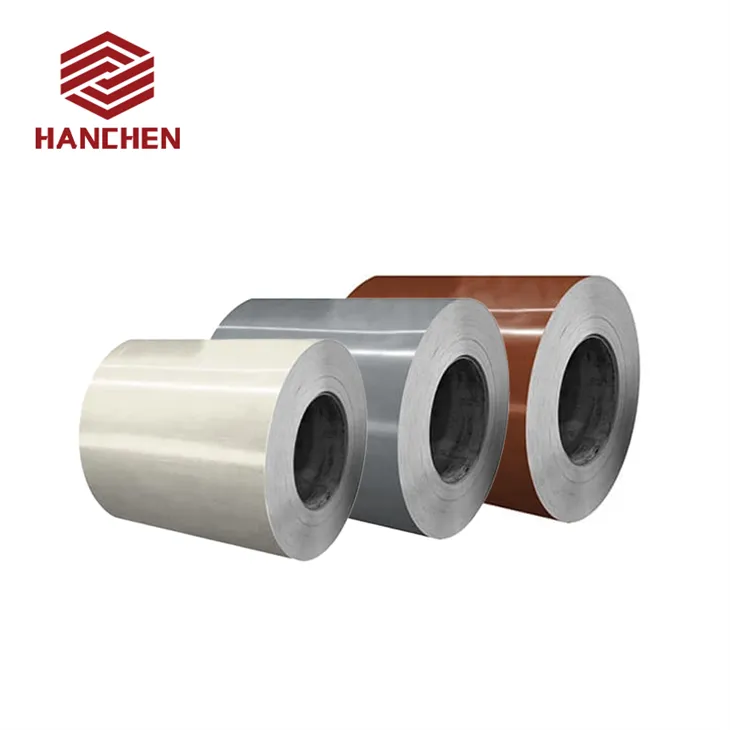

Products Description of Coated Aluminum Coil
Manufactured through advanced coating technologies such as roller coating, color coated aluminum coils offer uniform color, strong adhesion, and long-lasting performance even in harsh environments. Available in a wide range of colors, finishes (matte, glossy, metallic), and thicknesses, coated aluminum coils are ideal for applications like roofing, cladding, ceiling panels, and aluminum composite panels (ACP).

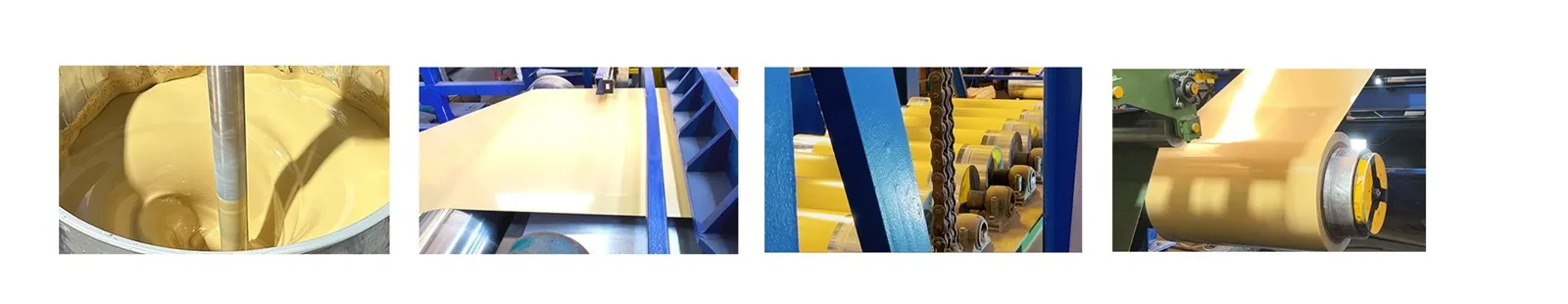

Products Process of Coated Aluminum Coil
The coating process is the most critical process in the production of color-coated aluminum coils, which directly affects the quality of coated aluminum coils and the durability of the coating. The role of each process is indispensable.
Uncoil
This role of this process is to detect whether there are defects on the surface of the aluminum coil and cut off the defective sheets to ensure the flatness and smoothness of the coated aluminum coil

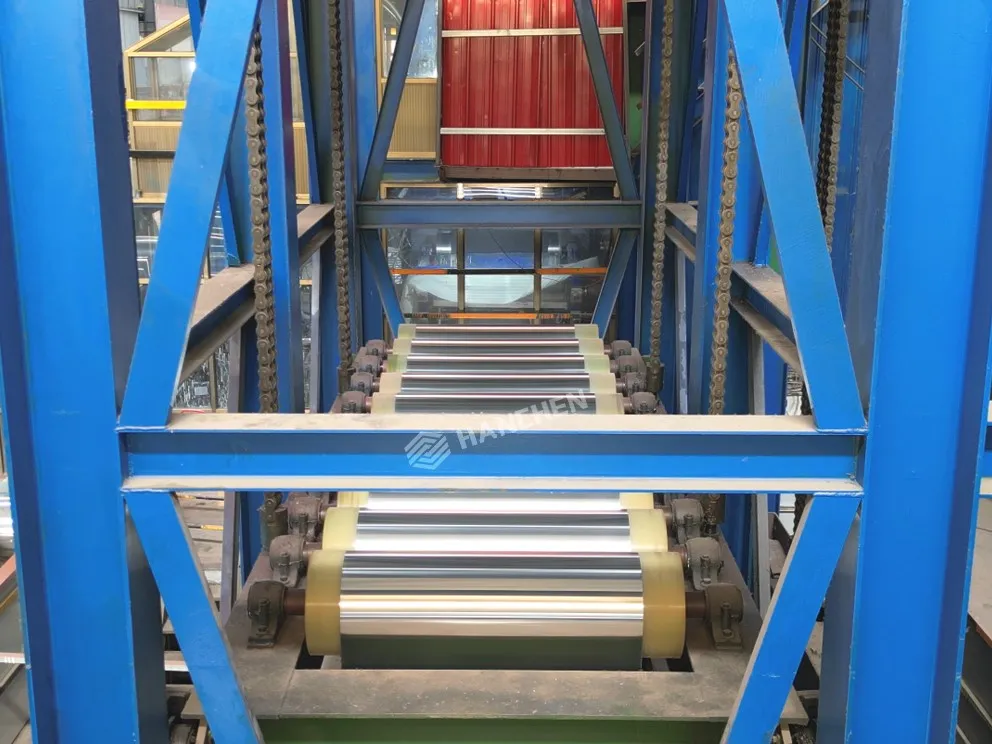

Entry Looper
The entry looper can accumulate aluminum coils. When the next aluminum coil needs to be painted, it will be stitched between the two aluminum coils and the production line does not need to be stopped
Pre-treatment
Before coating, aluminum coils need to be cleaned with alkali to remove surface impurities, then repeatedly sprayed with fresh water to remove chemicals and then coated with passivation liquid to enhance the adhesion of the coating.

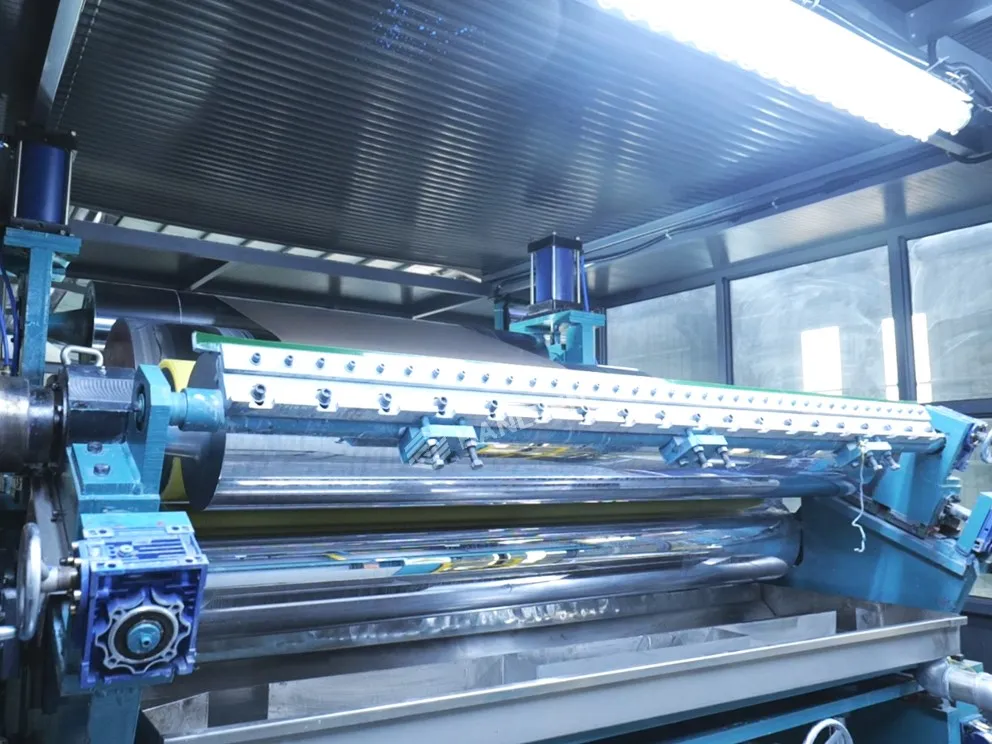

Primer Coating
The uniformity of primer coating directly affects the adhesion of the coating. Primer coating is commonly used PE coating. HDP and PVDF coating can also be selected according to customer needs.

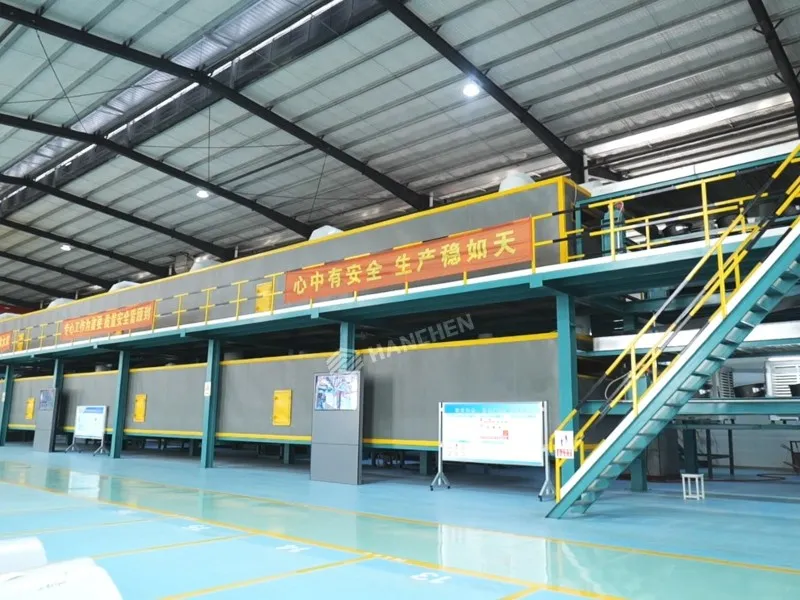

Oven Baking
The curing temperature is set according to the coating thickness of the color coated aluminum coil, generally set at 190â-230â. It is worth noting that during curing, technicians need to observe the curing of the aluminum coil in real time and adjust it in time
Top Coating
Customers choose coating type and coating thickness based on the application project and environment of colored aluminum coils. PE coating thickness ≥18um, HDP coating thickness ≥20um, PVDF coating thickness ≥25um

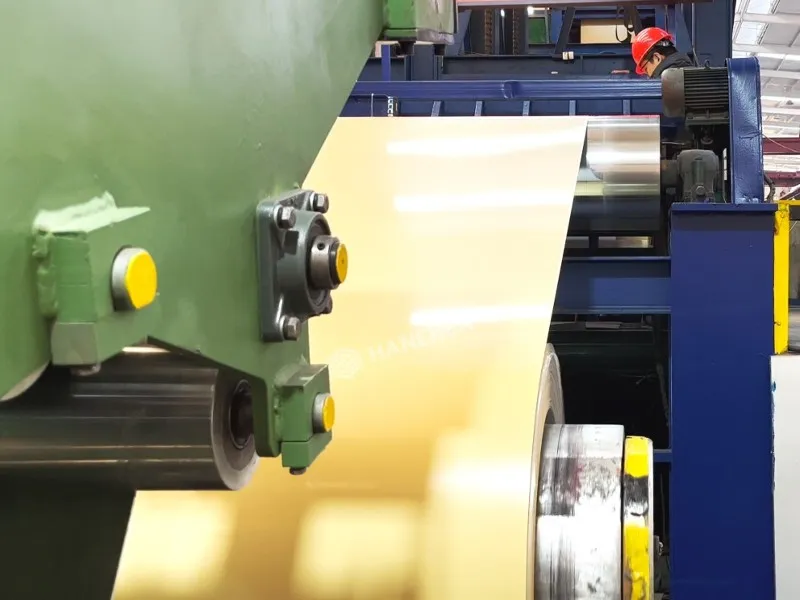

Exit Looper
When the operator packs the finished color coated aluminum coil, only the exit part will stop, leaving enough time for the operator to pack and ensure the continuous operation of the production line.
Recoil
Before recoiling, it is necessary to confirm that the surface of the color coated aluminum coil has no defects, the color is consistent with the customer sample and the color difference is within the standard range to ensure that each color coated aluminum coil meets customer requirements.
Our Factory Advantage of Coated Aluminum coil
Advanced Production Technology
Our factory is equipped with modern continuous coating and roller coating lines, ensuring consistent color, smooth finishes, and excellent coating adhesion. With precise control over temperature, coating thickness, and drying time, we produce colored aluminum that meets international standards for durability and appearance.
Wide Range of Customization
At Hanchen Metal, we offer a full spectrum of colors, textures, and finishes for different coated aluminum coils -from glossy and matte to metallic and wood grain effects.
Strong Production Capacity
Our high-capacity production lines can process thousands of tons per month, ensuring stable supply even during peak demand. This scalability makes us ideal for large-scale projects with tight timelines.
Fast and On-Time Delivery
With an efficient production system and close coordination with logistics partners, we provide short lead times and on-time delivery. Our well-organized supply chain ensures customers receive their aluminum coils quickly-whether for domestic use or international export.
Excellent Weather Resistance and Durability
Using premium coatings and top-grade aluminum substrate, our colored aluminum products offer:
UV resistance
Corrosion protection
Color retention for 10–20+ years (PVDF)
Scratch and abrasion resistance
Customization Service of Coated Aluminum Coil
Color customization
We can customize personalized color coating colors and patterns that matches customer needs based on the color cards, or customer's samples or color standards or architectural requirements and make samples for confirmation with customers before production, ensureing the color consistency of color coated aluminum

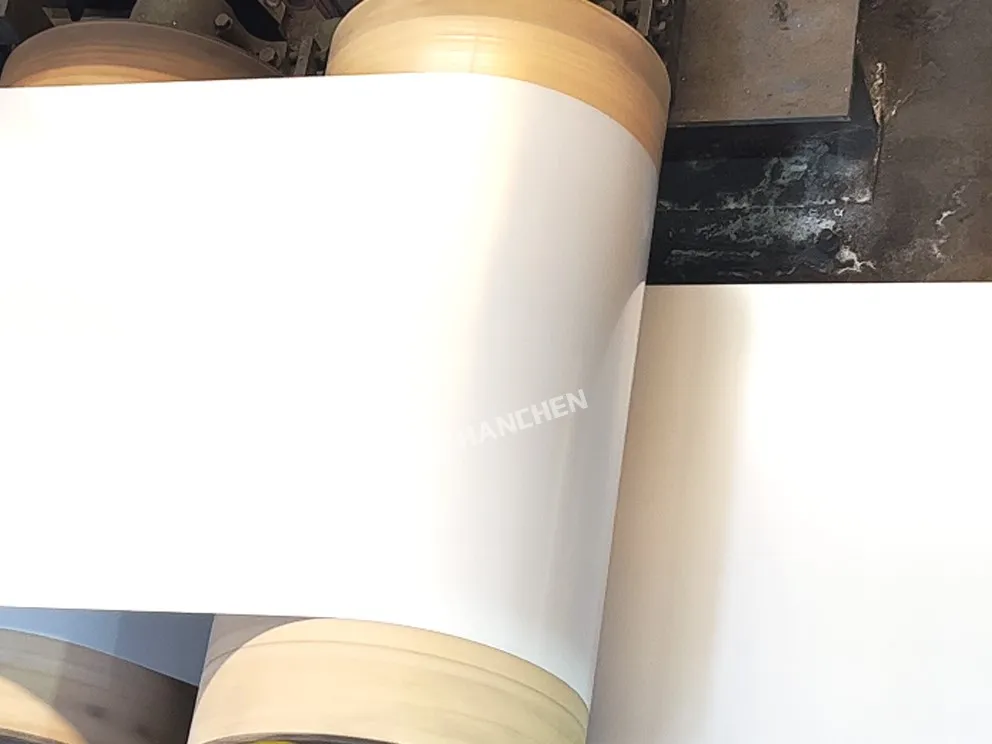

Specification customization
The common thickness of aluminum coil is 0.2-2.0mm and the width is 1000-1300mm. We can customize different thickness, width and length according to customer application requirements. If customers need it, we can also provide slitting and strip cutting services.

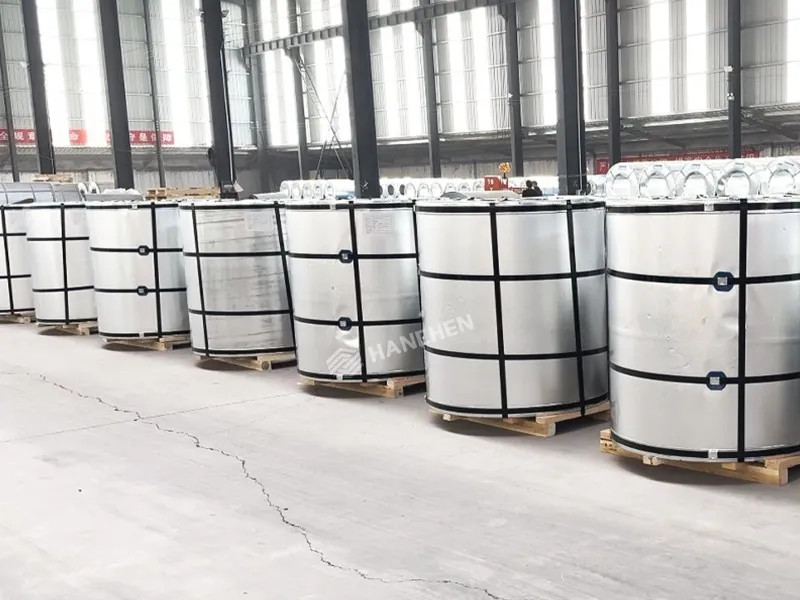

Packaging customization
We can customize the protective film according to the picture provided by the customer and print specific patterns or logos such as company logo, product model, etc. on the color coated aluminum coil packaging according to customer requirements.
Coated Aluminum Coil Specification
In addition to standard specifications, we can provide customers with customized services to match their unique requirements
|
Thickness |
0.15mm-2mm |
|
Width |
Max 1650mm,support customer customization |
|
Coating thickness |
≥18 microns (PE), ≥25 microns (PVDF),or as customer request |
|
Color |
RAL color card or customization as customer sample color |
|
Glossiness |
10-90% |
|
Coating |
PVDF / HDP/PE |
|
Coil inter diameter |
405mm, 505mm, 605mm |
|
Package |
Eye to wall,Eye to sky |
|
Warranty |
8-10 years for PE coating, 20-25 years for PVDF coating. |

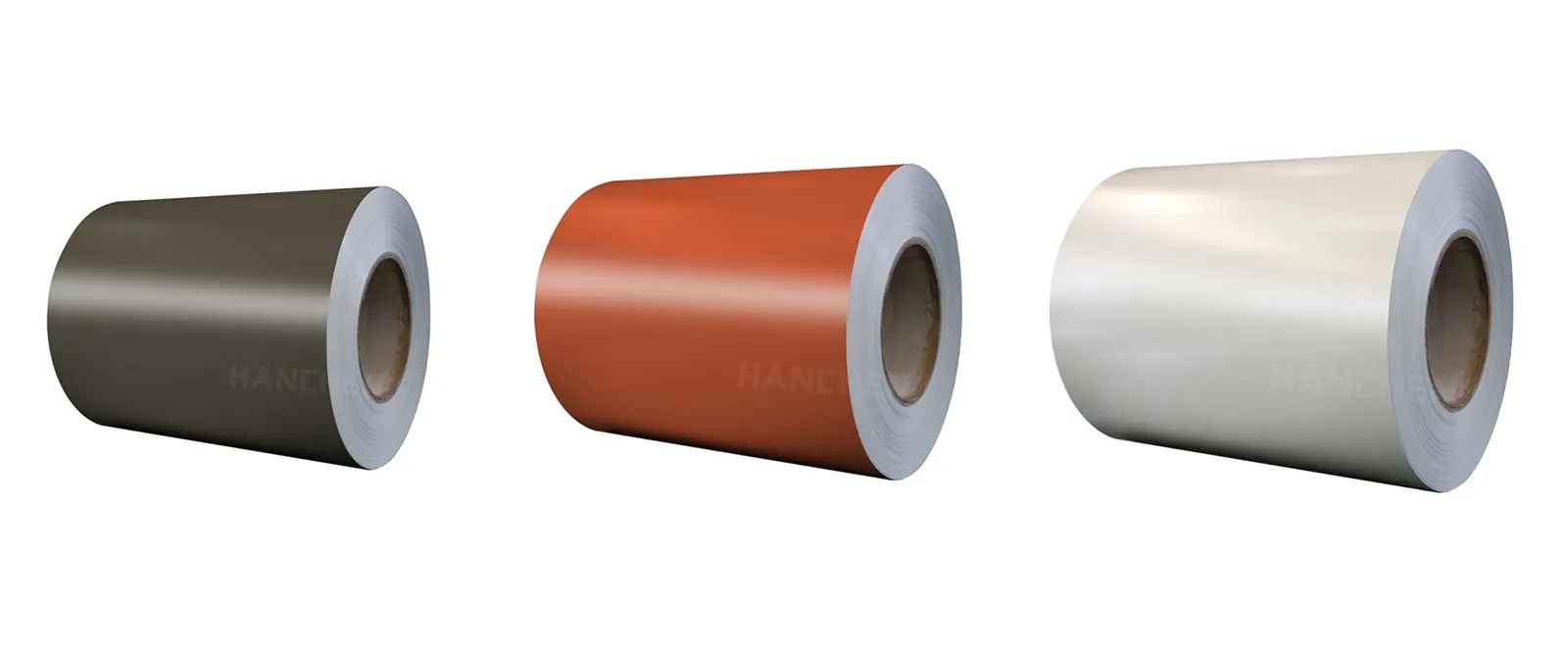

Our coated Aluminum Coil
Hanchen colored aluminum coil with a combination of 100+ colours and prints, matching your aesthetics needs .
Our coated aluminum Coil packaging
Common packaging methodsï¼Eye to wall, Eye to sky
Welcome to Inquire
Please submit your detailed requirements,we will quote to you as soos as possible.
