Products Description

Advantages and featrue of Color Coated Aluminum Wall Panel:

Aluminum panel is most used wall cladding panel as it offers great benefits compared to other metals. When you are designing the facade of your building, it’s important to take these advantages into consideration.

Aluminum is a very light weight metal, it make project construction cost low.

Aluminum weighs is only about the third of the weight of steel. On average it weighs around 2,7g/cm3. This is a main reason many architects consider using aluminum instead of others metal panel when design cladding system.

Thereof lightweight and easy to install, which makes it an ideal choice for use in high-rise buildings where it can be easily transported and installed. It is also available in a variety of colors, textures, and finishes, which means that it can be easily customized to meet the needs of different building projects.

One of the key benefits is their durability. The polyester or PVDF paint coating on the panel provides long-lasting protection against the elements, ensuring that the building's exterior remains looking new and fresh for many years. Additionally, the aluminum alloy material is inherently strong, making it resistant to chipping, cracking, and other forms of damage.

In terms of sustainability, coated aluminum alloy wall panels are an environmentally friendly option. The material is 100% recyclable, which means that it can be reused at the end of its life cycle to create new products. Additionally, the polyester or PVDF paint coating is free of volatile organic compounds (VOCs), which reduces the environmental impact of the manufacturing process.

Overall, coated aluminum alloy wall panels are a versatile and durable building material that offers a range of benefits for architects, builders, and building owners. From its customizable design options to its long-lasting durability, this type of wall panel is an excellent choice for a wide range of building projects, including commercial, residential, and industrial applications.

202305301313579bd7109bdcdb4dfcbf72caa6b1dc8835

High vertical edge: 65-430, 65-420, 65-400, 65-330, 65-300 type, this type of tile is suitable for large area, relatively flat roof, higher standing edge can be better waterproof, no need Horizontal overlapping panels, the sealing effect is very good after the panels are installed. . The large span is also more beautiful.Suitable for single-slope, double-slope, or curved roofs.

Aluminum is a very light weight metal, it make project construction cost low.Aluminum weighs is only about the third of the weight of steel. On average it weighs around 2,7g/cm3. This is a main reason many architects consider using aluminum instead of others metal panel when design cladding system.

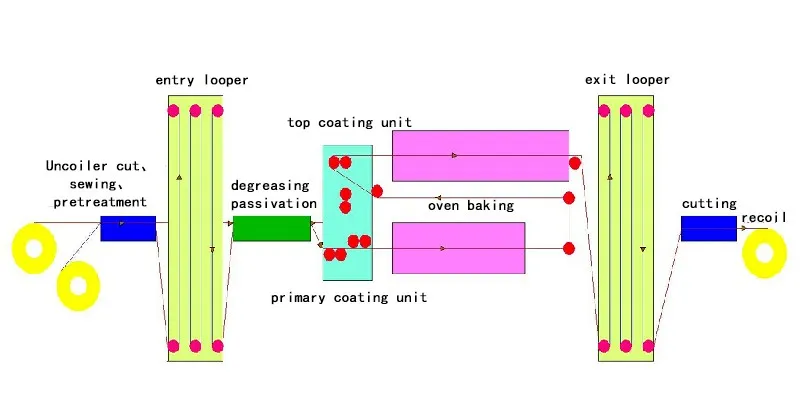

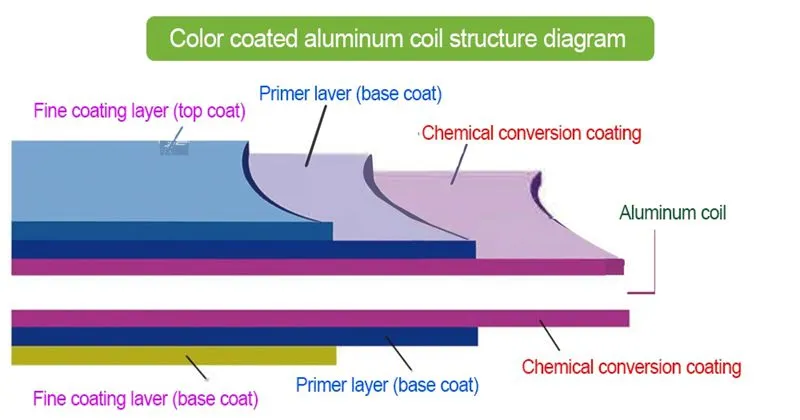

Products parameters

PE Aluminium sheet
Single Color Coated Aluminum Alloy Metal Roof Panels Parameter
Painting coating	Top:15~18μm Back:5μm
Color	According to customer request
Glossiness	Standard: 35+1-5
Cross-cut adhesion	The paint film does not fall off
T-bend test	3T- the paint film does not fall off
Reverse impact	9J -the paint film does not fall off
MEK test	Butanone MEK wiped back and forth 100 times without damage to the paint film
Heat and humidity resistance	Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness
Acid and alkali resistance	Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance
Neutral salt spray resistance	Neutral salt spray test for 1000 hours
UV lamp accelerated aging test	OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.

PVDF Aluminium sheet
Parameter
Painting coating	Top:20μm Back:5μm
Color	According to customer request
Glossiness	Standard: 25+1-5
Cross-cut adhesion	The paint film does not fall off
T-bend test	1T- the paint film does not fall off
Reverse impact	9J -the paint film does not fall off
MEK test	Butanone MEK wiped back and forth 100 times without damage to the paint film
Heat and humidity resistance	Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness
Acid and alkali resistance	Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance
Neutral salt spray resistance	Neutral salt spray test for 1000 hours
UV lamp accelerated aging test	OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.
