Products Description Of Colored Aluminum Coil
3004 Colored Aluminum Coil is a high-performance metal material made of 3004 aluminum-magnesium-manganese alloy as the base material and through surface color coating (such as fluorocarbon paint or polyester coating). It is lightweight, corrosion-resistant, high-strength and beautiful, and is widely used in construction, transportation, packaging and other fields. It is an ideal substitute for traditional color steel and galvanized aluminum coils.
The main components of 3004 colored aluminum coil are aluminum, manganese and magnesium, of which the content of manganese is 0.8-1.3% and the content of magnesium is 0.8-1.3%. It has strong corrosion resistance and flexibility, which makes 3004 have good plasticity during cold processing and significantly improves the tensile strength compared with 3003.
The mechanical properties of 3004 aluminum sheet are tensile strength σb (MPa): 150~285, elongation δ10 (%): 1~16.
Product display
chemical component(%)
| Grade | Si (%) | Fe (%) | Cu (%) | Mn (%) | Mg (%) | Cr (%) | Zn (%) | Other | Total (%) | Al (%) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | / | 0.25 | / | 0.15 | Remainder |
Mechanical Property Limits
| Alloy | Temper | Thickness (mm) |
Tensile Strength Rm/MPa |
Elongation after break (%) A50mm |
| 3004 | H12 | >0.20ï½0.50 | 190~240 | 2 |
| >0.50ï½1.50 | 190~240 | 3 | ||
| >1.50ï½1.80 | 190~240 | 4 | ||
| H22 | >0.20ï½0.50 | 190~240 | 4 | |
| >0.50ï½1.50 | 190~240 | 5 | ||
| >1.50ï½1.80 | 190~240 | 6 | ||
| H14 | >0.20ï½0.50 | 220~265 | 1 | |
| >0.50ï½1.50 | 220~265 | 2 | ||
| >1.50ï½1.80 | 220~265 | 2 | ||
| H24 | >0.20ï½0.50 | 220~265 | 3 | |
| >0.50ï½1.50 | 220~265 | 4 | ||
| >1.50ï½1.80 | 220~265 | 4 | ||
| H16 | >0.20ï½0.50 | 240-~285 | 1 | |
| >0.50ï½1.50 | 240-~285 | 1 | ||
| >1.50ï½1.80 | 240-~285 | 2 | ||
| H26 | >0.20ï½0.50 | 240-~285 | 3 | |
| >0.50ï½1.50 | 240-~285 | 3 | ||
| >1.50ï½1.80 | 240-~285 | 3 | ||
| H18 | >0.20ï½0.50 | 260 | 1 | |
| >0.50ï½1.50 | 260 | 1 | ||
| >1.50ï½1.80 | 260 | 2 |
Technical Parameters
| Thickness(mm) | 0.15-2mm |
| Width(mm) | Max1600mm |
| Surface | Coating, Brushed,Mirror,Embossed, Sandblasted,etc |
| Coating | PE,HDP,PVDF |
| Temper | H12,H22,H14,H24,H16,H26,H18 |
| Type | Coil/Sheet |
Why Choos HanChen?
Factory Direct Supply

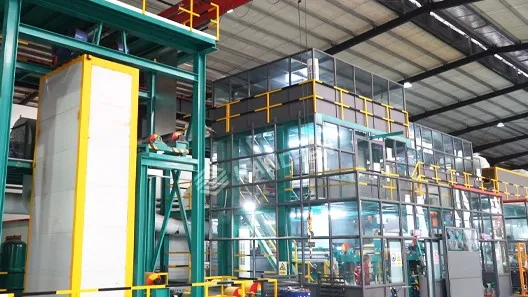

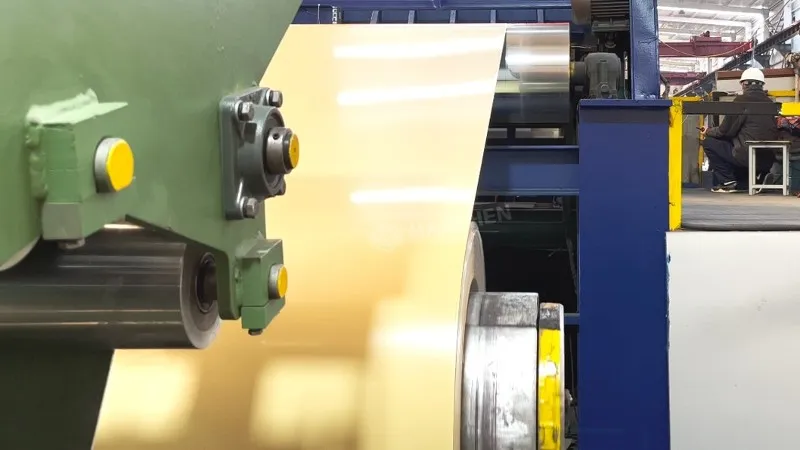

We have professional four-roller coating equipment and two automatic production lines, which greatly improve production efficiency, ensure production quality, save manpower and production costs, and make pricing more reasonable.

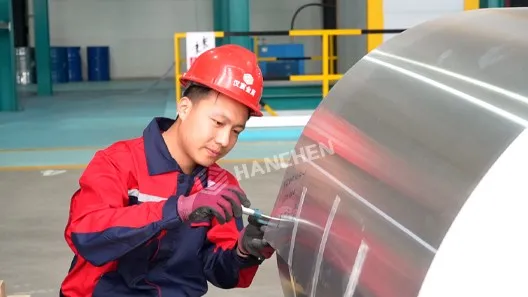

Strict Quality Control
Our factory equipped with strict quality control and inspecting systems and also conduct inspecting through third-party inspecting agencies, such as QIMA. We are committed to providing customers with high-standard color coated aluminum coils.

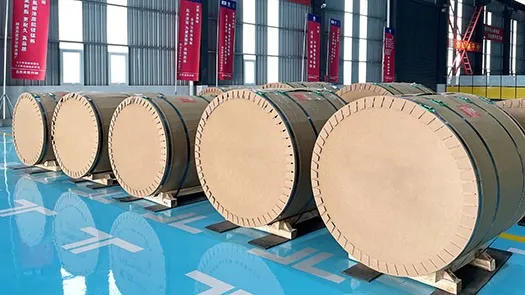

Supply Capabilities
Our annual output of color aluminum coils is 300,000MT, which can be supplied to multiple major customers at the same time within a short delivery period while ensuring product quality.
One-Stop Services
We will arrange professionally trained sales to provide customers with pre-sales and after-sales services, who will answer or solve questions as soon as possible and provide customized colored aluminum coil according to customer requirements.

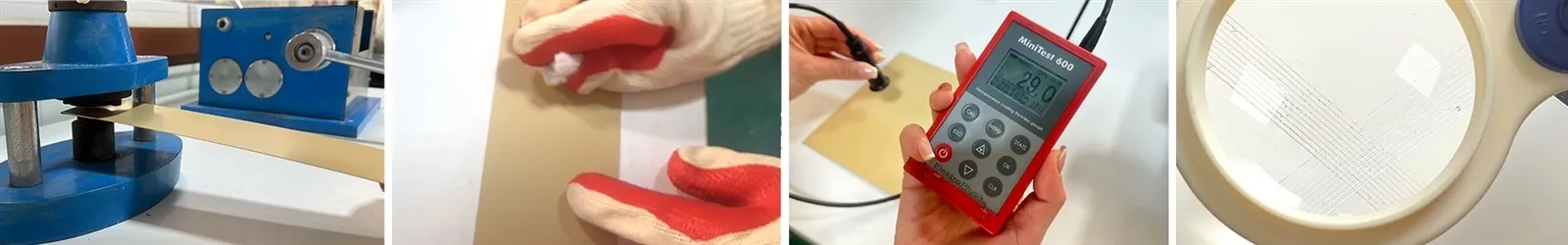

Quality inspection & Certifications
we are here for you
If you are interested in our colored aluminum coil,please contact us:
