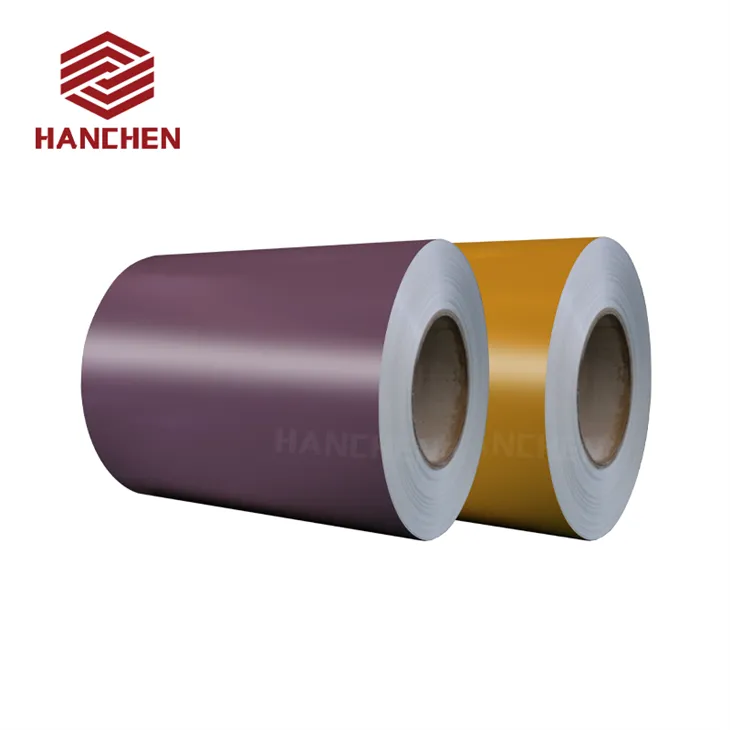

Products Description for 1100 colored Aluminum coil
1100 colored aluminum coil is the alloy aluminum with the highest aluminum content in the 1 series, with an aluminum content of at least 99.0%. Compared with other series, it has excellet ductility, formability, weldability and corrosion resistance, but 1100 has low strength and can only be strengthened by cold treatment is widely in condenser, radiator, evaporator, heat shield, deep drawn applications, spinning, fan blades, nameplates and sheet metal work
Products Technical Parameters
| Thickness(mm) | 0.15-2mm |
| Width(mm) | Max1600mm |
| Surface | Brushed,Mirror,Embossed, Sandblasted,etc |
| Type | Coil/Sheet |
| Package | Standard export package |
Chemical Composition
| 1100 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Other | AI |
| 0.35-0.5 | 0.25-0.35 | 0.01-0.03 | 0.01-0.05 | 0.05-0.20 | 0.01-0.05 | 0.02-0.03 | 0.05 | ＞99.0% |
Mechanical Property Limits
| Alloy | Temper | Thickness (mm) |
Tensile Strength Rm/MPa |
Elongation after break (%) A50mm |
| 1100 | H12 | >0.20～0.50 | 95~130 | 3 |
| >0.50～1.50 | 95~130 | 5 | ||
| >1.50～1.80 | 95~130 | 8 | ||
| H22 | >0.20～0.50 | 95~130 | 3 | |
| >0.50～1.50 | 95~130 | 5 | ||
| >1.50～1.80 | 95~130 | 8 | ||
| H14 | >0.20～0.30 | 110~145 | 1 | |
| >0.30～0.50 | 110~145 | 2 | ||
| >0.50～1.50 | 110~145 | 3 | ||
| >1.50～1.80 | 110~145 | 5 | ||
| H24 | >0.20～0.30 | 110~145 | 1 | |
| >0.30～0.50 | 110~145 | 2 | ||
| >0.50～1.50 | 110~145 | 3 | ||
| >1.50～1.80 | 110~145 | 5 | ||
| H16 | >0.20～0.30 | 130-~165 | 1 | |
| >0.30～0.50 | 130-~165 | 2 | ||
| >0.50～1.50 | 130-~165 | 3 | ||
| >1.50～1.80 | 130-~165 | 4 | ||
| H26 | >0.20～0.30 | 130-~165 | 1 | |
| >0.30～0.50 | 130-~165 | 2 | ||
| >0.50～1.50 | 130-~165 | 3 | ||
| >1.50～1.80 | 130-~165 | 4 | ||
| H18 | >0.20～0.50 | 150 | 1 | |
| >0.50～1.50 | 150 | 2 | ||
| >1.50～1.80 | 150 | 4 |
Application of 1100 colored Aluminum coil
1100 color coated aluminum coil is a common aluminum alloy material with a wide range of applications. It plays an important role in the construction, electronics, automobile, aerospace and other industries.
Construction industry
1100 color coated aluminum coil has the characteristics of light weight, corrosion resistance, and easy processing. It is widely used in 1100 aluminum strips. It can be used for building roofs, exterior wall cladding, aluminum alloy doors and windows, balcony railings and other building components.
Electronics industry
Electronics industry: 1100 colored aluminum coil has good conductivity and excellent heat dissipation performance. It can effectively protect the stable operation of electronic equipment and is widely used in electronic products such as mobile phones, computers, tablets and other equipment housings, heat sinks, etc.
Automobile industry
1100 color coated aluminum coil is light in weight and highly corrosion-resistant, which can improve the fuel economy and safety performance of automobiles. It is widely used in various parts in automobile manufacturing, such as body panels, doors, engine covers, etc.
Aerospace industry
1100 colored aluminum coil is widely used in the aerospace field, such as aircraft fuselage, wing surface, engine casing, etc. 1100 coated aluminum coil is light in weight and has excellent rigidity. It can be used in aircraft fuselage, wing surface, engine casing, reduce the weight of the aircraft, and improve flight efficiency.
Why choose Hanchen Metal?
Company Profile
Shandong Hanchen Metal Co.,Ltd is a professional color coated aluminum coil manufacturer integrating production, sales and trade. We have professional two automatic production lines with four-roller coating equipment. The whole production process has strict quality control and inspection. Our main products are aluminum coils and colored aluminum coils,widely used in metal roofing, aluminum ceiling, aluminum composite panel, aluminum sandwich panel, aluminum honeycomb panel and so on. We are committed to providing customers with high-standard products and satisfactory services and highly efficient solutions.
ADVANTAGE 01
FACTORY DIRECT SUPLY
ADVANTAGE 02
HIGH COST EFFECTIVE
ADVANTAGE 03
STRICT QUALITY CONTROL
ADVANTAGE 04
CUSTOMIZED SOLUTIONS
ADVANTAGE 05
ONE-STOP SERVICE
ADVANTAGE 06
SWIFT DELIVERY
Our Processing line
Packaging
The Common Packaging type of color coated aluminum coil is eye to wall and eye to sky
