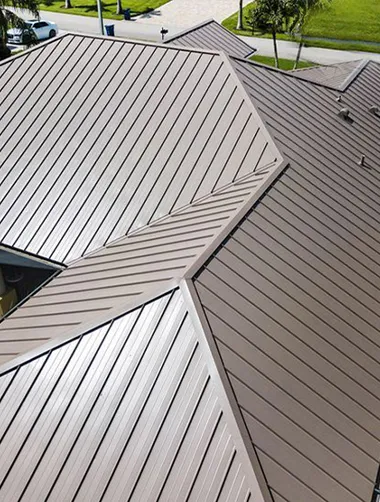

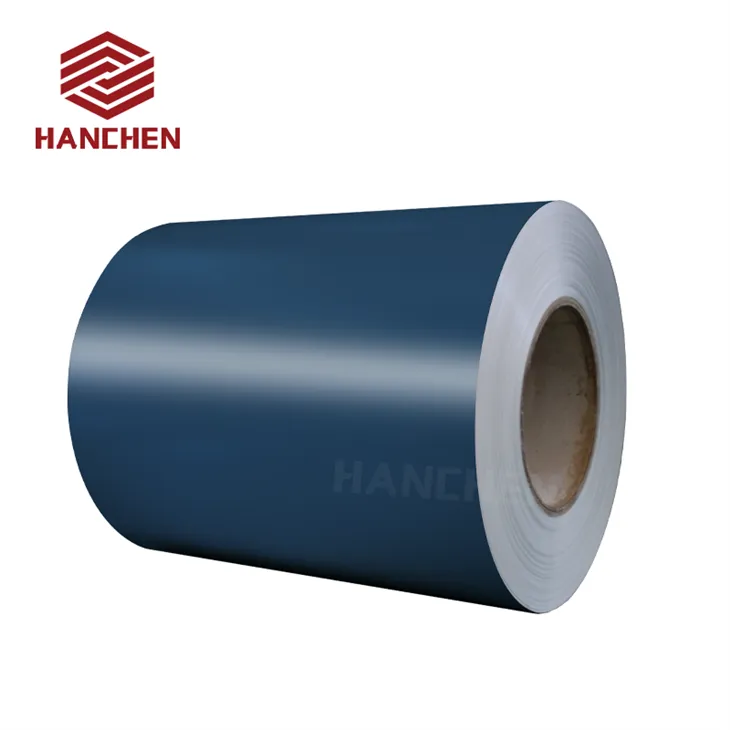

Color Coating Aluminum Coils For Roofing System

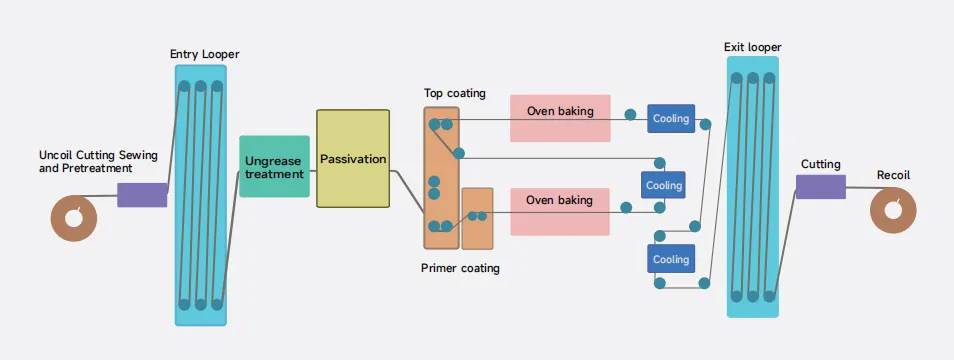

Step 1: Coil Preparation

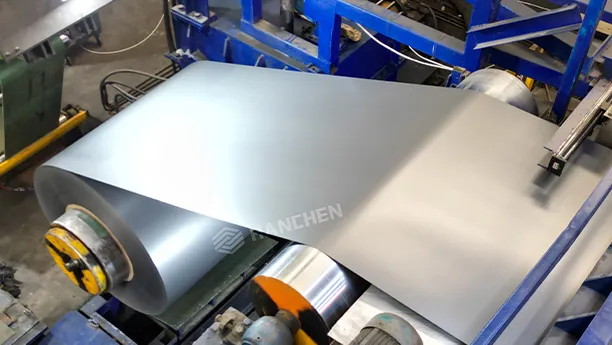

The first step in the production process of Color coating aluminum coils is to prepare the coil. The coil is first unwound and cleaned with chemicals to remove any impurities or contaminants. Once cleaned, the coil is then chemically treated to increase its adhesion and corrosion resistance.

Step 2: Primer Application
After the coil preparation process is complete, the primer is applied to the aluminum coil. The primer plays a critical role in ensuring good adhesion between the aluminum substrate and the topcoat. It also helps to protect the coil from rust and corrosion. The most commonly used primer for Color coating aluminum coil is epoxy, due to its excellent adhesion properties.

Step 3: Paint Selection and Application
Once the primer has been applied, the next step is to select the paint for the coating. Commonly used paints for Color coating aluminum coils include polyester, polyurethane, and fluorocarbon.
Once the paint has been selected, it is applied to the coil using a variety of methods, including roller coating and spray coating. The thickness of the coating film is typically between 20 to 30 microns.

Step 4: Curing and Inspection
After the paint has been applied, the coil is cured at high temperatures to ensure that the paint fully binds to the aluminum substrate. After curing, the coil is inspected to ensure that it meets the desired quality standards. The inspection process includes checking the coating thickness, color consistency, and gloss level.
