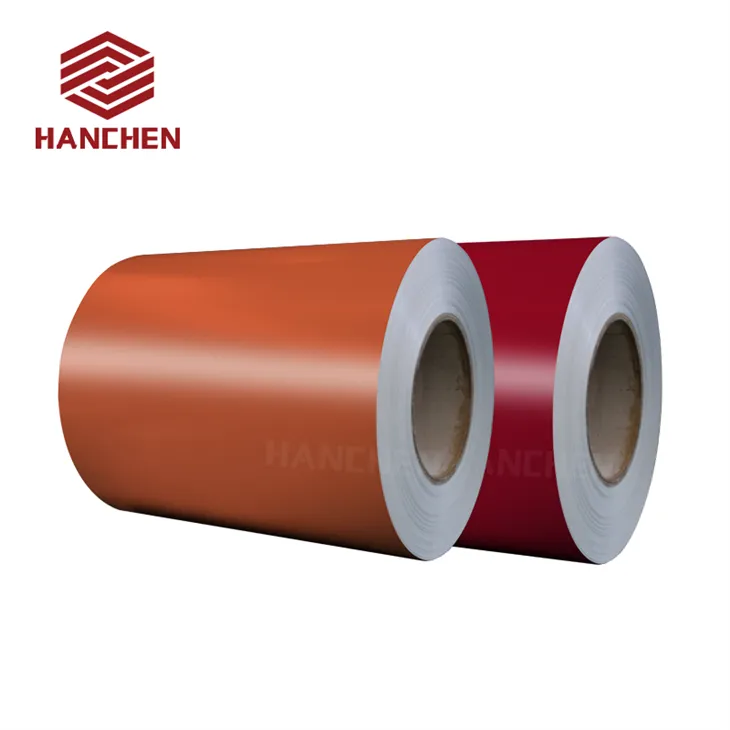

Products Description
Color coated aluminum alloy coils are made by washing, chroming, roller coating, baking and applying the paint coating of various colors.on the surface of the aluminum coils.It have the advantages of light texture, bright colors, easy processing and molding, excellent corrosion resistance and weather resistance, etc., are widely used in aluminum ceilings, honeycomb panels, sandwich panels, aluminum composite panels, roofing systems, etc.Prepainted aluminum coils with different materials, thicknesses and coatings have different applications.
Different Aluminum Material
Color coated aluminum alloy coils are made of aluminum alloy. Different aluminum alloy elements (copper, magnesium, zinc, silicon, etc.) have different effects on the performance of color coated aluminum coils. According to the proportion of different alloy elements, they are divided into 1000-8000 series.
| Alloying element | Content% | Compound morphology | Alloy performance | |
| Mg | 0.8-1.3 | Mg2Si,Al3Mg2 | Enables alloys to be strengthened by heat treatment | |
| Cu | 1.0-5.0 | CuAl2 | Improve alloy strength | |
| Ti | 0.1-0.3 | Al3Ti | Improving mechanical properties | |
| Mn | 1.0-1.5 | Al10Mn2Si | Strengthening corrosion resistance | |
| Zr | 0.1-0.4 | Al3Zr | Grain refinement | |
| Co | 0.5-1.0 | Al9Co2 | Improve heat resistance |
Aluminum series Type and Performance
In the construction industry, the aluminum alloy materials commonly used for color coated aluminum coils are 1000 series, 3000 series, and 5000 series.When choosing the material of coated aluminum coil, we should consider its application environment and purpose of use
| Series | Main alloying elements | Alloy Property | Application |
| 1000 series | -- | Good electrical conductivity, | used for scientific experiments,chemical industry and special purposes. |
| Good corrosion resistance, Good welding performance, | |||
| Low strength, | |||
| Cheap price | |||
| 3000 Series | Mn | Low strength, | Used for construction metal roofs,aircraft oil seamless pipes, cans, etc |
| Good corrosion resistance, | |||
| Good welding performance, and Good plasticity | |||
| 5000 series | Mg | High tensile strength, | Used for lightweight design and manufacturing |
| high elongation, and good welding performance |
Products Application
1000 series, 3000 series, and 5000 series painted aluminum coils have different applications because of the different alloy elements added and different performance.
1000 series(1050,1100,1060 aluminum alloy)
1000 series color coated aluminum coil, the content of aluminum more than 99.00% aluminum, It has good electrical conductivity, corrosion resistance and welding performance, but low strength and cannot be heat-treated and strengthened. 1000 series aluminum coil is suitable for building exterior wall cladding that requires good formability and high corrosion resistance but does not require high strength. Common applications are aluminum sheets for sandwich panels and honeycomb panels
3000 series(3003,3004,3105 aluminum alloy)
3000 series color coated aluminum alloy coil is a commonly used rust-proof aluminum. It uses manganese as the main alloying element with the content of 1.0-1.5% and has good formability, welding,corrosion resistance and its strength is higher than 1000 series. It is mainly used in ceiling and the roof panels of public buildings in harsh environments with high requirements for corrosion and rust resistance.

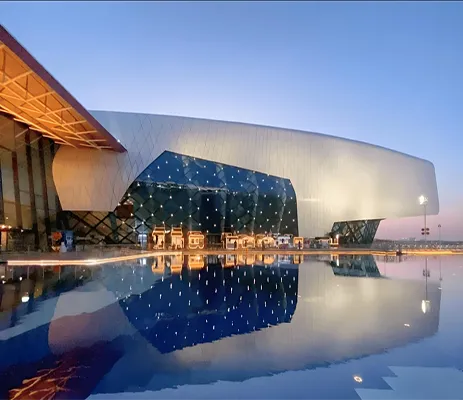

5000 series(5052 aluminum alloy)
The main alloying elements of 5000 series color coated aluminum alloy coil are Al-Mg, and the magnesium content is between 3-5%. It has high tensile strength, easy coloring, good heat dissipation, high elongation, excellent processing and forming performance, welding performance, etc. Its corrosion resistance and compression resistance are stronger than those of 3000 series. It is suitable for public building with very high requirements for corrosion resistance.
Different Painting Type: PVDF Coating and PE Coating
According to the type of coating and the surface effect of the coating, the commonly used coatings for painted aluminum coils can be divided into PE coating, HDP coating, PVDF coating, SMP coating, etc.The paints commonly used for our coated aluminum coil are PE and PVDF. The commonly used brands are AkzoNobel paint and Chinese well-known paint brands. Please check the following sheet for coating performance testing.
|
Paramater |
PVDF Coating Aluminum Coil |
PE Coating Aluminum Coil |
|
Painting coating |
Top-20μm,Back-5μm |
Top-20μm,Back-5μm |
|
Color |
According to customer request |
According to customer request |
|
Glossiness |
Standard: 25+1-5 |
Standard: 25+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
The paint film does not fall off |
|
T-bend test |
1T- the paint film does not fall off |
3T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |
|
Service life |
30years |
15years |
PE Coated Aluminum Coil Application
PE is suitable for indoor applications, temporary buildings and applications with good environment conditions

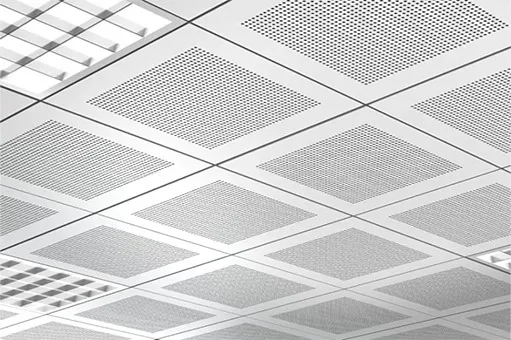

Indoor Ceiling
Materialï¼3003 PE coated aluminum coil

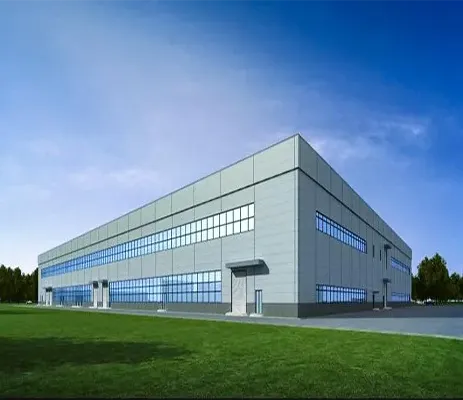

Workshop facade
Material:1100 PE coated aluminum coil Advantageï¼The requirements for the color aluminum coil coating on the exterior of the workshop are corrosion resistance, moisture resistance, and temperature resistance. PE coating can achieve the effect required by customers and the cost is lower than PVDF.

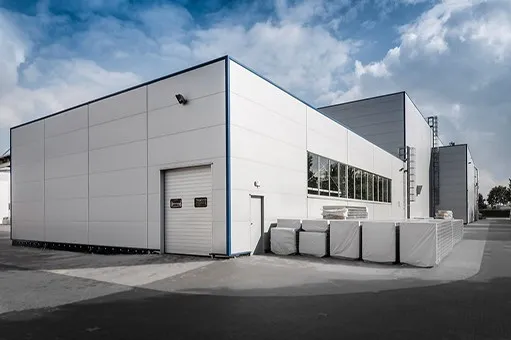

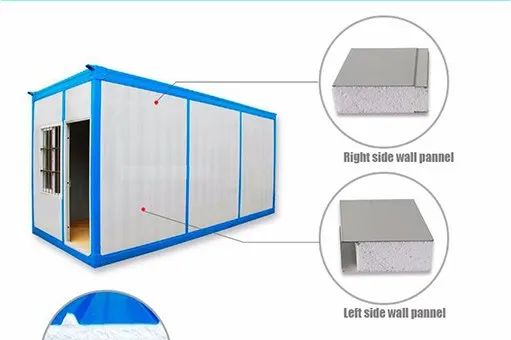

Temporary building
Material: 1060 PE coated aluminum coil
Advantageï¼The service life of temporary buildings is generally within 5 years, the construction period is short, and the materials used meet the use standards. PE coatings are generally used, which have superior performance and low cost.
PVDF Coated Aluminum Coil Application
PVDF is suited for harsh environment application where the coating may be exposed to harsh chemicals or strong light.

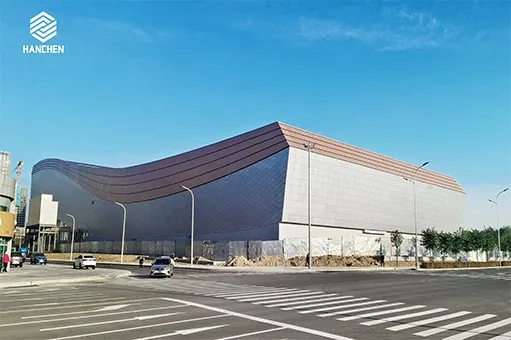

Ice and snow hall
Material: 3004 PVDF Coated Aluminum Coil
Reasonï¼The coating of color coated aluminum coils used for public buildings requires the PVDF coating that is highly weather-resistant, corrosion-resistant and has the long service life.

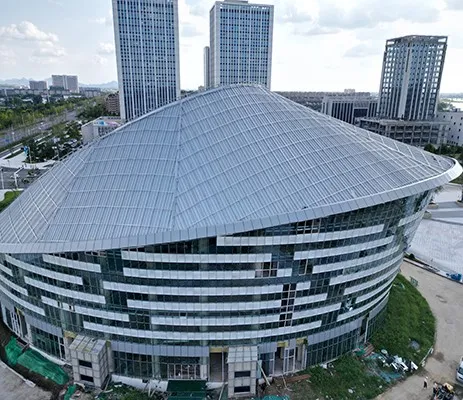

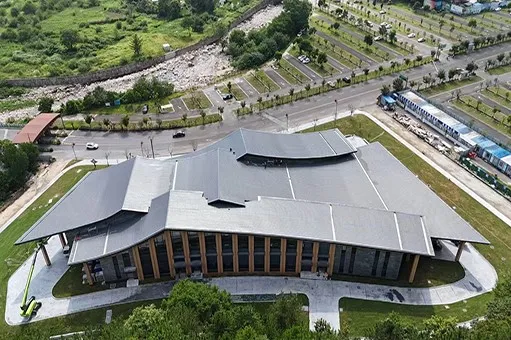

Roofing system
Material: 3004 PVDF Coated Aluminum Coil
Reasonï¼The color coated aluminum coil used in the roof system requires strong durability, strong paint adhesion, anti-bending and paint not easy to fall off.Therefore, PVDF coated aluminum coils are widely used in roof systems

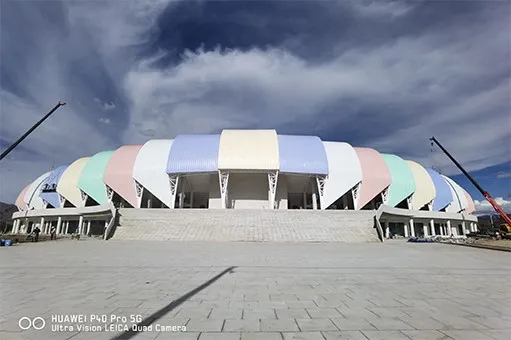

Gymnasium
Material: 3004 PVDF Coated Aluminum Coil
Reason: The Building with integrated facades and roof panels have high requirements for the materials and coatings of color coated aluminum coils. It need to be durable, have a long seivice life. This type of building widely uses PVDF coated aluminum coils as building materials.
Products Technical Parameters
Color coated aluminum alloy coil provide a variety of colors and patterns to choose from, including pure colors and printed colors. Customized services can also be provided according to customer needs and building styles.
Basic feature
| Thickness | 0.15mm-2mm |
| Width | Max 1650mm |
| Color | Ral colors or based on requirements |
| Coating film | 20-60μm |
| Coating | PE, HDP, PVDF, etc |
| Alloy | 1100, 3003, 3004,3105,5052 etc |
| Warranty | 15-30 years based on surface coating |
| Package | Eye to wall, eye to sky, coils on wooden pallet |
Products Application

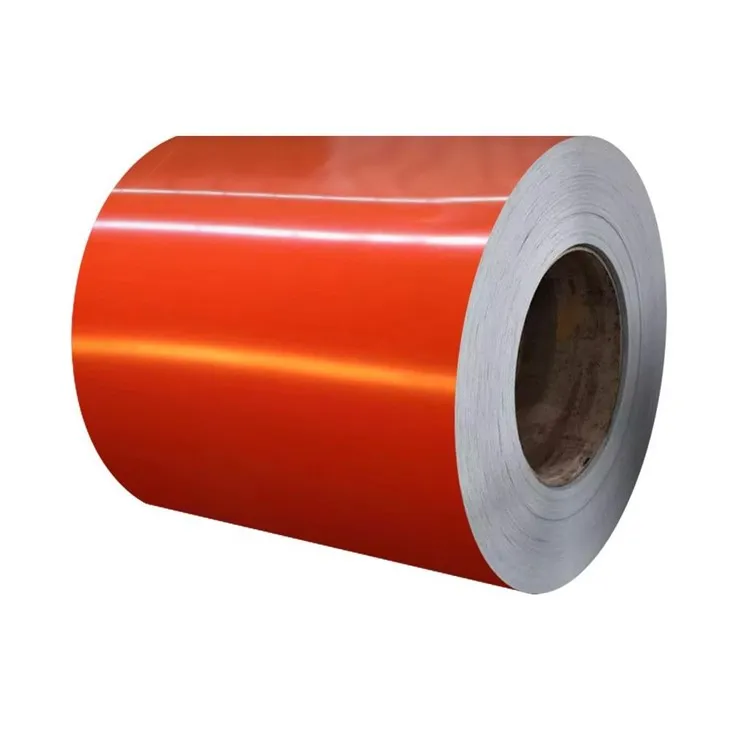

Pure colored aluminum coil
The painting of pure color coated aluminum coils is mostly made according to the Ral color card and can also be customized according to customer needs and architectural styles. It is widely used in building roofs, aluminum curtain walls, etc.
Imitation wood Aluminum coil
The imitation wood grain aluminum coil uses the transfer process to perfectly present the exquisite wood grain and color, adding natural beauty to the building to meet the needs of various styles.It is mainly used in outdoor aluminum curtain walls and interior decoration such as ceilings and decorative wall panels
Different Thickness of Colored aluminum coil
The common thickness of color coated aluminum coil is 0.2-2mm, and the common thicknesses are 0.3mm, 0.4mm, 0.7mm, and 0.8mm.And the width can be customized according to customer requirements.
Extremely thin, suitable for fine processing products
Lightweight, easy to install.
Has weak rigidity and impact resistance
It is suitable for flexible processing and has certain rigidity.
Moderate weight,suitable for general building
Has good weather resistance and corrosion resistance
Thinner,suitable for light building structures
Relatively soft, easy to cut and bend.
Has high corrosion resistance and durability
Thicker,suitable for heavier building structures
Has high strength and rigidity, strong pressure bearing capacity.
Has excellent corrosion resistance and fire resistance
Services Hanchen Metal Provide
Provide what customers need
Our technicians will listen to customers' needs and concerns and understand exactly what they need. We will introduce products that meet their needs or customize suitable solutions to meet or even exceed their expectations.
Timely response and communication
Whether pre-sales or after-sales, our technicians will respond to customer information within 12 hours and customer emails within 24 hours and solve the problems encountered by customers in the shortest time. We will clearly respond to customers on how long it will take to solve their problems and concerns, so that customers can rest assured.
Provide free samples
We can provide customers with pure color aluminum coil samples on the RAL color card for free. We can also make samples according to the samples sent by customers or our color coated aluminum coil samples with similar pattern designs and send them to customers to confirm the color, pattern and coating performance.

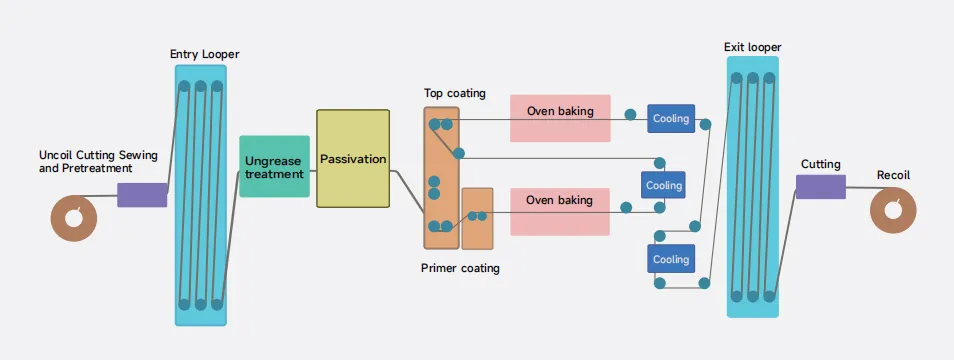

Our Process Line
The Coating process of our color coated aluminum coil is ï¼Uncoil cutting sewing and pretreatment→Entry Loop→Ungrease treatment→Passivaton Primer Coating→Oven Baking→Cooling→Top coating→Oven baking→Cooling→Curing cooling→Exit looper→Cutting →Recoil
