Wood Grain Color & Pattern Options
Our prepainted aluminum coils are available in various wood grain finishes that replicate the natural beauty of wood while offering the strength and durability of aluminum. These patterns are widely used for building facades, ceilings, roofing sheets, and decorative panels.
Common wood grain patterns include:
Products Description
PVDF Coated Wood Grain Aluminum Coils Common specifications: thickness 0.5-1.2mm, width: 800mm-1650mm
Enjoy the beauty of wood without harming the environment. Wood is naturally appealing, but overexploitation has led to the destruction of many tree species. In response to the growing demand for eco-friendly materials, decorative panels are no longer limited to traditional wood. Wood-grain aluminum coils provide a sustainable alternative, offering natural charm while protecting the environment, creating a modern and beautiful urban landscape.
Our wood-grain aluminum coils use PVDF rol·ler coating, a high-performance fluorocarbon paint. Today, aluminum coil coatings are available in a wide range of colors, textures, and patterns. The success of PVDF coatings lies in their durability, weather resistance, and aesthetic versatility, making them a trusted choice for exterior wall paneling worldwide.
PVDF Coated Wood Grain Aluminum Coils offer numerous benefits. Compared with traditional building materials, they are far more durable, with aluminum panels capable of lasting 50–60 years under normal conditions.
These coils can be customized to mimic the texture of natural wood. Made from high-grade aluminum alloy, the wood-grain film is transferred to the coil surface via advanced vacuum transfer technology, producing a premium, high-quality metal decorative material suitable for any architectural design.
Characteristics Of PVDF Coated Wood Grain Aluminum Coils
Excellent durability
Weather-resistant, anti-corrosion, anti-rust, UV-resistant, and fade-proof for up to 30 years, reducing maintenance costs and extending decoration lifespan.
Lightweight & strong
High strength, good rigidity, and resistant to deformation. Each square meter weighs only a fraction of traditional materials while offering superior performance.
Versatile craftsmanship
Aluminum panels can be processed into planes, curves, or spherical shapes. The back can be filled with insulation, soundproofing, or acoustic materials for multifunctional applications.
Uniform coating & color options
Advanced electrostatic spraying technology ensures consistent adhesion with a wide range of colors and textures.
Easy installation
Panels are factory-formed, eliminating on-site cutting. Simply fix them onto the structure.
Eco-friendly & recyclable
100% recyclable aluminum offers high residual value and is more sustainable than glass, stone, ceramics, or aluminum-plastic panels.
PVDF is a high-performance fluorocarbon paint with outstanding physical and chemical properties. It offers excellent weather resistance, self-cleaning, corrosion resistance, solvent resistance, color and gloss retention. Our PVDF coatings contain over 70% fluorocarbon and are available in solid and metallic flash colors, ensuring long-lasting beauty and protection.
Products parameters
| PVDF Coated Wood Grain Aluminum Coil Technical Data | ||||||||
| Grade | Annealing Tem. |
Thickness/mm | Tensile test results at room temperature | bending radius | ||||
| Tensile strength (Rm/MPa) |
non-proportional extension tensile strength (Rp0.2/MPa) |
elongation after break (m/%) | ||||||
| A50mm | A | 90° | 180° | |||||
| not less than | ||||||||
| 3003 | H14 | >0.20～0.50 | 145～195 | 125 | 2 | _ | 0.5t | 2.0t |
| >0.50～1.50 | 2 | 1.0t | 2.0t | |||||
| >1.50～3.00 | 3 | 1.0t | 2.0t | |||||
| >3.00～6.00 | 4 | 2.0t | 一 | |||||
| 3004 | H14 | >0.20～0.50 | 220～265 | 180 | 1 | _ | 0.5t | 2.5t |
| >0.50～1.50 | 2 | 1.0t | 2.5t | |||||
| >1.50～3.00 | 2 | 1.5t | 2.5t | |||||
| >3.00～6.00 | 3 | 2.0t | 一 | |||||
| H24 H34 |
>0.20～0.50 | 220～265 | 170 | 3 | _ | 0.5t | 2.0t | |
| >0.50～1.50 | 4 | 1.0t | 2.0t | |||||
| >1.50～3.00 | 4 | 1.5t | 2.0t | |||||
| H16 | >0.20～0.50 | 240～285 | 200 | 1 | _ | 1.0t | 3.5t | |
| >0.50～1.50 | 1 | 1.5t | 3.5t | |||||
| >1.50～3.00 | 2 | 2.5t | 一 | |||||
| H26 H36 |
>0.20～0.50 | 240～285 | 190 | 3 | _ | 1.0t | 3.0t | |
| >0.50～1.50 | 3 | 1.5t | 3.0t | |||||
| >1.50～3.00 | 3 | 1.5t | 一 | |||||
| PVDF Coated Wood Grain Aluminum Coil sheet | |
| Single Color PVDF Coated AL Alloy Coil Parameter | |
| Painting coating | Top:20μm Back:5μm |
| Color | According to the customer request |
| Glossiness | Standard: 25+1-5 |
| Cross-cut adhesion | The paint film does not fall off |
| T-bend test | 1T- the paint film does not fall off |
| Reverse impact | 9J -the paint film does not fall off |
| MEK test | Butanone MEK wiped back and forth 100 times without damage to the paint film |
| Heat and humidity resistance | Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
| Acid and alkali resistance | Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance. Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
| Neutral salt spray resistance | Neutral salt spray test for 1000 hours |
| UV lamp accelerated aging test | OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks, and other defects. |

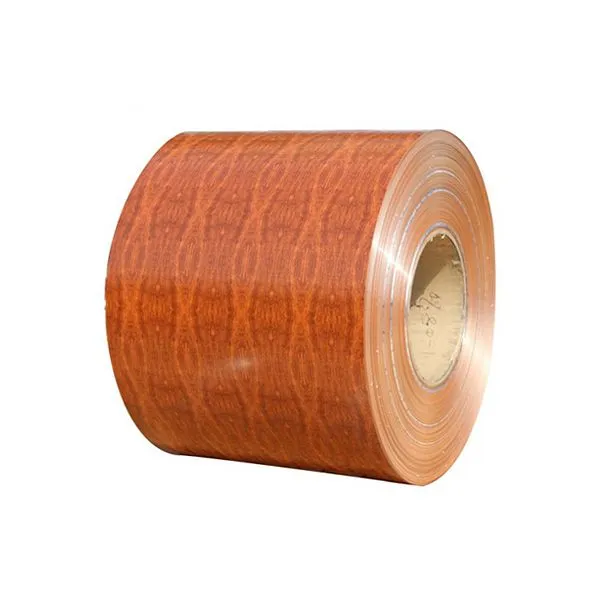

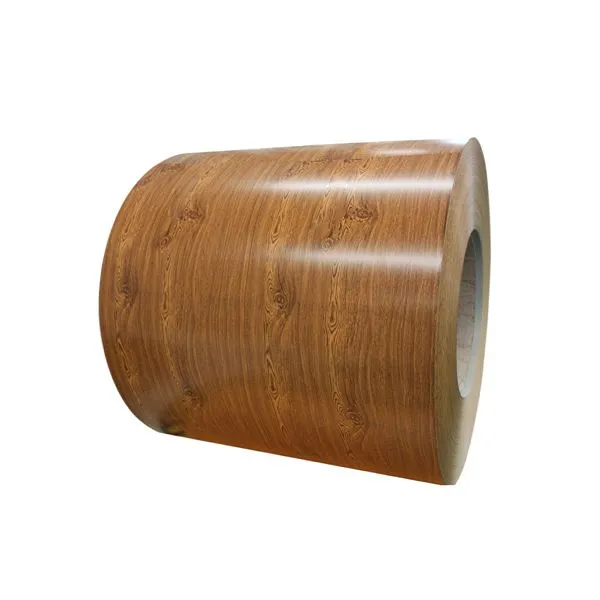

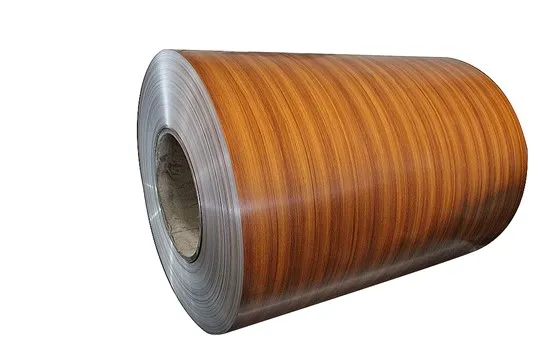

Product Picture

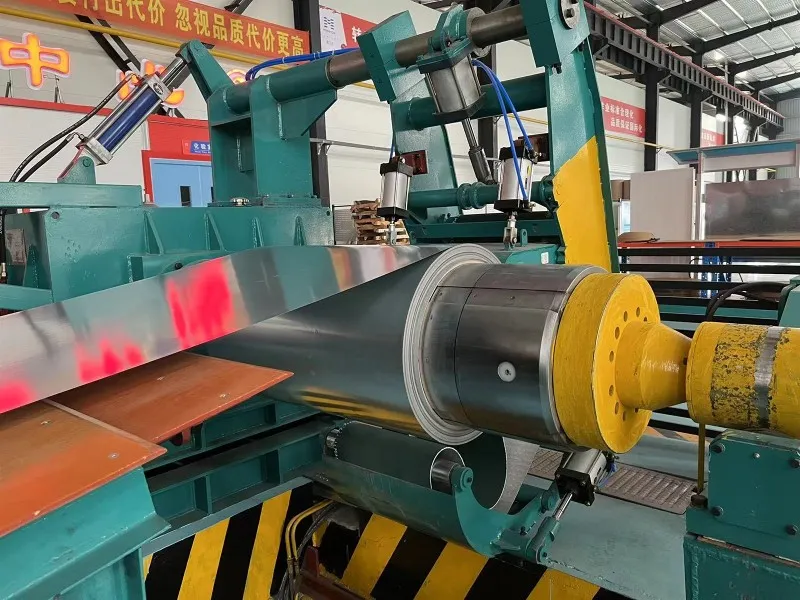

Our factory
