Products
Silver Grey Metal Roof Panels
video
Silver Grey Metal Roof Panels

Silver Grey Metal Roof Panels

Silver grey metal roof panels are widely used in steel structure workshops, building metal curtain walls, exterior wall decoration, metal roofs, metal ceilings, interior decoration, gymnasiums, convention centers, high-speed rail stations, airports and other large modern public places.
Products Description

Silver Grey Metal Roof Panels

Material: PE or PVDF Coated Al alloy 3003 and 3004

Silver grey metal roof panels are widely used in steel structure workshops, building metal curtain walls, exterior wall decoration, metal roofs, metal ceilings, interior decoration, gymnasiums, convention centers, high-speed rail stations, airports and other large modern public places.

1

Silver grey metal roof panels are widely used in steel structure workshops, building metal curtain walls, exterior wall decoration, metal roofs, metal ceilings, interior decoration, gymnasiums, convention centers, high-speed rail stations, airports and other large modern public places.

4

The colors are diverse and stable, and basically all the colors in the Raul color card can be realized. The paint used can be polyester paint or fluorocarbon paint. Basically, polyester paint will not change greatly in 15 years, and fluorocarbon paint can reach an astonishing 30-50 years.

It Has A Series Of Advantages To Replace Color Steel Products, Mainly In:

1. The colors are diverse and stable, and basically all the colors in the Raul color card can be realized. The paint used can be polyester paint or fluorocarbon paint. Basically, polyester paint will not change greatly in 15 years, and fluorocarbon paint can reach an astonishing 30-50 years.
2. The surface will not rust. First of all, the paint surface will form a better protection for the aluminum plate. In addition, a stable oxide layer will be formed on the surface of the aluminum plate to prevent further erosion of the environment. Solve your headaches once and for all.
3. The residual value of recycling is high, and the recycling value of aluminum is high, which can basically reach about 70-80% of the original value (there will be differences depending on the region), so when you use it for 20 or 30 years, if you want to dismantle it, you still need to pay for it. Can sell for a good price. If the price of aluminum rises, even the selling price will be higher than the money spent in the past. So many years are equivalent to useless, and even make money. Would you still choose color steel for such a value-preserving product?
4. Aluminum is relatively soft and can be easily bent and various shapes can be realized. Welding and bending are even easier.
PE or PVDF Coated Al alloy 3003 and 3004 silver grey metal roof panels is a product we often use on roofs. If you like light-colored roofs and want to use them for more than 30 years, you can choose this product with confidence.



Products parameters
PE Aluminium sheet

Silver Grey Metal Roof Panels Parameter

Painting coating

Top:15~18μm Back:5μm

Color

According to customer request

Glossiness

Standard: 35+1-5

Cross-cut adhesion

The paint film does not fall off

T-bend test

3T- the paint film does not fall off

Reverse impact

9J -the paint film does not fall off

MEK test

Butanone MEK wiped back and forth 100 times without damage to the paint film

Heat and humidity resistance

Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness

Acid and alkali resistance

Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance

Neutral salt spray resistance

Neutral salt spray test for 1000 hours

UV lamp accelerated aging test

OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.



PVDF Aluminium sheet

Parameter

Painting coating

Top:20μm Back:5μm

Color

According to customer request

Glossiness

Standard: 25+1-5

Cross-cut adhesion

The paint film does not fall off

T-bend test

1T- the paint film does not fall off

Reverse impact

9J -the paint film does not fall off

MEK test

Butanone MEK wiped back and forth 100 times without damage to the paint film

Heat and humidity resistance

Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness

Acid and alkali resistance

Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance

Neutral salt spray resistance

Neutral salt spray test for 1000 hours

UV lamp accelerated aging test

OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.





Product Picture

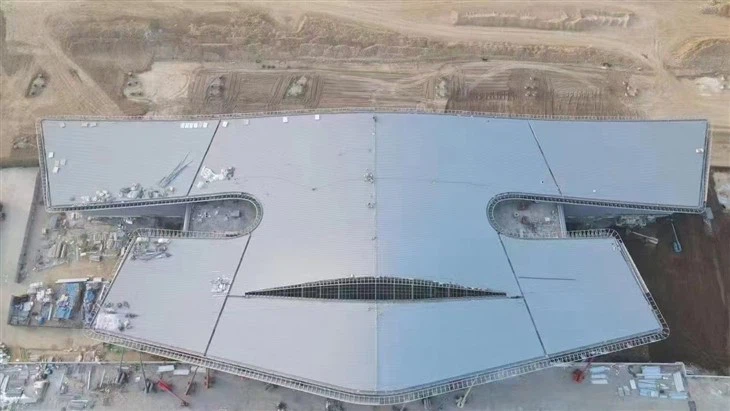

silver-grey-metal-roof-panelsac7bff65-6fb0-4344-bd74-018d0e20087d

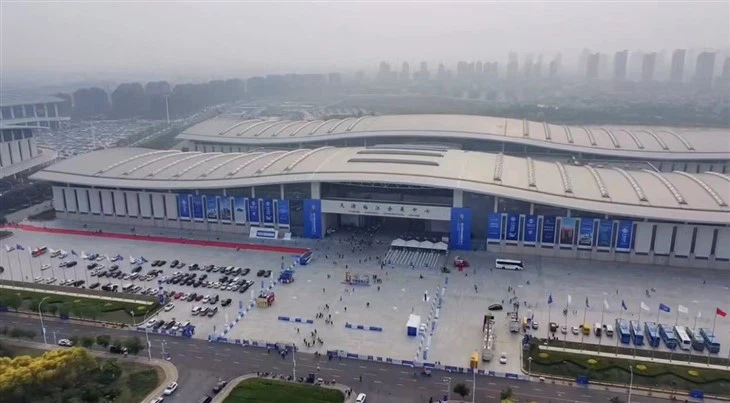

silver-grey-metal-roof-panels44c16cc4-5e4c-4dce-9527-140b5277bc81

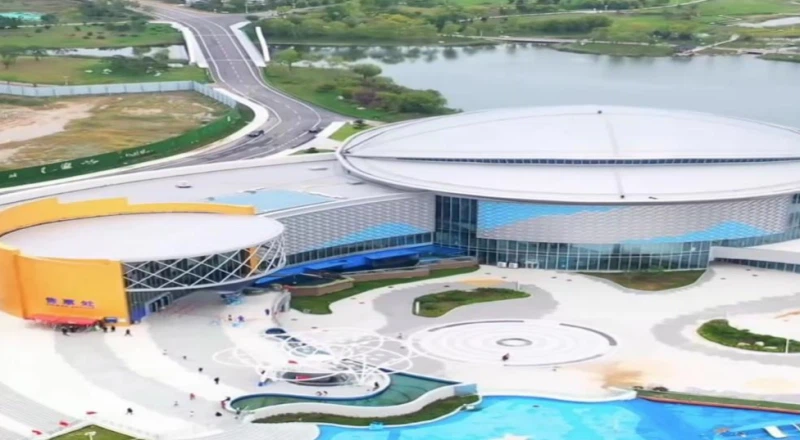

20230621114312ced7ee6444f947b9b8451acc3857c9a0
