Color Coated aluminum Coil Cross-cut Test
Color-coated aluminum coils are widely used across industries like building materials, decoration, transportation, and home appliances. As a pre-finished material, the surface of the coil is already chemically treated, degreased, and coated with primer and topcoat in a controlled production process. This ensures that the coil surface is clean, uniform, and ready for performance testing - including one of the most important: adhesion testing.
Among the various methods available, the cross-cut test (based on ASTM D3359) is one of the most reliable and widely adopted ways to check how well the coating adheres to the aluminum substrate.
What Is the Cross-Cut Test?
The cross-cut test evaluates the bonding strength between the coating and the substrate. It involves making a series of small cuts in the coating to form a grid pattern, applying adhesive tape, and observing how much of the coating is removed when the tape is pulled off. This test is especially important for color-coated aluminum coils, as poor adhesion can lead to premature paint peeling, corrosion, or surface failure all of which affect product durability and appearance.
Standard Cross-Cut Test Procedure
At Hanchen Metal, we follow the ASTM D3359 standard to ensure consistent and accurate testing results for all our color-coated aluminum coils.
1. Visual Inspection
Since the coils are pre-treated and cleaned during the production process, no additional surface cleaning is needed. We simply inspect the test area to confirm it's free of defects before beginning.

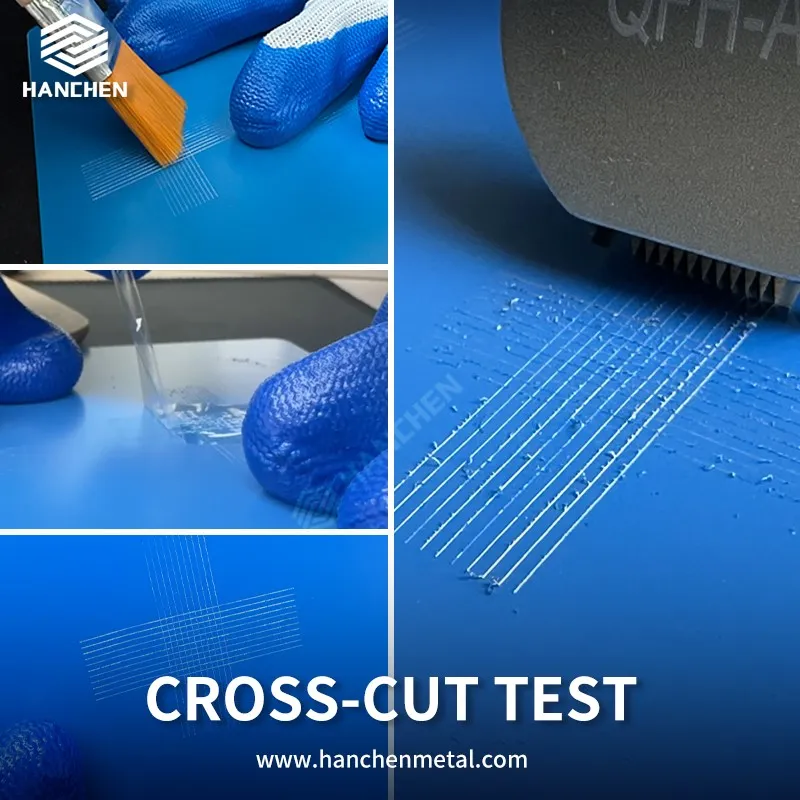

2. Making the Grid
Using a cross-cut tool, we make a series of cuts both vertically and horizontally to create a small grid - typically 25 squares (5x5), each about 1mm in size.
3. Brushing
A soft brush is used to gently remove any loose coating particles generated by the cuts.
4. Applying and Removing Adhesive Tape
A standardized adhesive tape is firmly applied over the cut area, pressed down evenly, and then pulled off in a single, consistent motion.
5. Grading the Results
We then examine the area under magnification to assess how many squares lost their coating. The result is rated from 0B (complete failure) to 5B (no coating loss). Most high-quality color-coated aluminum coils will achieve 4B or 5B ratings - considered excellent adhesion.
