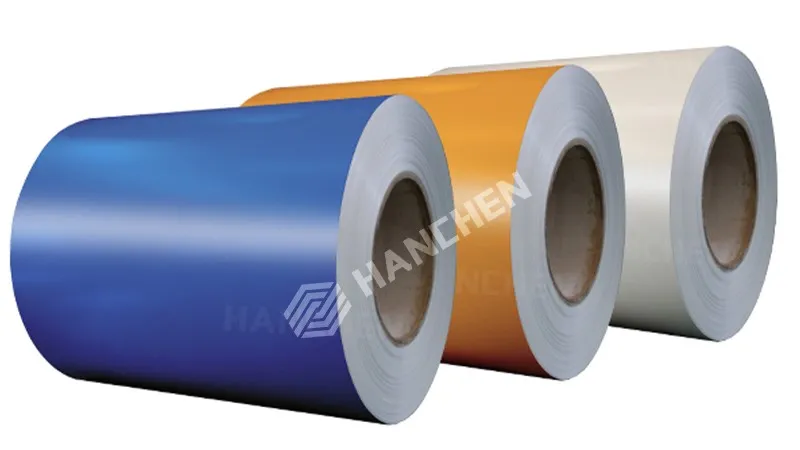

Color coated aluminum coil is one of the most widely used raw materials for ACP panels, sandwich panels, and roofing sheets. Its durability, surface smoothness, and weather resistance directly affect the final product quality. However, during long-distance transportation, storage, and on-site installation, improper handling can cause scratches, dents, and coating damage. These defects not only reduce the aesthetics of coated aluminum sheet but also shorten service life, leading to customer complaints and costly losses.
This article provides a professional overview of how manufacturers can effectively protect color coated aluminum coils, based on practical cases, packaging technology, and industry standards.
Why Surface Protection Matters
The surface of a color coated aluminum coil is produced with PVDF, HDP, or PE coatings. These coatings provide resistance to UV, corrosion, and mechanical stress. Laboratory scratch tests show that when surface damage exceeds 10 μm in depth, corrosion resistance can drop by 30% or more, especially in coastal or high-humidity environments. For ACP panel and sandwich panel producers, even minor scratches on aluminum rolls can result in rejection rates above 5% of total supply, directly impacting profitability.

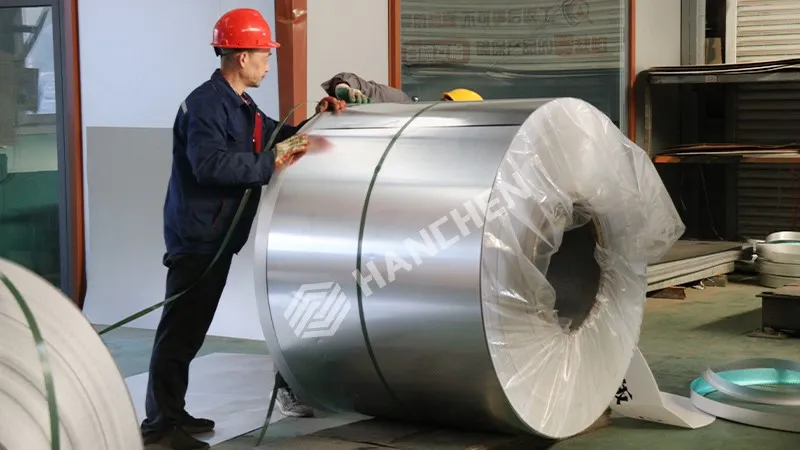

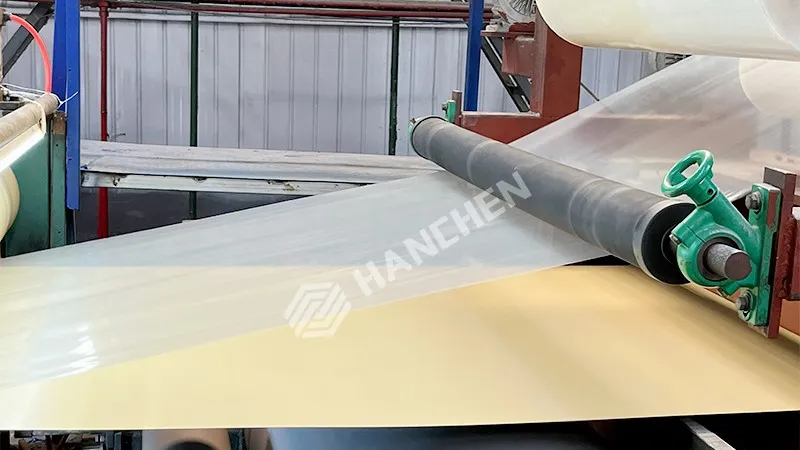

Protective Film Application
One of the most effective measures is applying a protective PE or PVC film on the color coated aluminum coil. This thin film (30–100 microns) prevents contamination from dust, debris, and handling equipment. It also minimizes minor scratches during slitting, cutting, and bending. The film can be easily removed during final panel production without adhesive residue.

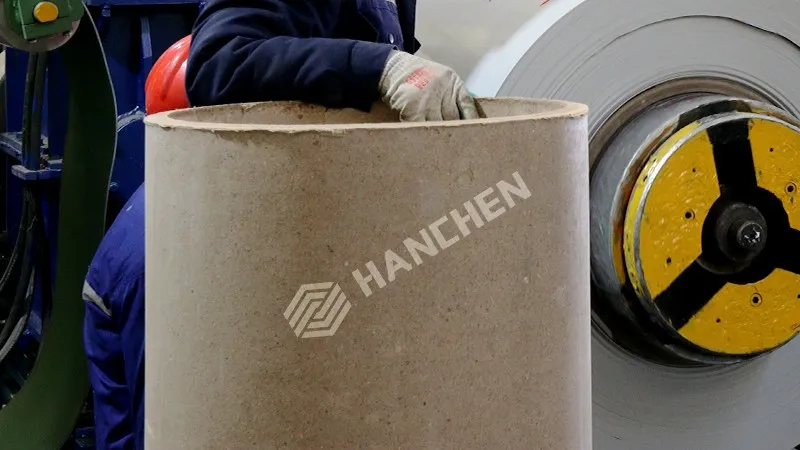

Strong Inner Core Support
The coil core is the backbone of packaging. Hanchen Metal provides paper inner cores (20–30 mm thick) or steel inner cores for options.
- Paper cores are lightweight and suitable for standard thickness aluminum sheets.
- Steel cores provide maximum strength for heavy gauge or large-diameter coils.
Inner core diameters of 405 mm, 505 mm, and 605 mm are available to meet different machine requirements, ensuring safe uncoiling without deformation.
Moisture-Proof and waterproof Packaging
To prevent oxidation, every prepainted aluminum coil is wrapped in kraft paper and waterproof plastic film. This dual-layer packaging effectively blocks moisture, especially during sea freight or long-term storage. Field tests show that coils packed with double-layer anti-moisture protection retain over 95% gloss retention after 6 months in high-humidity warehouses, compared to only 70% gloss retention without protection.

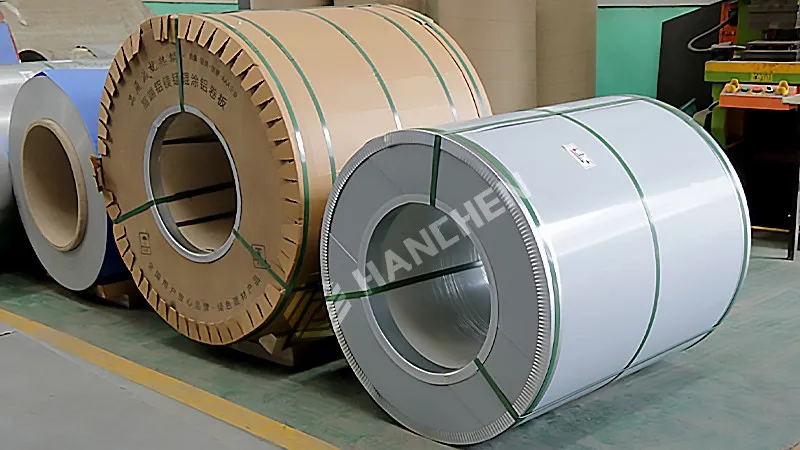

Steel Outer Shell and Strapping Reinforcement
Color coated aluminum coils are further secured by steel outer shells and steel strap reinforcement. This "armor-like" protection resists mechanical impacts during loading and unloading. The straps fix the coil tightly onto wooden pallets, preventing horizontal or vertical movement. For sensitive shipments, full wooden box packaging can be provided.
Flexible Packaging Options
Depending on customer needs, color coated aluminum coils can be shipped in:
- Vertical (Eye to Sky): coil stands upright, reducing floor space.
- Horizontal(Eye to Wall): coil lays flat with stable center of gravity.
- Both packaging styles use wooden pallets for forklift or crane handling.

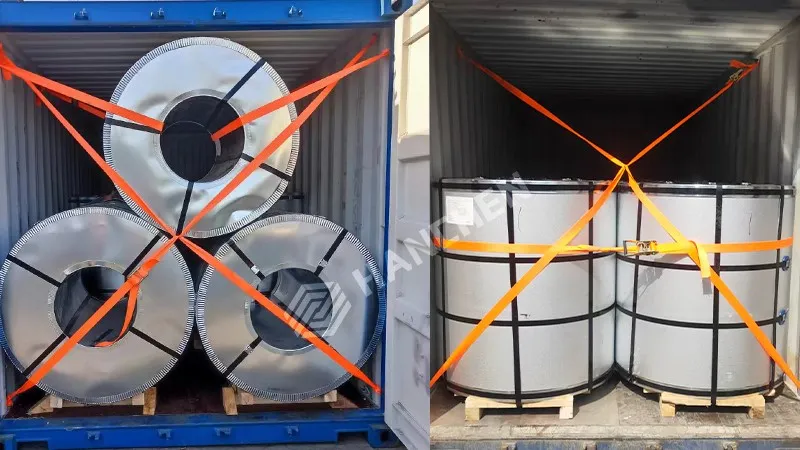

In container loading, secondary reinforcement with wedges and steel straps ensures that coils do not shift during sea freight.
Quality and Safety Assurance
Hanchen Metal's color coated aluminum coils comply with ASTM B209 standards. Every batch is tested for T-bend, pencil hardness, adhesion, gloss, and MEK resistance. Our packaging system meets export standards for moisture-proof, anti-oxidation, and anti-damage requirements. This ensures that ACP panel manufacturers, sandwich panel factories, and roofing sheet producers receive coils in perfect condition, ready for high-precision fabrication.
By choosing Hanchen Metal's color coated aluminum coil, you not only receive high-quality coated aluminum sheet with PVDF, HDP, or PE coatings, but also benefit from professional packaging solutions that guarantee safe delivery worldwide. This ensures your production runs smoothly, minimizes rejection rates, and enhances the competitiveness of your finished products.
