For fabricators of aluminium composite panels (ACP), sandwich panels or roofing panels, specifying high-quality prepainted aluminum coil is critical to ensure consistent finished appearance. You might assume that ordering coils from a single batch guarantees identical finish color. However, even within what appears to be a "same batch" of colored aluminum coil, variations can emerge that compromise visual consistency.
Why does color difference occur in colored aluminium coil from the same batch?
Substrate variability of the aluminium coil

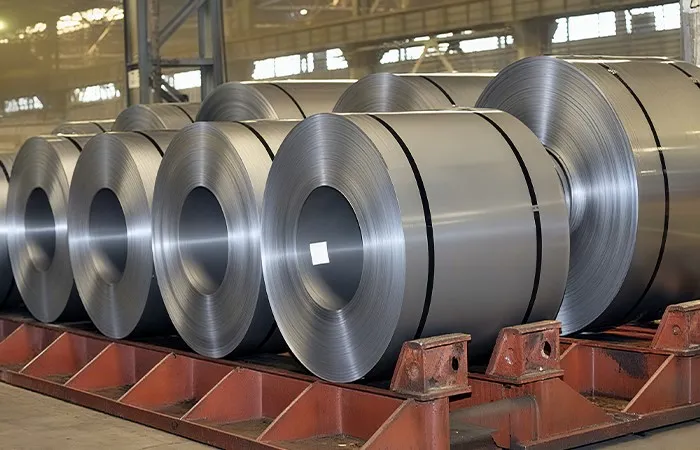

Even when labelled as the same batch, the prepainted aluminum coil substrate may come from different casting heats, rolling runs or temper conditions. Variation in alloy composition, residual stress, surface oxidation or mill finish affect how the coating system bonds and cures. Because the colored aluminium coil's paint film interacts with the substrate – influencing reflectance, absorption and scattering – even minor substrate differences produce perceptible variation in lightness and hue.
Process tolerances & coating line effects
Producing color coated aluminum coil involves a continuous coil-coating line: pretreatment, primer, top-coat, curing oven, cooling and rewinding. Each stage introduces tolerances – film thickness (±2 µm), oven temperature (±5 °C), line speed (±3 %) – which stack cumulatively. The National Coil Coating Association toolkit notes that if ΔL*, Δa*, Δb* are kept within ±0.5, the resulting ΔE will be approximately 1, which is typically perceptually invisible. If process variation moves beyond that, ΔE may rise >2 or >3, where adjacent sheets of color coated aluminium coil begin to show visible difference.
Batch definition, coil segmentation & installation variables

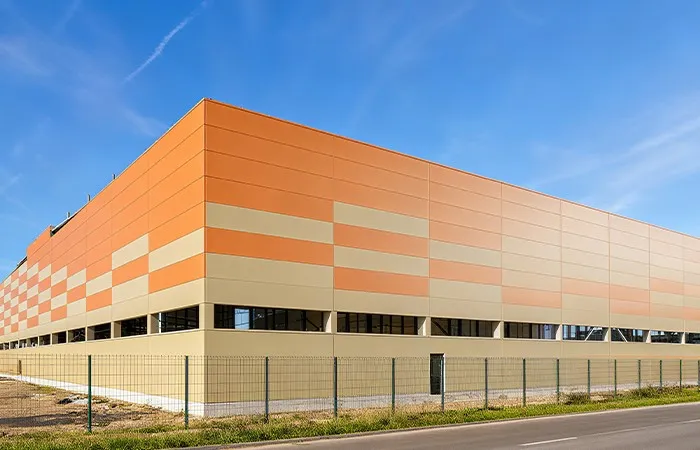

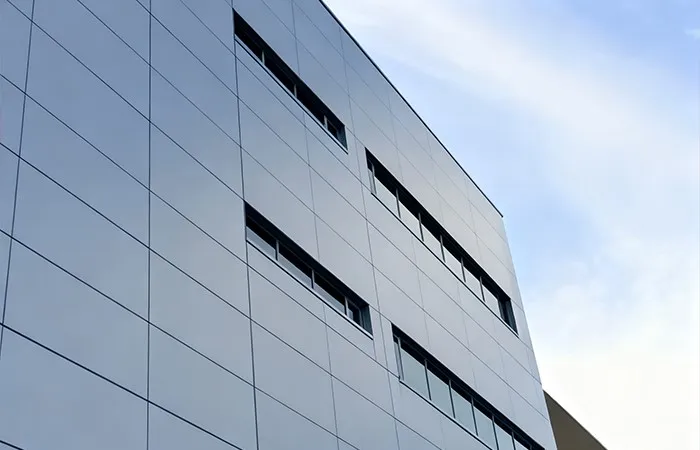

"Same batch" may refer to the same order number, not a continuous coating run. Coils might still be produced on different lines, on different days, or involve a change in set-up. When panels fabricated from different coil loads are positioned side by side (e.g., in the same façade), the colored aluminium coil variation becomes apparent.
International standards for colored aluminium coil and target performance levels
Color difference measurement: ΔE in L*a*b*
The international standard for quantifying color deviation in painted metal is ΔE (Delta E), the Eu-clidian distance in CIE L*a*b* space:
Where ΔL* = difference in lightness, Δa* = difference in red/green axis, Δb* = difference in yellow/blue axis. Industry data indicate ΔE ≈ 1 is generally below perceptual threshold; ΔE of 2-3 may be perceptible to trained eye; ΔE >5 is clearly visible and often unacceptable for architectural aluminium.
Benchmark performance for coil-coated aluminium coil
For high-end usage (ACP panels, sandwich panels, roofing panels):
- Adjacent coils: ΔE ≤ 1.0 is excellent.
- Adjacent coils: ΔE ≤ 2.0 is acceptable.
- ΔL*, Δa*, Δb* each within ±0.5 is seen as best-practice control. If coils exceed ΔE of 2-3, fabricators risk visible mismatch and potential rejection.
Our technical solutions and procedures for minimising color difference in prepainted aluminium coil
top service industries
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Substrate sourcing control

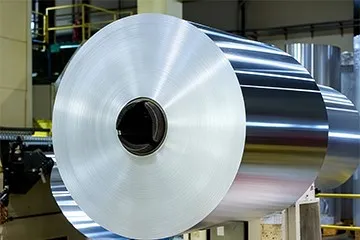

We restrict aluminium coil inputs to defined alloys and temper designations and pull from the same cast/rolling heat where possible to minimise substrate variation. We inspect every coil for surface oxide thickness, flatness and residual stress, reducing variation before coating.
coating-line monitoring

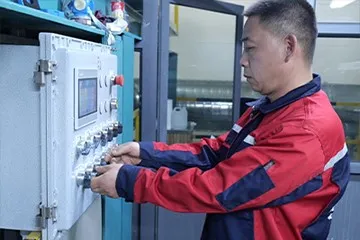

Our coil-coating line is equipped with inline spectrophotometry, measuring L*, a*, b* across the strip in real-time. This allows corrective action if drift occurs. We use high-performance PVDF or FE resin paint systems (in many cases >70% PVDF), which offer superior durability and color stability. We control film thickness tightly (±2 µm).
Color Difference test

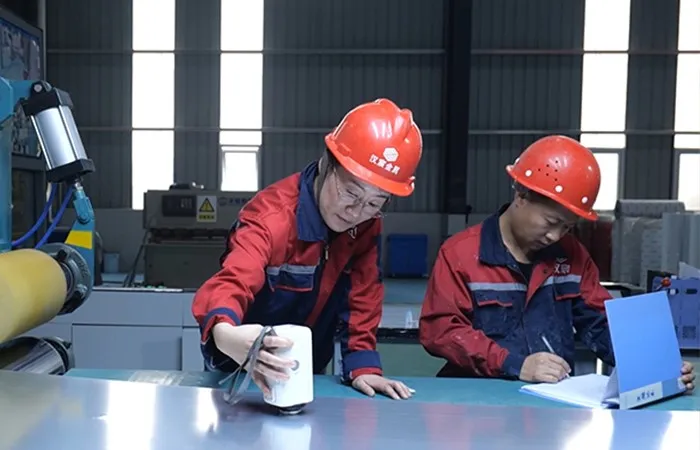

Prior to shipping, each coil is accompanied by a certificate, measured values, and computed ΔE vs standard. We guarantee adjacent coils within same job do not exceed ΔE ≤ 2.0, and we aim for ΔE ≤ 1.0. We provide clear coil-lot numbering, advise customers to install adjacent panels from adjacent coil numbers, and recommend daylight inspection rather than warehouse lighting.
After-sales & quality assurance
In rare cases where color mismatch is reported in finished panels made from our coils, we conduct field measurement with portable spectrophotometer and compare against our certificate data to trace whether variation occurred at coil stage, fabrication or installation. This reduces downstream re-work and supports your commitment to consistent panel output.
