Products Description

Imitation Wood Grain Metal Roof Panels

Material ：3003 or 3004 Al alloy ,PE coated or PVDF coated .
There are many color options for the imitation Wood Grain Metal Roof Panels, according to people's different preferences, there are light gray, medium gray, dark gray, blue, colored and so on. According to the designer's design, we can provide multi-color roof panels.
Our commonly used tile types are high standing seam roof panels, low standing seam roof panels and antique tiles series. Customers can choose corresponding products according to different architectural styles.

Antique tiles: Compared with traditional tiles, antique tiles are free of maintenance and maintenance, and the paint surface will not fade or fall off for 50 years.
The water resistance is very good, and the single-layer tiles have passed the impermeability test, reaching the performance index of waterproof materials.

Imitation Wood Grain Metal Roof Panels - enjoy nature without harming nature, wood texture is loved by everyone because of its unique charm, but when enjoying the gifts of nature, these tree species have been destroyed on a large scale, and the beauty is accompanied by What is natural is crying.

With the call of the country, green environmental protection has become the only way out. All walks of life follow this concept, and decorative panels are no longer limited to traditional panels such as wood. As a result, new types of panels such as wood grain aluminum coil appeared, which is also a beautiful landscape of the city.

Products parameters

PE Aluminium sheet
Imitation Wood Grain Metal Roof Panels Parameter
Painting coating	Top:15~18μm Back:5μm
Color	According to customer request
Glossiness	Standard: 35+1-5
Cross-cut adhesion	The paint film does not fall off
T-bend test	3T- the paint film does not fall off
Reverse impact	9J -the paint film does not fall off
MEK test	Butanone MEK wiped back and forth 100 times without damage to the paint film
Heat and humidity resistance	Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness
Acid and alkali resistance	Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance
Neutral salt spray resistance	Neutral salt spray test for 1000 hours
UV lamp accelerated aging test	OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.

PVDF Aluminium sheet
Parameter
Painting coating	Top:20μm Back:5μm
Color	According to customer request
Glossiness	Standard: 25+1-5
Cross-cut adhesion	The paint film does not fall off
T-bend test	1T- the paint film does not fall off
Reverse impact	9J -the paint film does not fall off
MEK test	Butanone MEK wiped back and forth 100 times without damage to the paint film
Heat and humidity resistance	Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness
Acid and alkali resistance	Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance
Neutral salt spray resistance	Neutral salt spray test for 1000 hours
UV lamp accelerated aging test	OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.

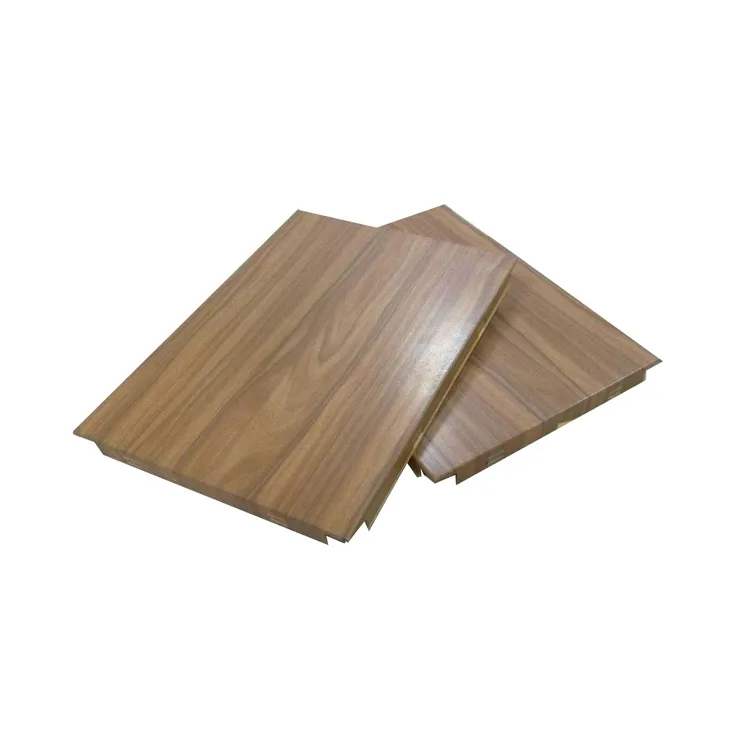

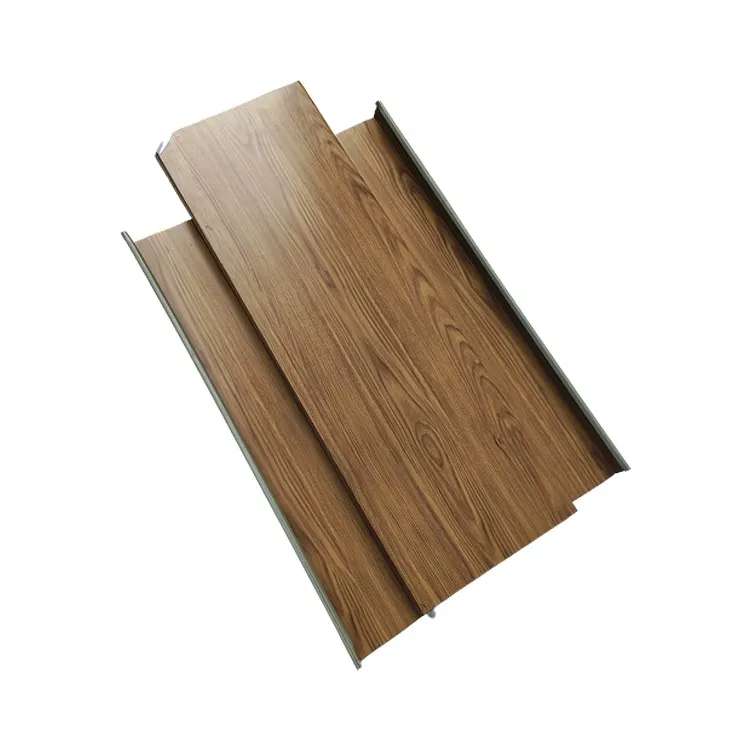

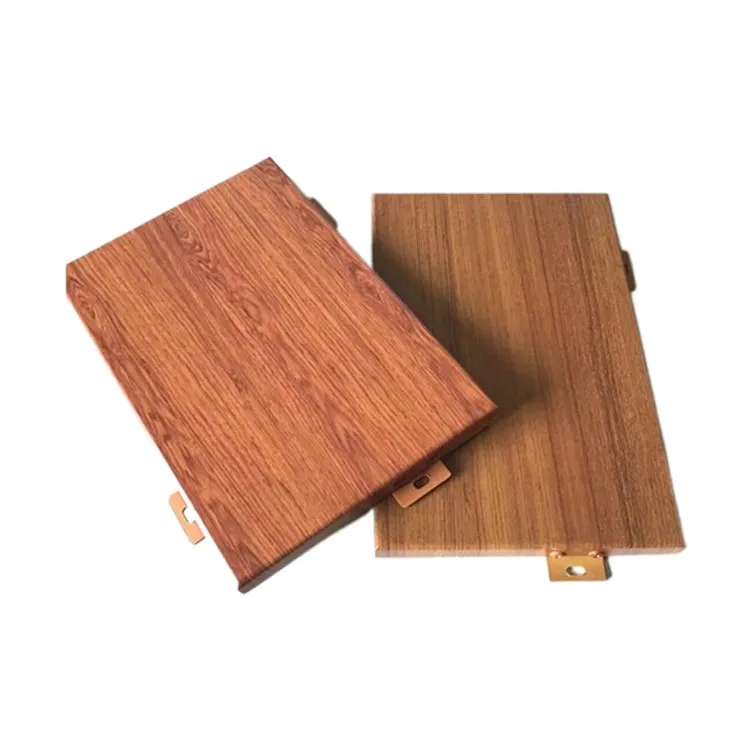

Product Picture

Our factory

workshop

workshop

workshop

workshop
