Ceiling Decoration With Aluminum Coil In Office Building
A modern office building recently underwent an interior upgrade that focused on both design and functionality. Central to this transformation was the ceiling system, where aesthetics, durability, and long-term performance were top priorities. To meet these expectations, the developer partnered with Hanchen Metal, a trusted manufacturer and exporter of color coated aluminum coil. By using our high-quality prepainted aluminum coil with advanced PE coating and PVDF coating, the project team was able to deliver a ceiling solution that combines elegance with practical performance, creating a refined workplace environment for employees and visitors alike.

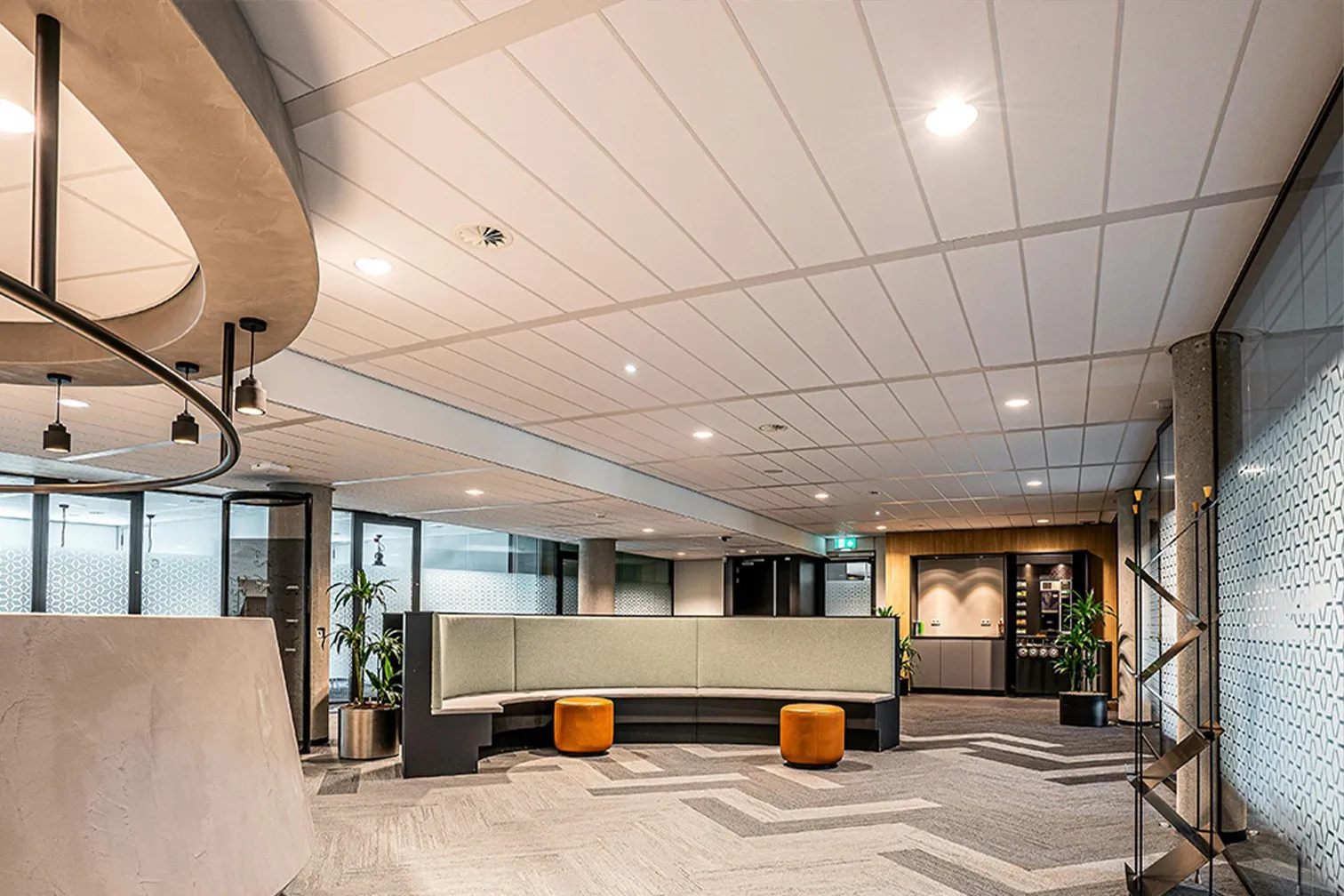

The project involved large open office spaces, meeting rooms, and reception areas that required ceilings capable of maintaining a sleek appearance over time. Unlike conventional ceiling materials, colored aluminum coil offered both lightweight construction and excellent strength, making it ideal for modular panel installation. Hanchen Metal supplied coils with a thickness of 1 mm and above, ensuring the necessary rigidity while allowing flexibility in shaping and assembly. The coils were coated in customized RAL colors to match the building's overall design scheme, enhancing consistency across the ceiling system and adjacent wall panels.
| Technical Specifications | |
| Alloy Type | 3003 H24 |
| Thickness | ≥ 1.0 mm |
| Coating Options | PVDF coating (≥ 25 µm) for high-visibility areas; PE coating (≥ 18 µm) for service zones |
| Panel Dimensions | Width: 600~1200 mm; Length: modular, project-based |
| Color & Finish | RAL-customized, matte or metallic finishes |
| Applications | Ceiling systems, decorative ACP panels, sandwich panels, and roofing projects |
Client Concerns & Our Solutions
Client Priorities
From the early planning stage, the client highlighted several issues that needed to be addressed. The ceiling would be installed in high-traffic office areas, meaning it had to retain a clean and uniform look over many years. Maintenance was also a concern, as the building management wanted a material that would resist dust, stains, and fading, while remaining easy to clean. Safety and reliability were equally important, requiring materials with solid fire resistance and structural stability. Beyond functionality, the client wanted the ceiling to elevate the office atmosphere with a modern, high-quality finish that aligned with the company's image.
Our Solutions
Hanchen Metal provided a tailored solution by recommending prepainted aluminum coil in thicknesses above 1 mm, which offered both strength and ease of installation. For ceiling panels in open-plan areas and reception spaces, PVDF coating was selected to ensure long-term color retention, scratch resistance, and superior weatherability, even in areas with direct sunlight exposure. In less critical spaces such as service corridors, PE coating was applied as a cost-effective yet durable option. The aluminum coils were processed with high flatness and precise dimensions, enabling smooth assembly within modular ceiling frameworks. The ability to match colors using the RAL system also ensured seamless integration with other decorative elements, including ACP panels and sandwich panels used in adjoining areas.
Recommendation for Industry Peers
This case demonstrates the advantages of choosing color coated aluminum coil for interior ceiling projects. For architects and developers seeking durable, aesthetic, and cost-efficient materials, Hanchen Metal recommends the following best practices:
Use ≥ 1 mm thickness
Use ≥ 1 mm thickness for durability and easier installation.
Coating Type
Select PVDF coating for exposed areas; PE coating for hidden or less critical zones.
200+ Color For Options
Leverage RAL-based color matching for design consistency across ceiling, ACP, and sandwich panels.
long-lasting performance
Capitalize on the lightweight, corrosion-resistant, and aesthetic qualities of colored aluminum coil for long-lasting performance.
