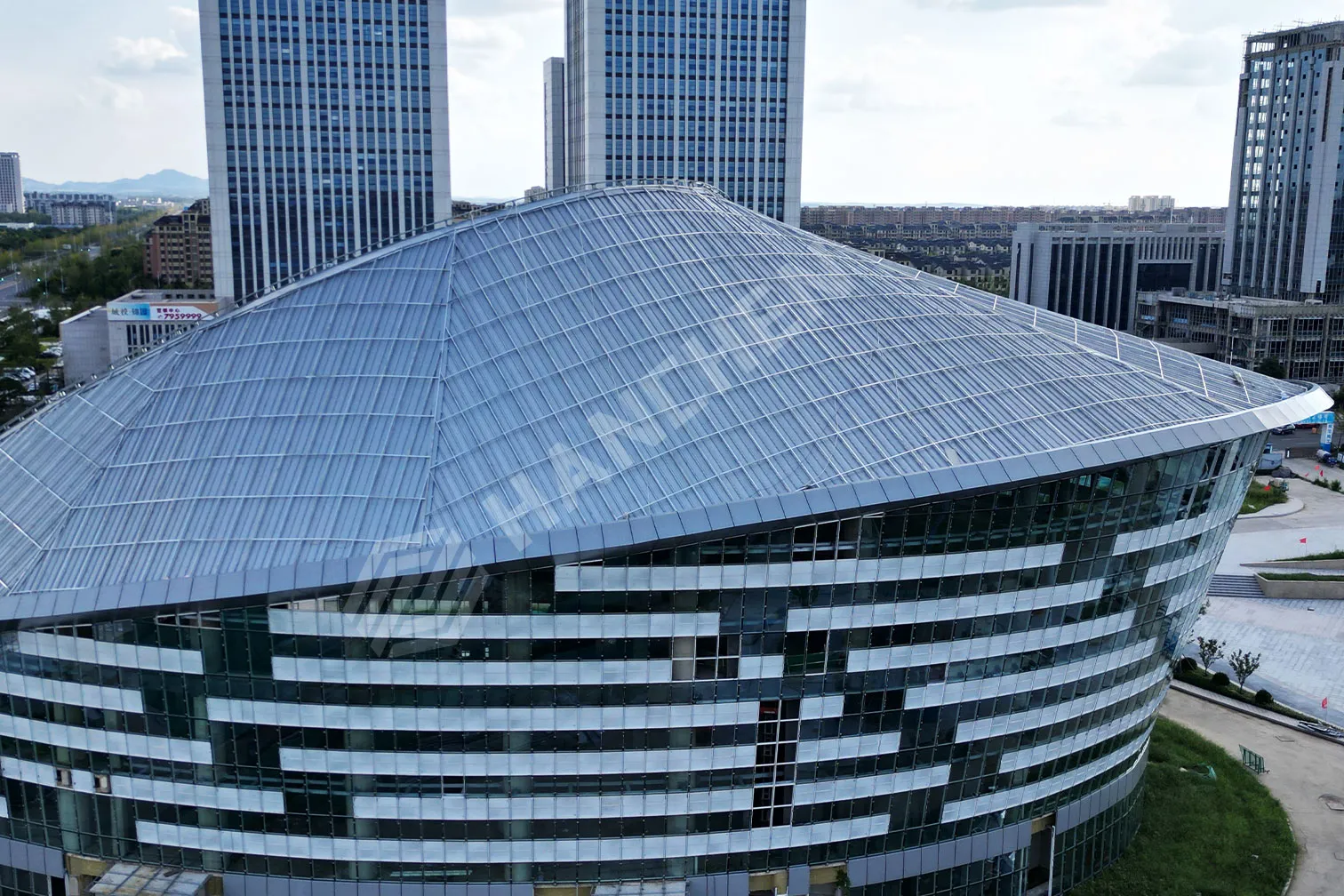

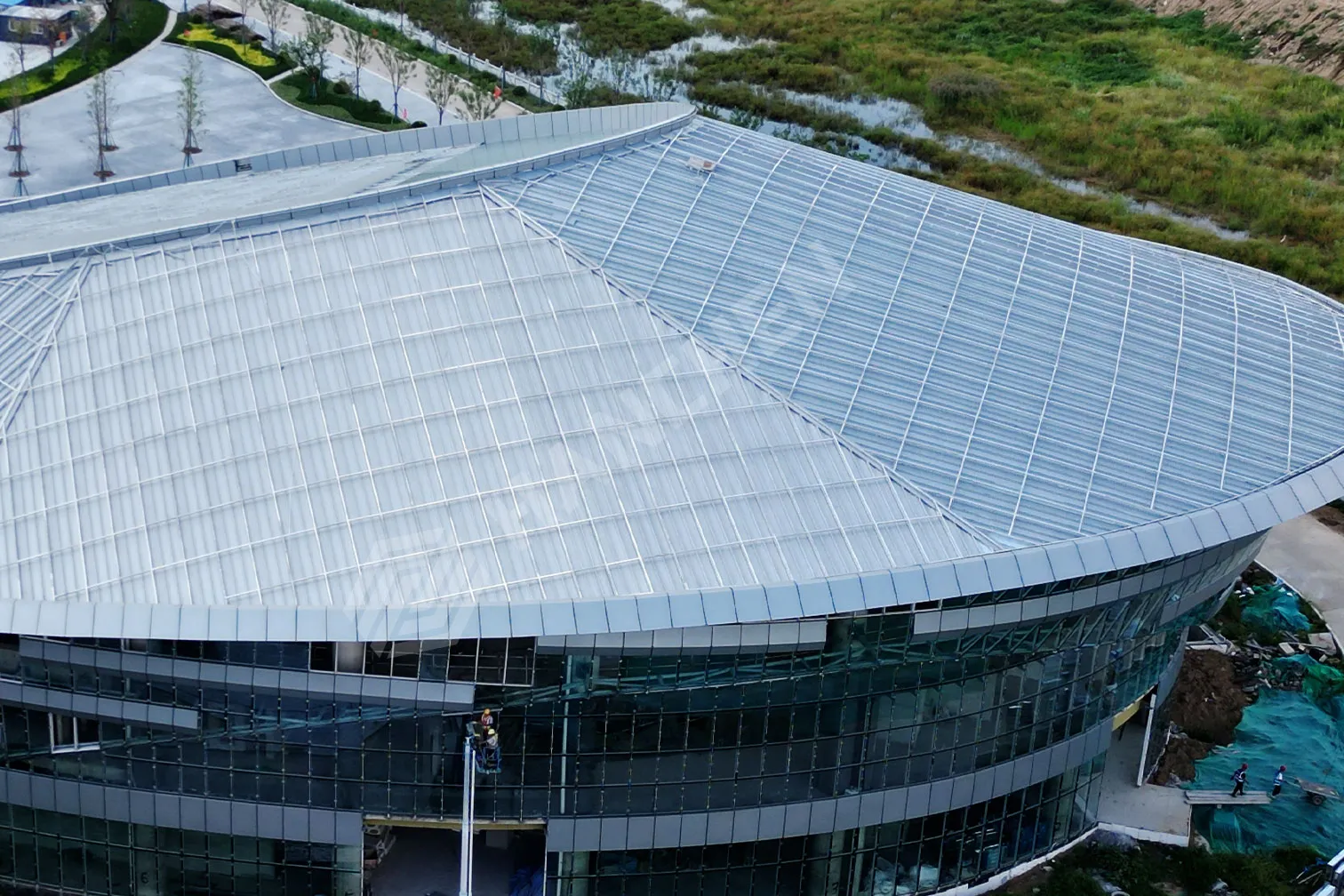

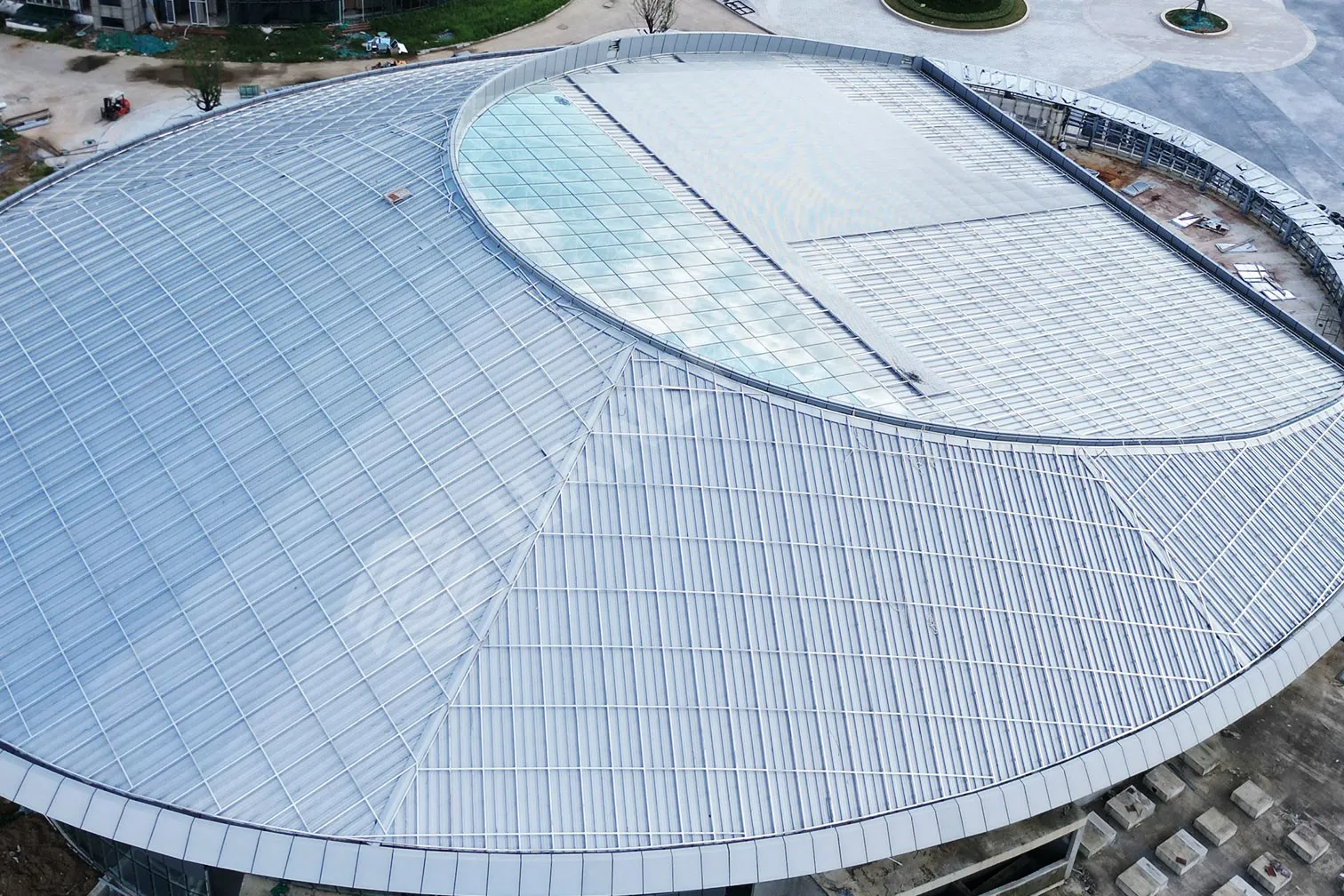

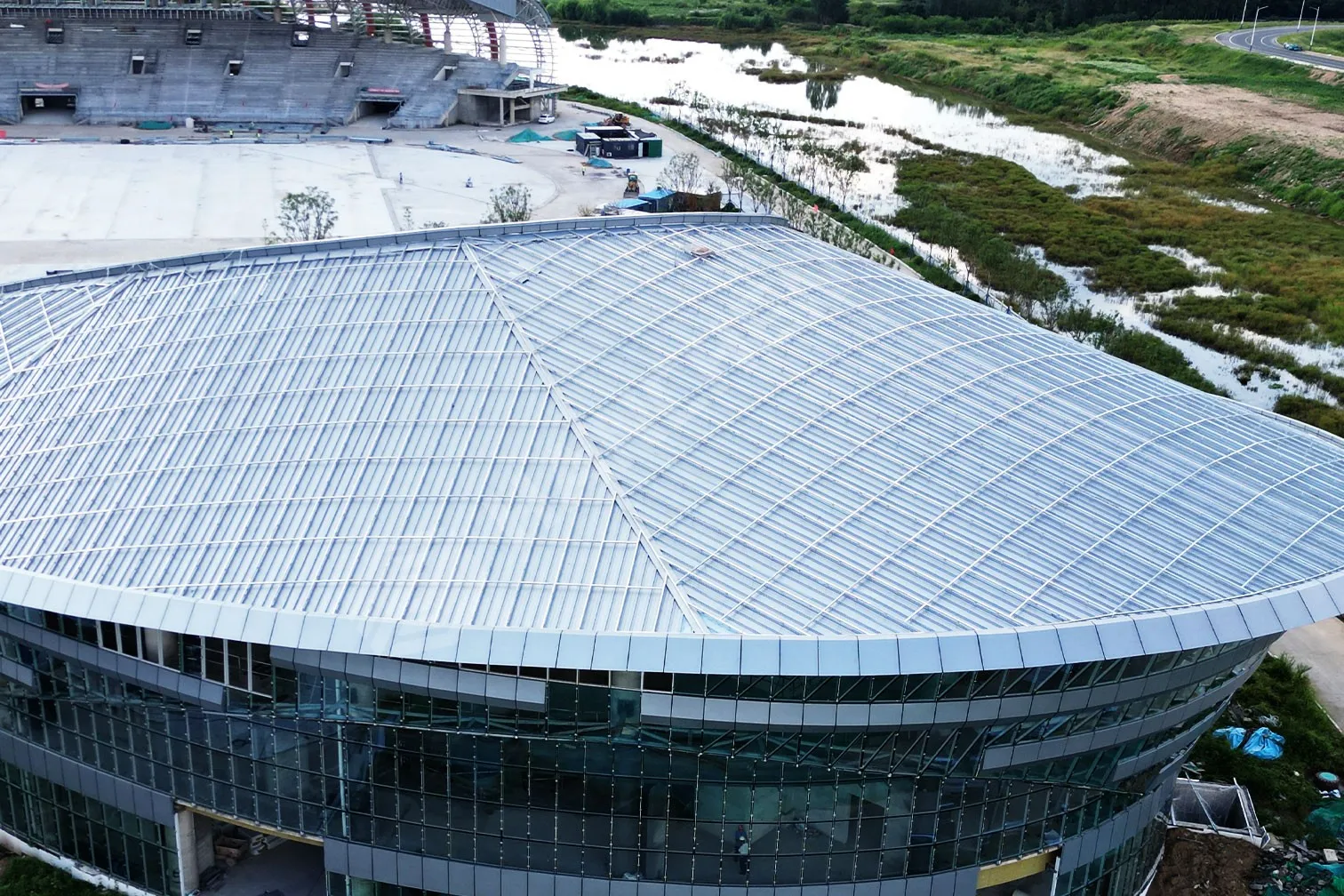

Aluminum Roof System For Modern Sports Arena Project
When a city invests in building a new sports arena, the expectations are always high. The venue is not only a place for games and large-scale events but also a landmark that reflects the city's image and modern design standards. For this reason, the roofing system of the arena was considered one of the most crucial elements. It needed to withstand harsh outdoor conditions, meet strict durability requirements, and deliver a distinctive architectural appearance. Hanchen Metal, as a trusted manufacturer and exporter of color coated aluminum coil, was chosen to provide a complete roofing solution that balanced performance with aesthetics.
The modern sports arena project required a roof that could serve thousands of visitors year-round while offering both strength and style. Hanchen Metal supplied colored aluminum coil and prepainted aluminum coil with customized coatings that ensured long-lasting performance. Panels were produced with a minimum thickness of 1 mm to guarantee structural reliability without adding unnecessary weight. PVDF coating were selected based on the exposure levels of various roof sections. The result was a tailored solution that combined cost-effectiveness with superior resistance against weather and UV radiation.
| Technical Specifications | |
| Parameter | Specification |
| Material Alloy | 3003 H24 / 3004 H24 |
| Coating Type | ≥ 1.0 mm |
| Standard | PVDF coating (25 µm+) for exterior zones; PE coating (18 µm+) for sheltered areas |
| Panel Width | 1000~1600 mm |
| Finish Options | RAL standard colors, metallic and matte finishes available |
| Application Scope | Roofing system, ceiling panels, ACP panels, sandwich panels |
Client Concerns & Our Solutions
Client Concerns
From the early planning stage, the project team emphasized several challenges. First, the roof had to endure extreme weather conditions, including heavy rain, direct sunlight, and strong winds, without fading or corroding. Second, maintenance needed to be minimal, as constant cleaning or repainting would raise operating costs for such a large facility. Another key requirement was that the roof should integrate seamlessly with the rest of the architectural elements creating a unified and modern appearance. Finally, the installation had to be efficient, as delays would have impacted the construction timeline of the entire arena.
Our Solutions
To address these challenges, Hanchen Metal supplied prepainted aluminum coil that combined strength and lightweight benefits. For highly exposed sections of the roof, PVDF coating was applied to guarantee excellent UV resistance and long-term color stability. In semi-sheltered areas, PE coating was chosen to provide reliable protection at a lower cost. The aluminum coils were manufactured with strict flatness and precision standards, making the installation process faster and smoother. In addition, the use of RAL-customized colors allowed the roof design to align with the arena's overall architectural vision, ensuring a bold yet refined appearance.
Recommendation for Industry Peers
This arena roofing project illustrates why colored aluminum coil, especially prepainted aluminum coil with PVDF coating, is an ideal choice in modern sports and public structures. Architects, builders, and facility managers should consider the following best practices:
Thickness
Specify a minimum thickness of 1 mm for strength without excessive weight.
Coating Type
Use PVDF coating on highly exposed surfaces to maintain color and finish long term.
Color Performance
Leverage RAL color customization to unify roofing with ACP panels, sandwich panels, and other architectural elements.
Using Environment
Rely on colored aluminum coil for its lightweight, corrosion-resistant, and low-maintenance qualities.
