Products Description
Carved Aluminum Cladding Panel make the building be more artistic, modern, fashionable with designed perforated patterns.
This unique product also provides an open area creating the effect of a translucent screen to provide passive solar shading, control light and sound pollution, air movement. This kind of panels can be orientated horizontally, vertically or diagonally based upon the design.
Materials: aluminum alloy(3003-H24)
Common Thickness: 2.0mm, 2.5mm and 3.0mm. Custom thickness is also available.
Max Size: 1300mm*4500mm. Larger customized sizes can be also available.
Finish/Color: Available finishes/colors can customize according to requirements
This unique product also provides an open area creating the effect of a translucent screen to provide passive solar shading, control light and sound pollution, air movement.
Carved Aluminum Cladding Panel make the building be more artistic, modern, fashionable with designed perforated patterns.
This unique product also provides an open area creating the effect of a translucent screen to provide passive solar shading, control light and sound pollution, air movement. This kind of panels can be orientated horizontally, vertically or diagonally based upon the design.
Advantage Of Carved Aluminum Cladding
-Customized patterns
-Lightweight & easy to handle
-Durable finish/color guarantee
-Environment friendly. Recyclable materials.
-Easy to install & clean, low maintenance and time efficient
Hot Tags: Carved Aluminum Cladding, China Carved Aluminum Cladding manufacturers, suppliers, factory,
Products parameters
| PE Aluminium sheet | |
|
Single Color Coated Aluminum Alloy Metal Roof Panels Parameter |
|
|
Painting coating |
Top:15~18μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 35+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
3T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |
|
PVDF Aluminium sheet |
|
|
Parameter |
|
|
Painting coating |
Top:20μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 25+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
1T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |

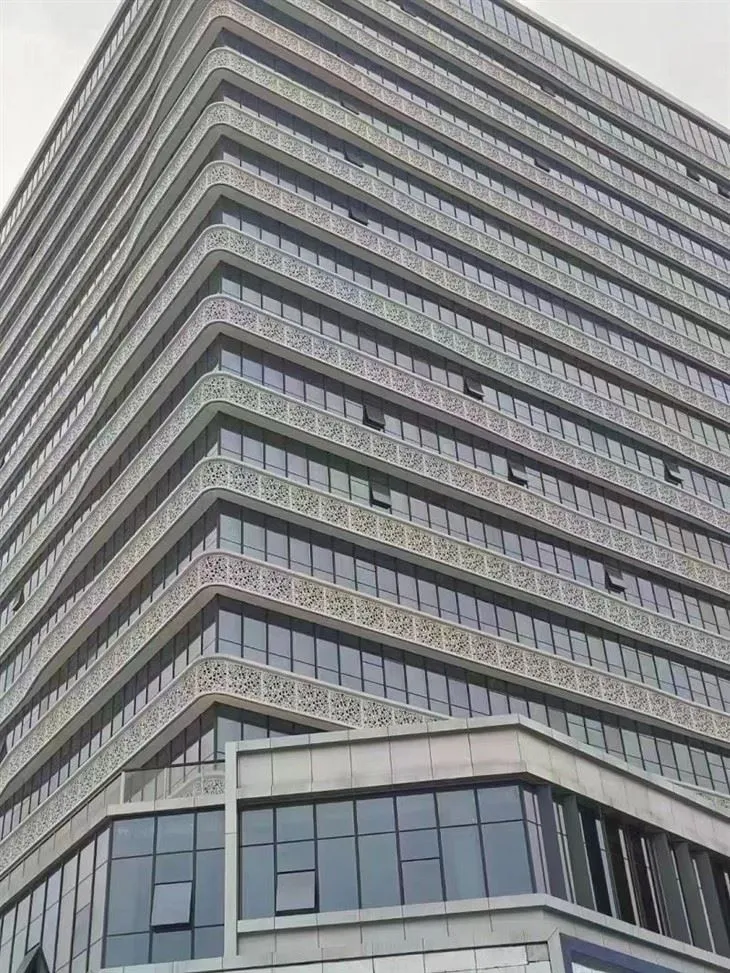

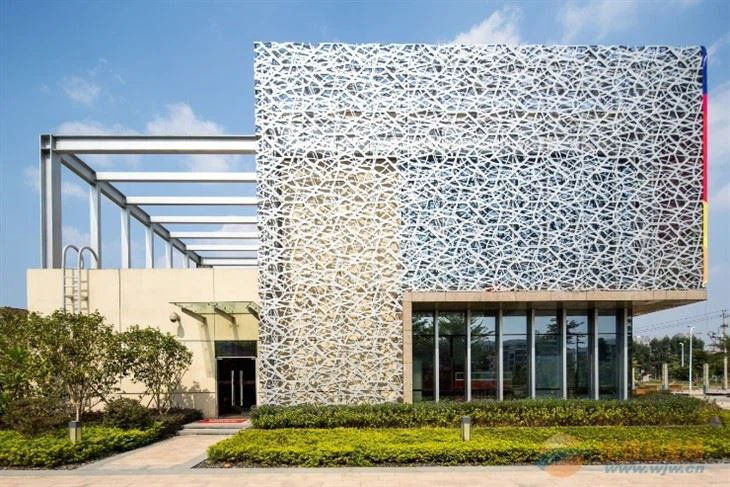

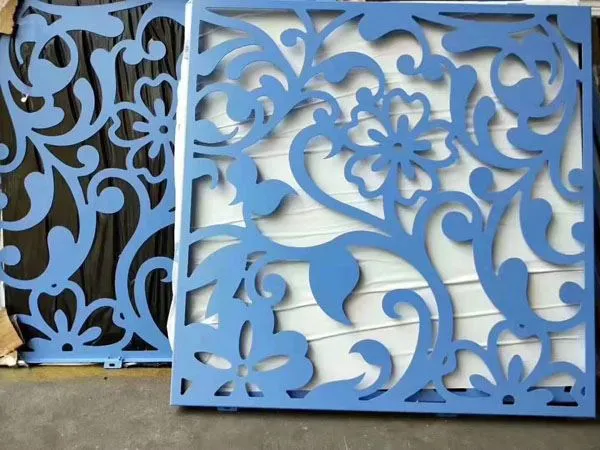

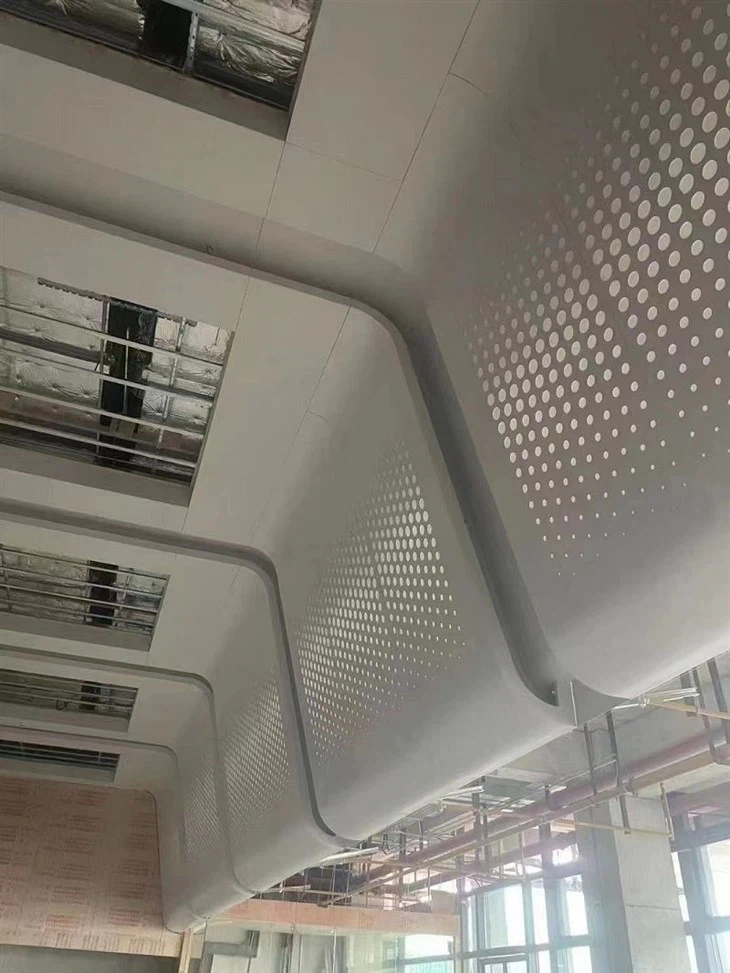

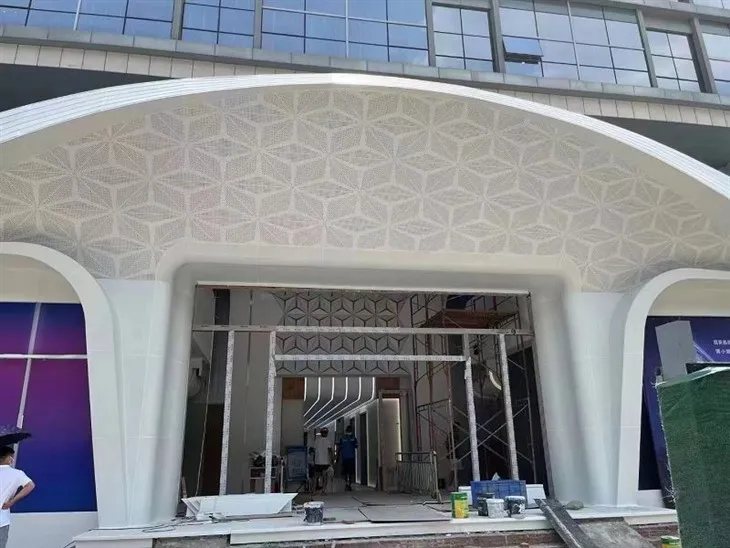

cases Picture
Our factory
workshop
workshop
workshop
workshop
