Products Description
The customized Painted Aluminum Cladding is made of 3004, 3003, and 1100 Southwest aluminum plates, which are formed by precision sheet metal, and then are degreasing, derusting, decontamination, cadmium, and film. The surface is sprayed with Tiger brand, PPG, and Aksu fluorocarbon paint. Aluminum Cladding for exterior wall.
The outer wall aluminum cladding is mainly composed of fluorocarbon pure aluminum plate, reinforcing ribs, hanging ears, etc., and rock wool board can also be attached to the back to play a role in heat preservation and heat insulation. It has the advantages of high weather resistance, wind pressure resistance, flat surface, firmness, light weight, convenient transportation, simple installation, low cost, beautiful appearance, strong metal texture, and recyclability.
The exterior wall aluminum cladding can be divided into general flat panel and special-shaped panel according to the shape, which can be made into a variety of shapes. The thickness is usually 2.0mm, 2.5mm, 3.0mm, and the size is customized according to requirements.
The customized Painted Aluminum Cladding is made of 3004, 3003, and 1100 Southwest aluminum plates, which are formed by precision sheet metal, and then are degreasing, derusting, decontamination, cadmium, and film.
The surface is sprayed with Tiger brand, PPG, and Aksu fluorocarbon paint. Aluminum veneer for exterior wall.
PROVIDE SPECIFICATIONS
1. Conventional size
The general specifications and dimensions of aluminum cladding are as follows, other specifications and dimensions can also be negotiated between the supplier and the buyer.
Alloy: 1100 H24, 3003 H24
Thickness: 1.8-3.0 mm
Length: 2000, 2440, 3000, 3200, etc., in mm.
Width: 1220, 1250, 1500, etc., in mm.
2. Specifications and dimensions of special-shaped plates
The specifications and dimensions of the special-shaped board can be negotiated by the supplier and the buyer.
3. Coating types:
Polyester powder spraying, fluorocarbon powder spraying, stone-like powder spraying, etc.
Products parameters
| PE Aluminium sheet | |
|
Single Color Coated Aluminum Alloy Metal Roof Panels Parameter |
|
|
Painting coating |
Top:15~18μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 35+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
3T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |
|
PVDF Aluminium sheet |
|
|
Parameter |
|
|
Painting coating |
Top:20μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 25+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
1T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |

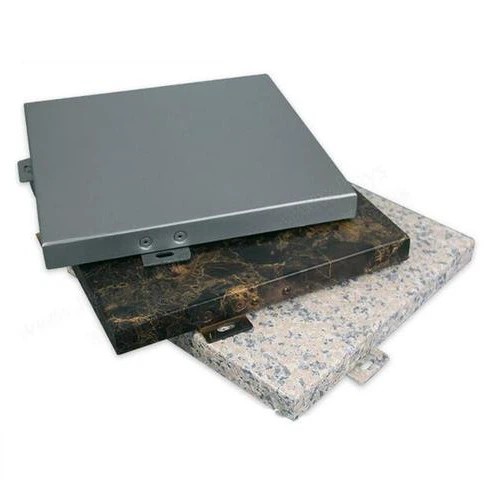

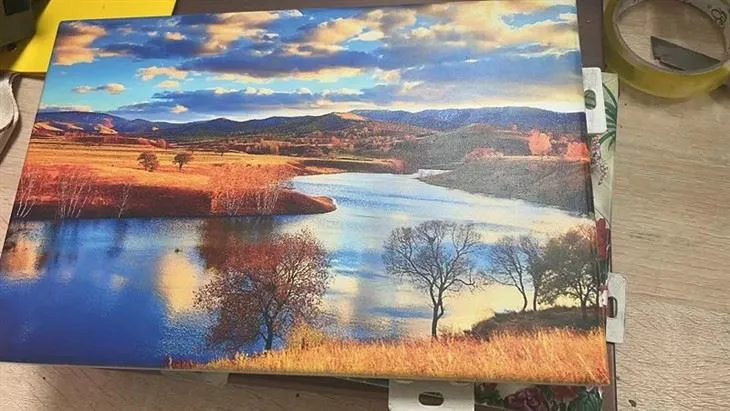

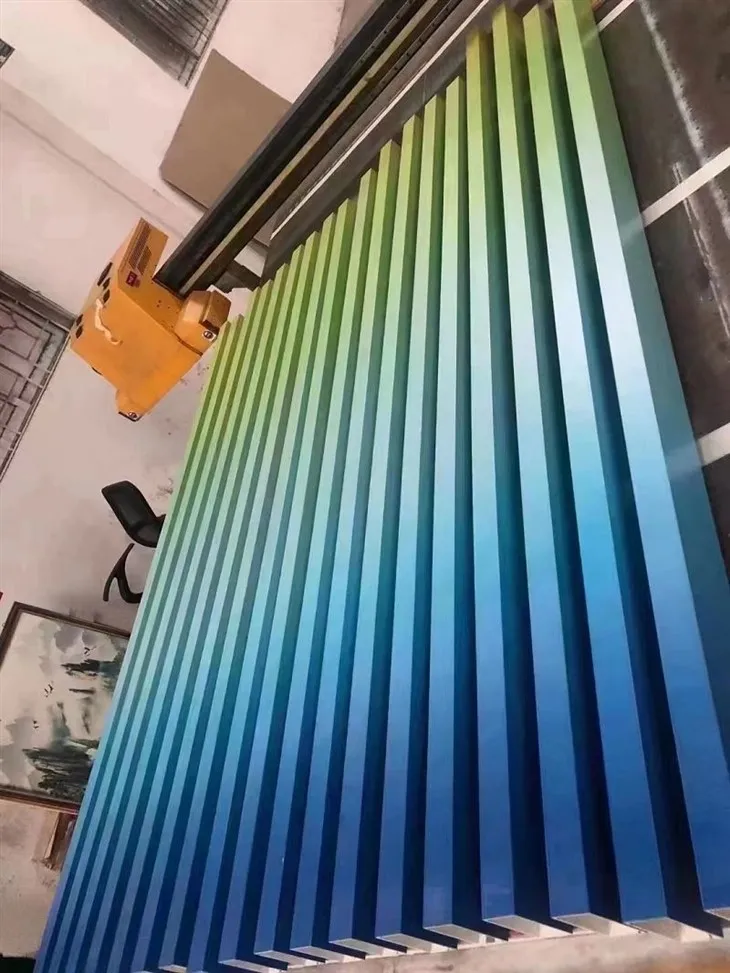

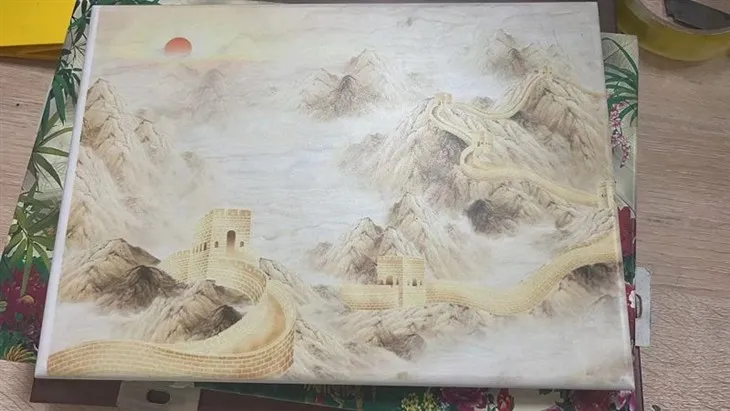

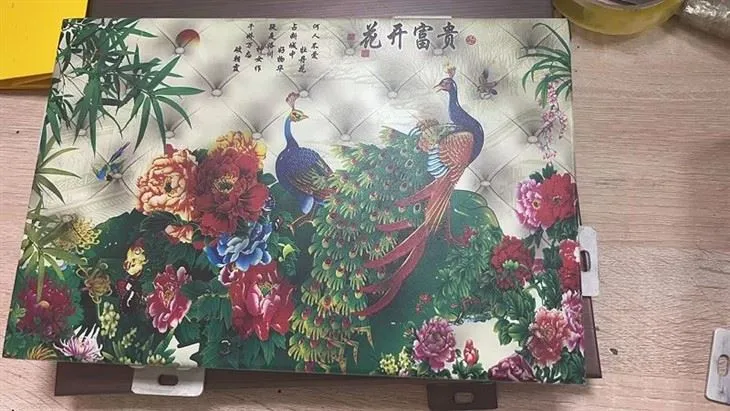

Product Picture
Our factory
workshop
workshop
workshop
workshop
