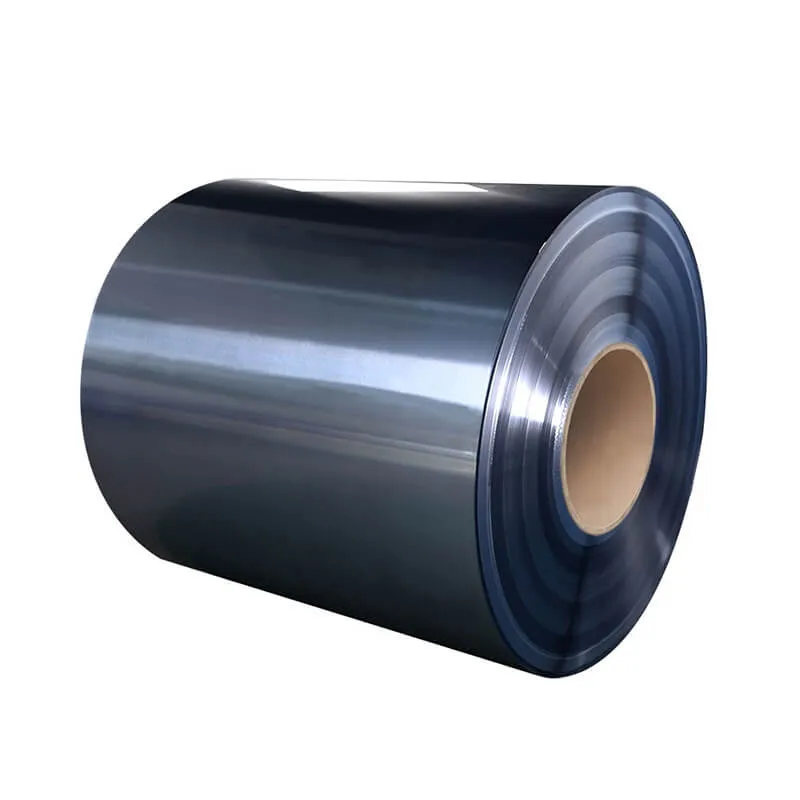

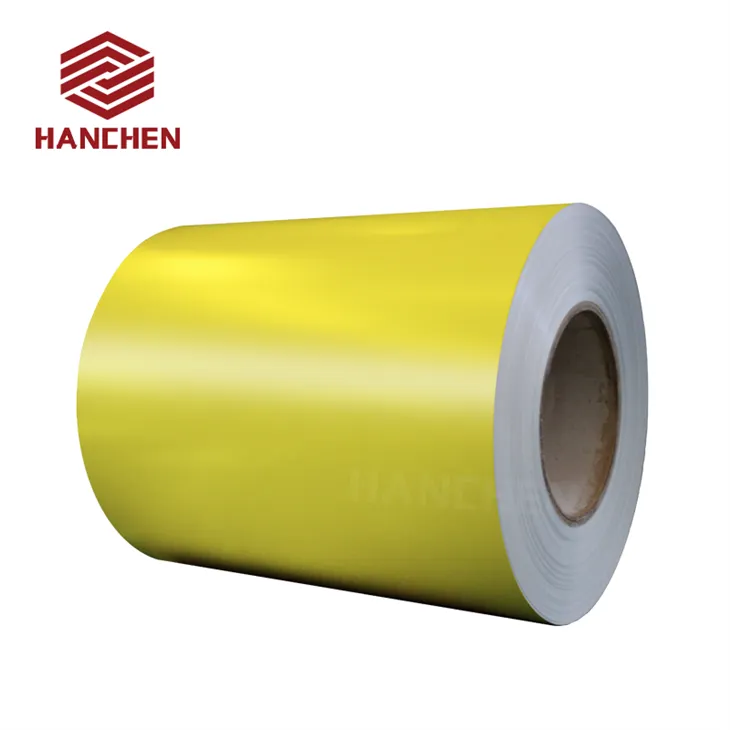

Products Description

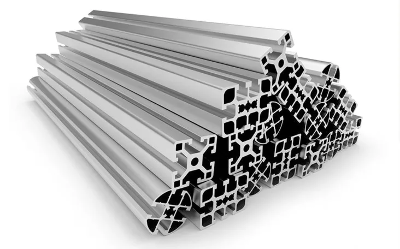

1050 aluminum coil is non-heat treatment series is produced in extruded sections. It has high ductility and high reflective finish. Besides and excellent cold workability, braze-ability and solder-ability, and it is strengthened by cold working. compared to more significantly alloyed metals,1050 aluminium coil has low mechanical strength .

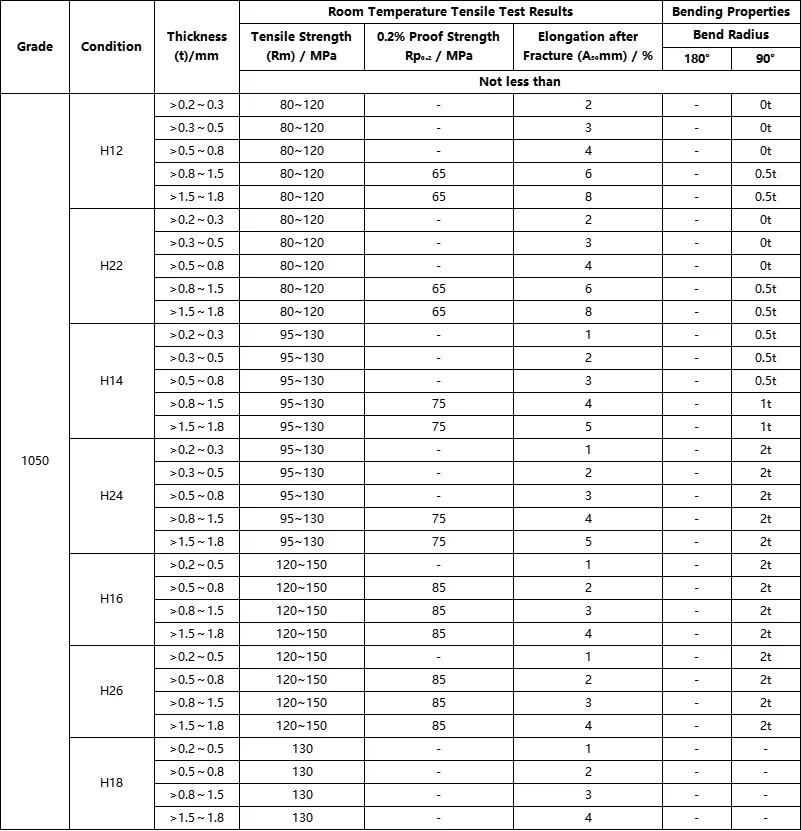

Mechanical Property Limits
Chemical Composition
| 1050 | Si | Fe | Cu | Mn | Mg | Ti | Zn | Other | Total Aluminum Min |
| 0.25 | 0.4 | 0.05 | 0.05 | 0.03 | 0.03 | 0.05 | 0.05 | 99.5 |
Technical Parameters
| Thickness(mm) | 0.15-2mm |
| Width(mm) | Max1600mm |
| Surface | Brushed,Mirror,Embossed, Sandblasted,etc |
| Temper | H14,H24,H16,H26,H18 |
| Type | Coil/Sheet |
Advantages
With high plasticity, corrosion resistance, electrical conductivity and thermal conductivity,easy to withstand a variety of pressure processing and bending, extension
Long service life, lower cost, but also has a high recovery value
1050 aluminum roll processing technology is mature, the price relative to other high-grade aluminum alloy has a huge advantage.
Applications Of 1050 Colored Aluminum Coil
1050aluminum coil is known for its excellent corrosion resistance, high thermal and electrical conductivity, good formability, and weldability, is commonly used in various applications such as lighting equipment,heat sink, sign, nameplate, roofing, ceiling, decoration, electronic products, and more.
Lighting equipment

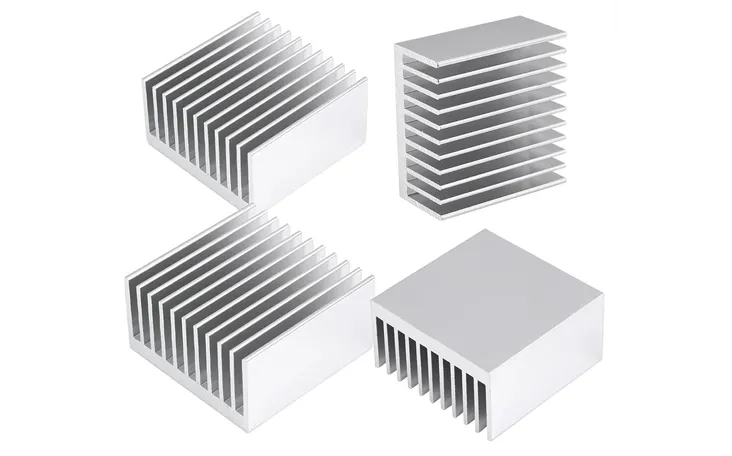

Heat Sink

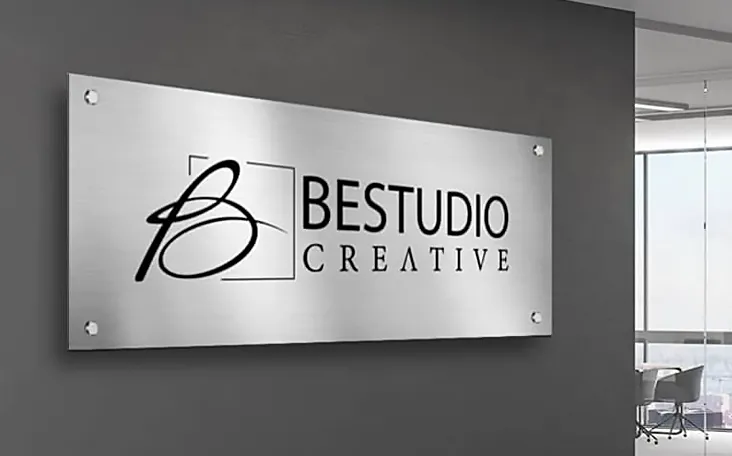

Sign
Nameplate

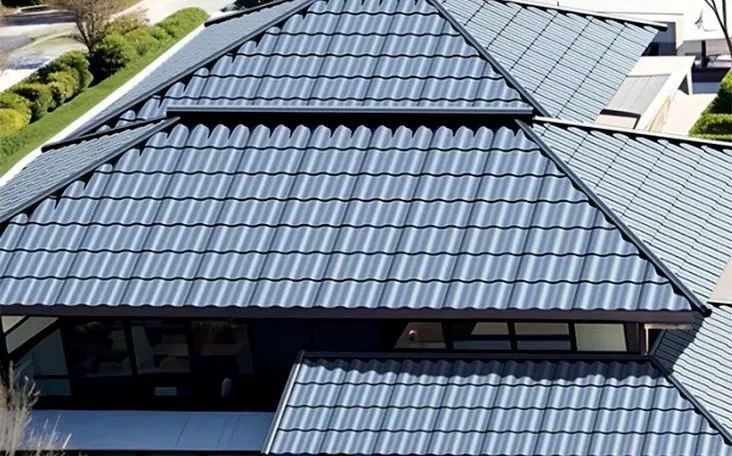

Roofing

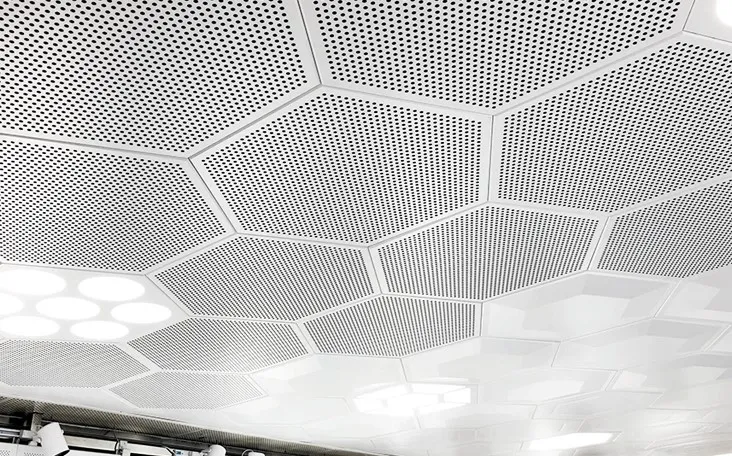

Ceiling
Table shell
Stamping Part
Why Choose Us?
HanChen Metal Only focus on producing high level prepainted aluminum coils

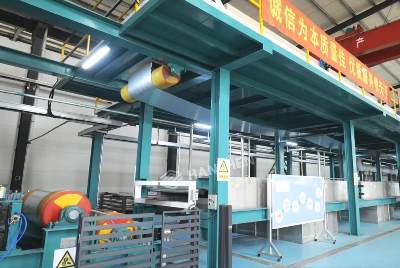

Shandong Hanchen Metal Co.,Ltd is a professional color coated aluminum manufacturer integrating production, sales and trade. We have professional two automatic production lines with four-roller coating equipment. The whole production process has strict quality control and inspection. Our main products are aluminum coils and prepainted aluminum coils,widely used in metal roofing, aluminum ceiling, aluminum composite panel, aluminum sandwich panel, aluminum honeycomb panel and so on.
Strict Quality Control

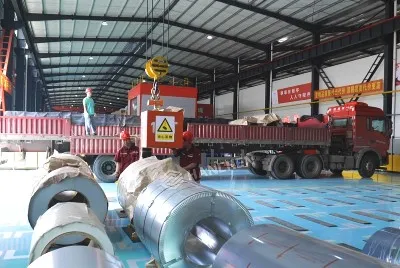

Supply Capabilities
One-Stop Services
Products Display For Roofing Sysyem
