Name: China Customized 1060 Colored Aluminum Coil Manufacturers Suppliers - Factory Direct Price
Brand: Hanchen
SKU: 240660432

Products Description For 1060 Colored Aluminum Coil

1060 aluminum coil has high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, good elongation and tensile strength, and can meet conventional processing requirements, but its strength is low, heat treatment cannot strengthen it, and its machinability is poor. It is often used in billboards, building exterior decoration, bus bodies, kitchen sinks, lamp holders, fan blades, electronic parts, chemical instruments, thin plate processing parts, welding parts, nameplates, kitchen utensils, decorations, reflective appliances, etc.

chemical component

1060	Si	Fe	Cu	Mn	Mg	Ti	Zn	Other	Total Aluminum Min

	0.25	0.35	0.05	0.03	0.03	0.03	0.05	0.05	99.6

Mechanical property Limits

Grade	Condition	Thickness (t)/mm	Tensile Strength (Rm) / MPa	Elongation after Fracture (A₅₀mm) / %
1060	O	>0.2～0.3	55~95	≥15
		>0.3～0.5	55~95	≥20
		>0.5～0.8	55~95	≥25
		>0.8～1.3	55~95	≥30
		>1.3～10	55~95	≥35
	H12	>0.2～0.3	70~110	≥2
		>0.3～0.5	70~110	≥3
		>0.5～0.8	70~110	≥4
		>0.8～1.3	70~110	≥6
		>1.3～2.9	70~110	≥8
		>2.9～4.5	70~110	≥9
	H14	>0.2～0.3	85~120	≥1
		>0.3～0.5	85~120	≥2
		>0.5～0.8	85~120	≥3
		>0.8～1.3	85~120	≥4
		>1.3～2.9	85~120	≥5
		>2.9～4.5	85~120	≥6
	H16	>0.2～0.5	100~135	≥1
		>0.5～0.8	100~135	≥2
		>0.8～1.3	100~135	≥3
		>1.3～4.5	100~135	≥4
	H18	>0.2～0.5	≥120	≥1
		>0.5～0.8	≥120	≥2
		>0.8～1.3	≥120	≥3
		>1.3～4.5	≥120	≥4
	H22	>4.5～6.5	≥75	≥13
		>6.5～12.5	≥70	≥15
		>12.5～25	≥60	-
		>25～80	≥55	-
	F	>4.5～150	-	-

Technical Parameters

Thickness(mm)	0.15-2mm
Width(mm)	Max1600mm
Surface	Coating,Brushed,Mirror,Embossed, Sandblasted,etc
Coating	PE,PVDF
Temper	O,H12,H22,H14,H24,H16,H26,H18,H122,F
Type	Coil/Sheet

Products Advantages

good electrical and thermal conductivity

1060 colored aluminum coil has good electrical and thermal conductivity,second only to silver, copper and gold.

High corrosion resistance

1060 colored aluminum coil has good corrosion resistance in media such as petroleum, ethanol (alcohol), acetone, acetaldehyde, benzene, toluene, xylene, kerosene, etc.

Easy to process

1060 colored aluminum coil is easy to process. After adding certain alloy elements, it has good casting performance and good processing plasticity.

High cost performance

The production process of 1060 colored aluminum coil is simple and mature. It is used in products with low strength requirements and has lower cost than other alloys.

Hanchen Matal Company Profile

Factory Direct Supply

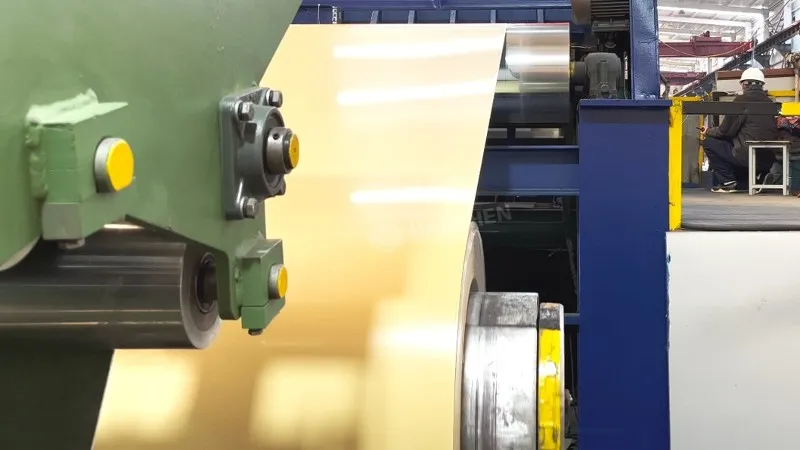

Advanced four-roller coating lines and two automatic production lines boost efficiency and ensure high-quality color-coated aluminum coils.

Strict Quality Control

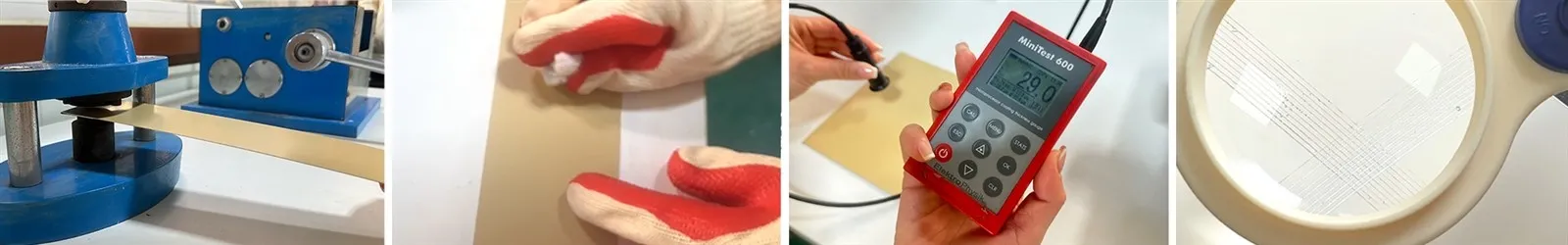

Strict quality control plus third-party inspections (e.g., QIMA) ensure all color-coated aluminum coils meet high standards.

Supply Capabilities

Annual output of 300,000MT allows fast delivery to multiple customers simultaneously while maintaining product quality.

One-Stop Services

Professional sales team provides prompt pre-sales and after-sales support and offers customized solutions to meet client needs.

Why choose Hanchen Metal

Provide high level colored aluminum coil and personalized customized services

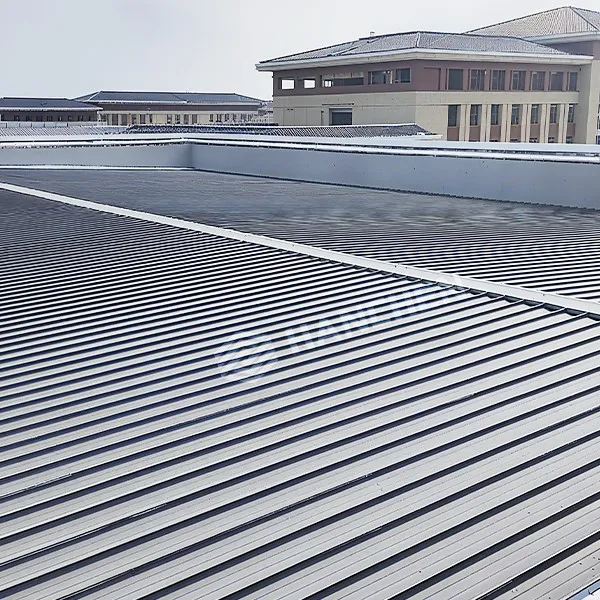

Shandong Hanchen Metal Co.,Ltd is a professional color coated aluminum manufacturer integrating production, sales and trade. We have professional two automatic production lines with four-roller coating equipment. The whole production process has strict quality control and inspection. Our main products are aluminum coils and prepainted aluminum coils,widely used in metal roofing, aluminum ceiling, aluminum composite panel, aluminum sandwich panel, aluminum honeycomb panel and so on. We are committed to providing customers with high-standard products and satisfactory services and highly efficient solutions.

Our Factory & Equipment
