Stone Grain Aluminum Wall Panel
video
Stone Grain Aluminum Wall Panel

Stone Grain Aluminum Wall Panel

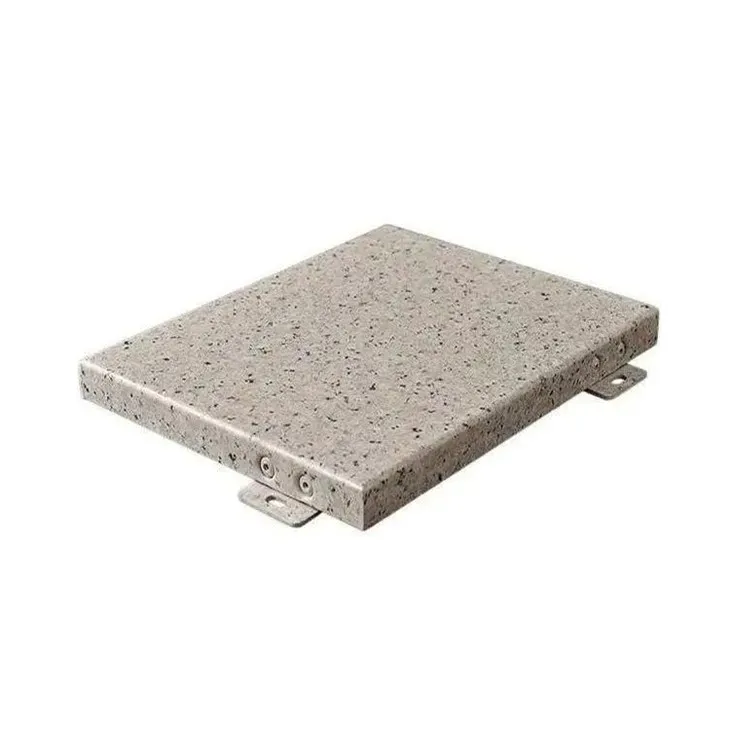

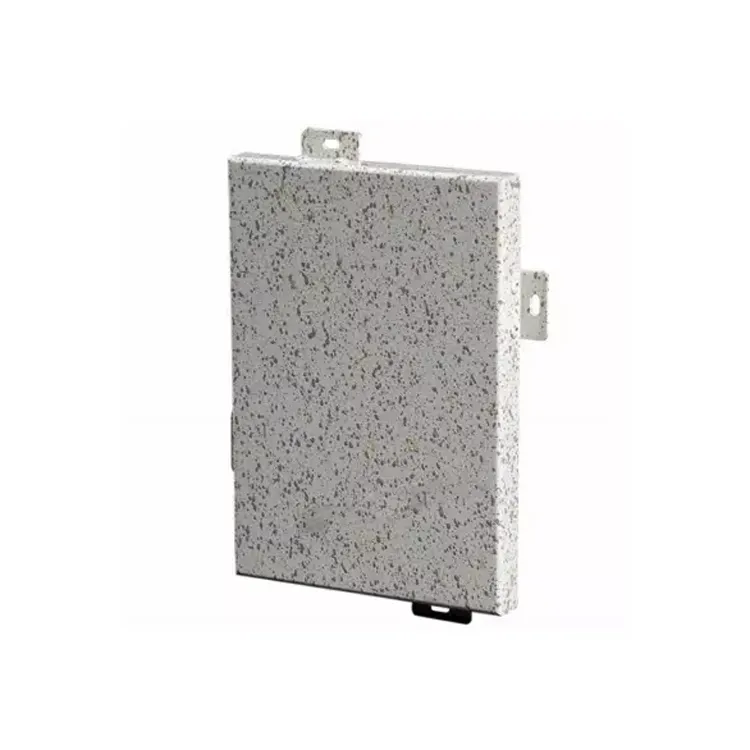

Stone grain Aluminum Wall Panel is an exterior wall material that looks like natural stone but is actually made of aluminum alloy. Its surface has been treated with stone patterns, which can present natural textures and colors, and integrate with the outdoor environment, greatly improving the aesthetics and sense of class of the building.
Products Description

Material: PE or PVDF coated 3003 or 3004 Al alloy coil

Stone grain Aluminum Wall Panel is an exterior wall material that looks like natural stone but is actually made of aluminum alloy. Its surface has been treated with stone patterns, which can present natural textures and colors, and integrate with the outdoor environment, greatly improving the aesthetics and sense of class of the building. Due to the use of aluminum alloy materials, it also has a variety of excellent characteristics, which meets the current market requirements for environmental protection, practicality, and durability.

3

Stone grain Aluminum Wall Panel is an exterior wall material that looks like natural stone but is actually made of aluminum alloy. Its surface has been treated with stone patterns, which can present natural textures and colors, and integrate with the outdoor environment, greatly improving the aesthetics and sense of class of the building.

2

Short standing seams roof panel : 25-330 ,25-430 ,25-530type, which is suitable for buildings with large slopes and small areas. The molding is simple, and the construction is safe and fast. The overall waterproof performance is good, without any perforation and exposed rivets, and the appearance is very beautiful.

Stone Grain Aluminum Wall Panel Features Include:

1. Significantly improve the appearance of the building: the appearance is very similar to the large stone surface, thus giving the building a higher grade and aesthetics.
2. Easy to install: it is lightweight, and the installation process can be realized without adhesives or any nails, which is simple and convenient, and reduces labor costs.
3. Durable: It is made of aluminum alloy, coated with special roller coating, which has certain anti-corrosion and anti-ultraviolet characteristics, is not easy to oxidize, and has a long service life.
4. Environmental protection: Aluminum alloy materials are environmentally friendly and low-carbon. Using Stone grain Aluminum Wall Panel can better reduce the environmental impact of buildings and reduce carbon emissions.
5. Easy to maintain and clean: it is not easy to adhere to dust and dirt, and the surface is smooth. It can be cleaned with clean water, which is convenient and quick.
As a kind of new type of exterior wall material, has excellent performance, distinctive features, and a wide range of applications. It can be used not only in high-rise buildings, shopping centers, stadiums and other public projects, but also in civil buildings such as villas and high-end residences. It is a high-quality choice for modern architectural decoration.

Products parameters
PE Aluminium sheet

Single Color Coated Aluminum Alloy Metal Roof Panels Parameter

Painting coating

Top:15~18μm Back:5μm

Color

According to customer request

Glossiness

Standard: 35+1-5

Cross-cut adhesion

The paint film does not fall off

T-bend test

3T- the paint film does not fall off

Reverse impact

9J -the paint film does not fall off

MEK test

Butanone MEK wiped back and forth 100 times without damage to the paint film

Heat and humidity resistance

Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness

Acid and alkali resistance

Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance

Neutral salt spray resistance

Neutral salt spray test for 1000 hours

UV lamp accelerated aging test

OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.



PVDF Aluminium sheet

Parameter

Painting coating

Top:20μm Back:5μm

Color

According to customer request

Glossiness

Standard: 25+1-5

Cross-cut adhesion

The paint film does not fall off

T-bend test

1T- the paint film does not fall off

Reverse impact

9J -the paint film does not fall off

MEK test

Butanone MEK wiped back and forth 100 times without damage to the paint film

Heat and humidity resistance

Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness

Acid and alkali resistance

Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance

Neutral salt spray resistance

Neutral salt spray test for 1000 hours

UV lamp accelerated aging test

OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects.





Product Picture

stone-grain-aluminum-wall-panelddfdf23a-de9d-4ffc-ab42-b836fd1403b8

2





Our factory
20230404085632

workshop

20230414111705

workshop

20230404085733

workshop

20230414111645

workshop



Hot Tags: stone grain aluminum wall panel, China stone grain aluminum wall panel manufacturers, suppliers, factory
