In the field of modern construction and industrial manufacturing, color coated aluminum sheets and coils have become indispensable materials for roofing, curtain walls, ceilings, sandwich panels, and aluminum composite panels (ACP). One of the most important quality indicators that determines their performance is thickness tolerance. A precise thickness tolerance ensures smooth processing, reliable bonding, structural strength, and long-term durability.
Industry Standards and Key Indicators
According to GB/T 3880.3-2024 for general industrial aluminum plates and strips, combined with the needs of the building materials industry, the standard system for prepainted aluminum sheets is as follows:
Thickness ≤1.0mm: ±0.02mm tolerance (high precision)
1.0–3.0mm: ±0.05mm tolerance (regular precision)
≥3.0mm: ±0.10mm tolerance (construction-grade precision)
For special applications such as aerospace or ultra-precise processing, tolerance can reach as strict as ±0.01mm or even ±0.005mm, requiring specialized rolling technology.
Different Applications Require Different Precision

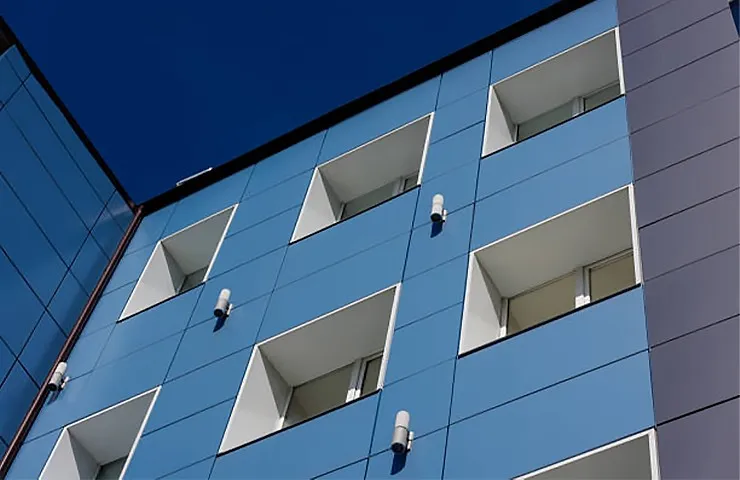

ACP (Aluminum Composite Panel) Production
In ACP manufacturing, thickness consistency is critical to ensure flatness and bonding strength. Tests show that when color coated aluminum coils are controlled at ±0.015mm:
- Composite bubble rate is reduced by 60%
- Panel waviness ≤0.3mm/2m
By contrast, with looser tolerance at ±0.03 mm, higher risks of delamination are observed.

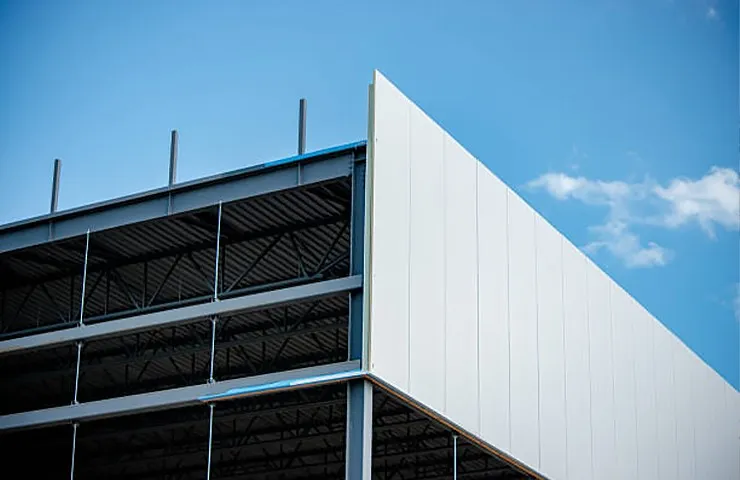

Sandwich Panel Manufacturing
Sandwich panels, widely used in industrial buildings and airports, consist of multi-layer structures. For these, the thickness tolerance is:
- Surface aluminum sheet: ±0.05mm
- Overall panel thickness: ±0.1mm
Case Reference: In the Beijing Daxing International Airport project, stricter tolerance control improved wind pressure resistance by ~40% compared to panels produced with regular tolerance.

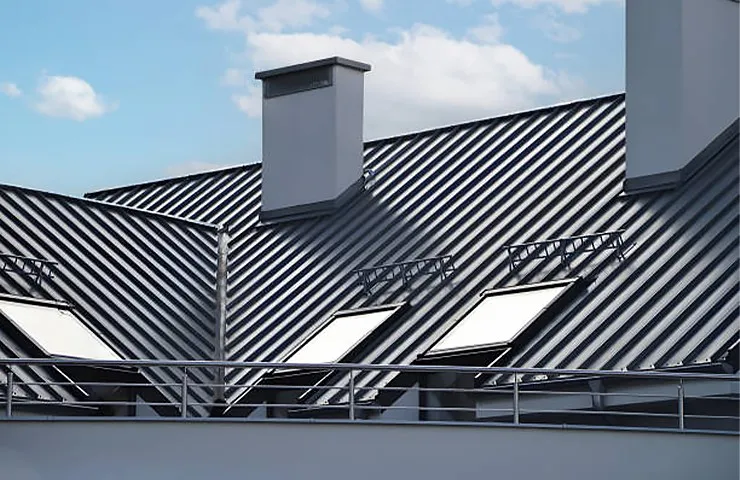

Roofing Applications
Roofing systems face unique challenges such as wind load and thermal expansion. In this case:
- Standard tolerance: ±0.1mm
- Special high-load areas: ±0.08mm
Case Reference: A Guangzhou project reported 2 mm deformation after 5 years of service with precision-controlled aluminum roofing panels, compared to over 4 mm deformation using standard tolerance products.
Technological Breakthroughs at Hanchen Metal

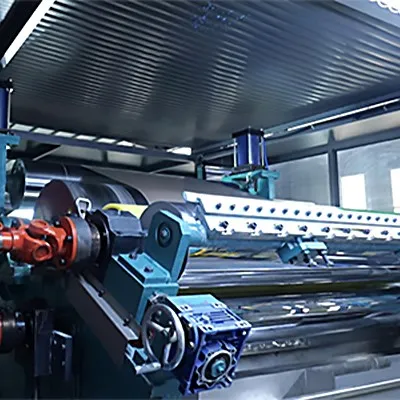

Hanchen Metal's prepainted aluminum coils are manufactured using Germany's SMS 20-high precision rolling mill, achieving remarkable accuracy:

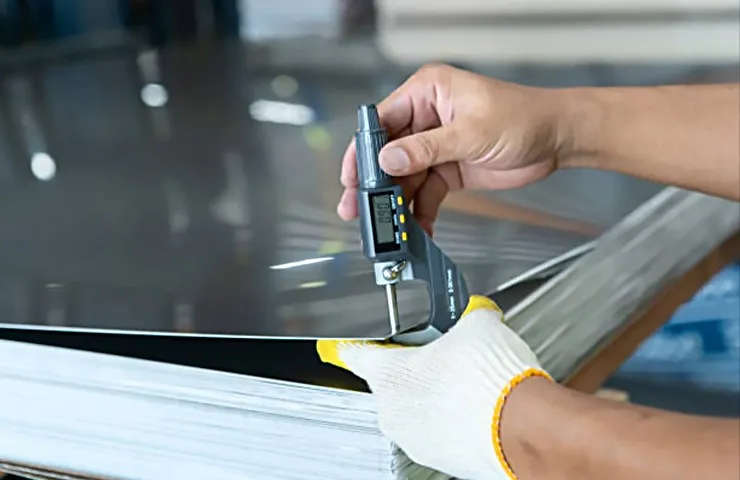

- Thickness Control System: Online laser thickness gauges with ±0.001mm precision and real-time closed-loop control keep thickness variation within ±0.015mm over 10,000 meters.
- Material Optimization: Using AA3003 H24 aluminum alloy provides ~15% higher yield strength compared with general-purpose alloys.
- Coating Performance: In QUV accelerated aging tests (ASTM D4587), PVDF-coated samples achieved ΔE ≤2.0 after 4000 hours.
- Traceability: Each coil is delivered with a full inspection report, including thickness, T-bend performance (ASTM D4145), and adhesion test (GB/T 9286-2021)
| Dimension | Industry Average | Hanchen Metal | Advantage |
|---|---|---|---|
| Thickness Precision | ±0.05mm | ±0.015mm | 67% better |
| Processing Yield Rate | 92–95% | 99.2% | 4–7% higher |
| Project Service Life | 10–15 years | 18–20 years | 50% longer |
| Cost Efficiency | Baseline 1.0 | 0.82 | 18% savings |
Professional Procurement Recommendations
For ACP manufacturers
Select 0.5–0.8mm coils with multi-point thickness reports and T-bend performance at 0T.
For sandwich panel producers
Use 1.0–1.2 mm sheets for standard building projects, and 1.5–2.0 mm for transportation or high-load applications. Match expansion coefficients between core and aluminum layers.
For roofing panel processors
Choose ≥1.0 mm coils for slopes ≤10°, and reinforced edges for high-wind regions. Wind tunnel testing and SGS/CMA third-party certifications are strongly recommended.
The thickness tolerance of color coated aluminum sheets and coils is more than just a technical number-it directly impacts safety, performance, and long-term costs. By adopting advanced rolling and coating technologies, Hanchen Metal provides customers with materials that meet the most demanding precision requirements in ACP, sandwich panels, and roofing systems.
