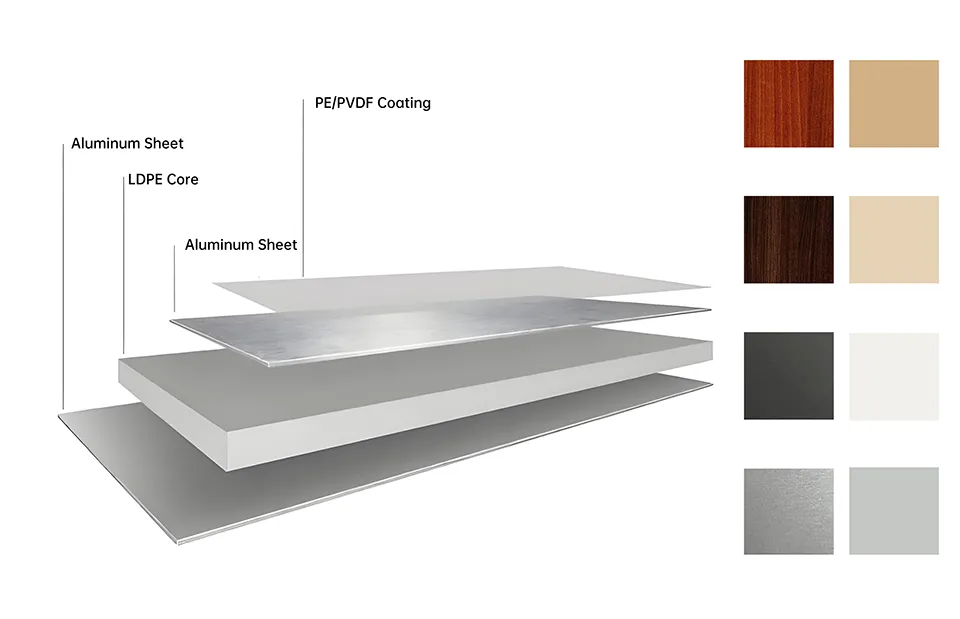

Aluminum Composite Panels (ACP) have become a common building material in modern architecture, interior decoration, and signage due to their lightweight structure, high strength, and aesthetic appeal. Among the key components of ACP panels, the color-coated aluminum coil serves as the surface material, directly influencing the panel's durability, appearance, and overall performance. Selecting the most suitable color-coated aluminum sheet is critical for manufacturers aiming to produce high-quality ACP panels with competitive market value.
Key Advantages of Color-Coated Aluminum Coils
Color-coated aluminum coils combine a robust aluminum substrate with a durable coating layer, offering excellent physical and chemical properties:
Weather Resistance
PVDF color-coated aluminum coils have passed 4000-hour UV accelerated aging tests with ΔE≤2.0, far exceeding the national standard of ΔE≤5.0. Outdoor exposure tests show that PVDF-coated ACP panels maintain over 70% gloss retention after 20 years, significantly outperforming PE-coated panels, which typically last 3-5 years.
Corrosion Resistance

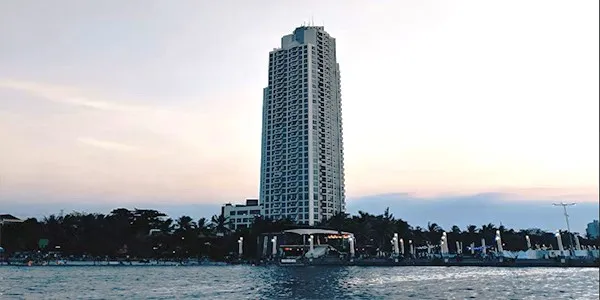

Neutral salt spray testing demonstrates over 1000 hours without substrate corrosion, while acidic salt spray tests (pH3.5) reach 500 hours, making them ideal for industrial and coastal applications. Notably, the coastal tower construction façade using PVDF color-coated aluminum coils shows no corrosion after 8 years.
Mechanical Performance
Coating adhesion reaches 0 grade (GB/T 9286), T-bend tests achieve 0T (180° bend without cracking), and impact resistance withstands 9J energy without coating failure (GB/T 1732).
Environmental Conditions
- Outdoor curtain walls require PVDF color-coated aluminum coils with fluorocarbon content ≥70% for long-term weather resistance and color stability.
- Indoor applications or short-term projects can use PE color-coated aluminum sheets, reducing costs by 20-30%.
Thickness and Mechanical Compatibility
- Standard curtain walls: 0.8–1.2mm
- Complex or curved panels: 1.2–2.0mm
- Interior partitions: 0.5–0.8mm
- With an elastic modulus of 69 GPa, high-quality color-coated aluminum coils are easier to bend and press, reducing production defects and scrap rates.
Quality Stability
- Base material: AA3003 aluminum alloy, composition fluctuation ≤0.5%
- Coating thickness tolerance: ±1μm; color difference per coil ΔE≤0.3, batch ΔE≤1.0
- Ensures consistent ACP panel quality in mass production while minimizing maintenance costs.
Professional Procurement Recommendations
Coating Type
Select PVDF for premium façade panels
PE for interior partitions.
Thickness Matching
Choose thickness based on panel size and structural requirements.
Inspection & Certification
Check color consistency, coating thickness, adhesion, and T-bend; consider salt spray and weathering tests; ensure SGS or CMA certification.
Reliable Supplier
Partnering with experienced manufacturers like Hanchen Metal ensures access to free sample testing, customized technical solutions, and stable supply chains.
