Products Description
Wood Grain Aluminum Metal Wall Panel
Material: PE or PVDF coated 3003 or 3004 Al alloy coil
Wood grain aluminum wall panel is an aluminum alloy wall panel that uses high-quality wood grain printing technology to make the surface look like real wood grain, but with more durable and weather-resistant characteristics.
Wood Grain Aluminum Metal Wall Panel is very similar to that of solid wood, but its durability is much higher. It is not easy to break, deform and rot, and it is fireproof, waterproof and anti-corrosion. It also has long-term antioxidant protection for high durability.
Compared with solid wood, wood-grain aluminum alloy wall panels are more environmentally friendly, have a longer service life, and are easier to maintain. It is one of the trends in future interior and exterior architectural design.
Wood Grain Aluminum Metal Wall Panel is very similar to that of solid wood, but its durability is much higher. It is not easy to break, deform and rot, and it is fireproof, waterproof and anti-corrosion. It also has long-term antioxidant protection for high durability.
This kind of wallboard is often used in decoration design, building appearance and billboards, especially for outdoor purposes. Billboards, buildings or other places with wood grain design need to retain the effect of wood grain, and at the same time have a relatively strong Good waterproof, durable, heat-resistant, antibacterial, easy to clean and maintain.
Compared with solid wood, wood-grain aluminum alloy wall panels are more environmentally friendly, have a longer service life, and are easier to maintain. It is one of the trends in future interior and exterior architectural design.
Products parameters
| PE Wood Grain Aluminum Metal Wall Panel sheet | |
|
Single Color Coated Aluminum Alloy Metal Roof Panels Parameter |
|
|
Painting coating |
Top:15~18μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 35+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
3T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |
|
PVDF Wood Grain Aluminum Metal Wall Panel sheet |
|
|
Parameter |
|
|
Painting coating |
Top:20μm Back:5μm |
|
Color |
According to customer request |
|
Glossiness |
Standard: 25+1-5 |
|
Cross-cut adhesion |
The paint film does not fall off |
|
T-bend test |
1T- the paint film does not fall off |
|
Reverse impact |
9J -the paint film does not fall off |
|
MEK test |
Butanone MEK wiped back and forth 100 times without damage to the paint film |
|
Heat and humidity resistance |
Placed in the non-condensing damp heat test chamber for 1000 hours, no bubbles, cracks, peeling off of the paint film, no change in color, gloss and hardness |
|
Acid and alkali resistance |
Soaked in 5% hydrochloric acid for 24 hours, no obvious change in appearance Soaked in 5% sodium oxide for 24 hours, no obvious change in appearance |
|
Neutral salt spray resistance |
Neutral salt spray test for 1000 hours |
|
UV lamp accelerated aging test |
OUVA-340 UV lamp test box 2000 hours of light, no bubbles, cracks and other defects. |

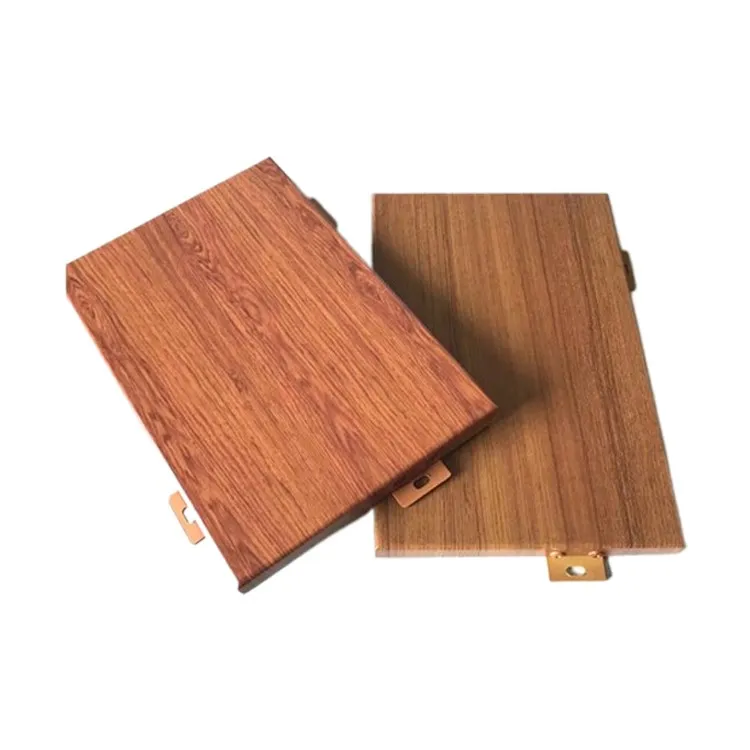

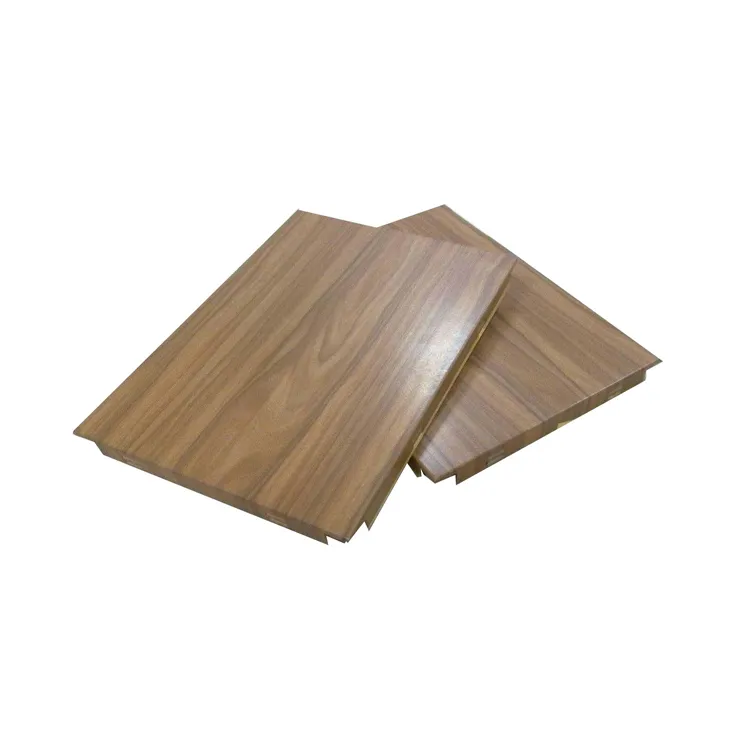

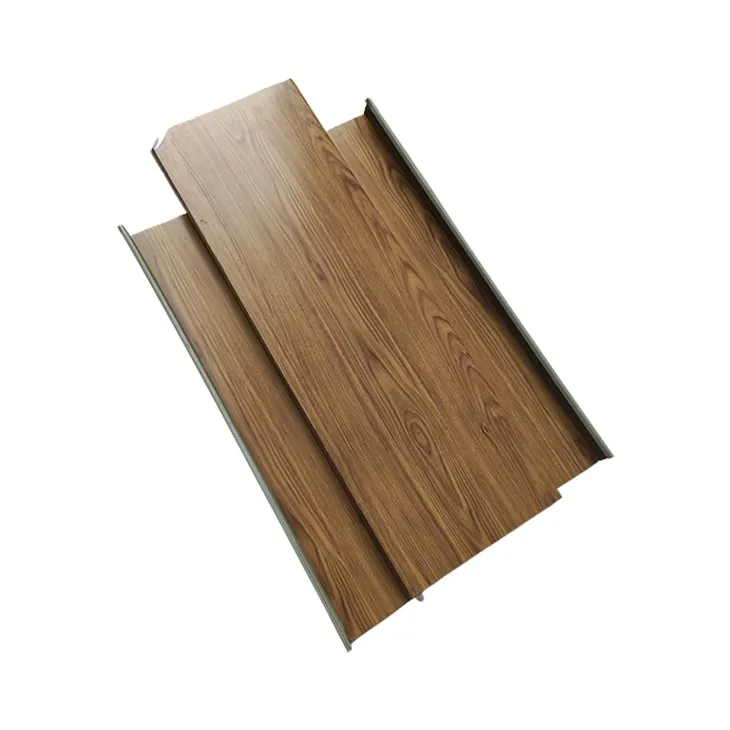

Product Picture
Our factory
workshop
workshop
workshop
workshop
