Products Description of Colored Aluminum Coil For Roofing Panels
The aluminum roof system mainly uses 3000 series color coated aluminum coils(such us 3003,3004). The elongation, hardness, tensile strength, yield strength and other indicators of the 3000 series aluminum-manganese alloy are very suitable for the processing and painting of roof hemming, rolling equipment, and are widely used in building exterior maintenance projects such as roof/wall systems. It improves the corrosion resistance of the aluminum coil itself and makes the building appearance colorful.
Product Features of Color Coated Aluminum Coil For Roofing Panels
The thickness of the commonly used color coated aluminum coil for roofing panels is 0.7-1.2mm. When the thickness of the aluminum material is 1mm, its weight is 2.7kg/m2. When the thickness is 0.7mm, the weight of the aluminum material is 1.89kg/m2. The width of the coil can be customized according to customer requirements.
| Density(kg/m³) | 2.7 |
| Melting point(℃) | 658 |
| Expansion coefficient | 0.0000023 |
| Breaking load coefficient | 8-12kg/mm2 |
| Elongation | 10-40% |
| Thickness | 0.7-1.2mm |
| Width | Customized according to customer needs |
| Painting | PVDF,PE |
| Welding method | crimping and rivet fixing, welding |
Color Coated Aluminum Coil used For roofing panel system
- Roof panels: Aluminum roof panels usually roll forming by 3003/3004 color coated aluminum coil. The thickness is designed according to the purlin distance, and the perforation rate is calculated according to the project.
- Roof purlins: The material is aluminum-magnesium-manganese, which is used to support the roofing material to ensure the stability of the entire roof structure. The commonly used sizes are 40*40mm, 50*50mm, and 60*60mm. The size is selected according to the needs of the aluminum roof.
- Dustproof Layer: The dustproof layer of the aluminum roof is non-woven fabric, which is mainly used for dust and dust isolation and is laid on the upper surface of the roof base.
- Sound-absorbing cotton: The sound-absorbing cotton of the coated aluminum coil is usually made of glass wool, and its bulk density and thickness need to be determined according to calculations.
- Vapor barrier: It can be laid separately, or glass wool (with moisture-proof veneer) can be selected; the vapor barrier laid separately usually uses polyester film, high-density spunbond polyethylene film, etc.
- Roof secondary purlin: The secondary purlin material is aluminum-magnesium-manganese.
- Insulation and sound lnsulation layer: rock wool is usually used, and its thickness needs to be determined based on calculations.
- Waterproof breathable membrane: It is a high-density polyethylene non-woven fabric that blocks the invasion of wind and rain on the building structure. While strengthening the air tightness and water tightness of the building, it can also provide unique breathability, allowing the water inside the enclosure structure to be quickly discharged, effectively avoiding the formation of mold and condensation water.
- Aluminum alloy fixing seat (T-shaped code): fixed on the secondary purlin of the roof, used to fix the aluminum-magnesium-manganese alloy roof panel.
Products Advantage of Colored Aluminum coil for Roofing Panels
Color coated aluminum coils are a new type of roof panels. Coated aluminum panels are widely used in roof enclosure systems and play an important role in the development of modern artistic buildings towards comfort, lightness, durability, economy and environmental protection.
Aesthetic Pleasure
Prepainted aluminum coil can be customized according to different architectural styles and design requirements, and can perfectly blend into various environments, adding unique charm to buildings. At the same time, its streamlined appearance and modern design also make the building more modern and upscale visually.
Excellent Durability
Coated aluminum coils are usually made of aluminum alloy containing aluminum, magnesium and manganese. It not only have high strength and stability can withstand large loads and external forces without deformation or bending, but also have good weather resistance, can withstand the influence of various weather conditions, and are not easy to rust and corrode.
Easy installation
Color coated aluminum coils are simple to install compared to other materials and can be customized according to different building structures and needs. Some aluminum roof panels can be directly combined with the roof structure using an integrated design, greatly improving installation efficiency and quality.
High safety
Painted aluminum coil for roofing is light weight, strong bearing capacity and highly safe. It have good scratch resistance, impact resistance, and fire resistance, can reduce the harm caused by accidents to people.
High cost performance
Painted aluminum coils for roofing have high density, light weight, long-term durability and self-cleaning ability, low maintenance cost, which can save a lot of maintenance costs.
Environmentally Friendly
Color coated aluminum coil has good thermal insulation and heat insulation performance, which can reduce energy consumption and it is 100% recyclable and reusable, reducing environmental damage.
Aluminum Roofing panel Type
Aluminum roof panels mainly include high-edge aluminum panels (Inner height 65mm) and low-edge aluminum panels (Inner height 25mm). When choosing an aluminum roofing system for a building, not only the local climate conditions and the system's performance should be considered, but also the building's shape, style and appearance requirements. When making roofing proposals and designs, it is first necessary to understand the customer's specific requirements for the building's appearance, and then consider the building's specific performance.
High Standing Seam Aluminum Panels
Description: The common thickness of high standing seam coated aluminum panels is 0.4mm-1.2mm, the common models 65-430, 65-400, 65-420, 65-530, etc.
Advantages: High standing seam aluminum panels can not only ensure the waterproof performance of the roof panel under the condition of gentle slope, but also make the building present a rhythmic and modern appearance.
Application: For public buildings with high requirements for appearance, large area or shape span, and long service life, it is necessary to choose high-standing seam roofing system. It is commonly used in airports, railway stations, large transportation hubs, convention and exhibition centers, gymnasiums, large public entertainment facilities, public service buildings and other places.
Short Standing Seam Aluminum Panel
Description: The common thickness of short standing seam coated aluminum panel is 0.4mm-1.2mm, and the common models are 25-430, 25-400, 25-420, 25-530, etc.
Advantages: The short standing seam roof system is a supporting roof system with double-bite standing edges. The standing edge height is 25mm. The overall lightness and elegance, the local delicate and smooth, and the molding effect is very good.
Application: It is used in buildings with small roof areas, high appearance requirements and directly uses aluminum roof panels as the surface layer. It is usually used in villas and concrete foundation roofs.
Aluminum sheet Type
In order to meet the requirements of building roofs,aluminum sheet mainly have the following sheet types in building applications.
Straight panels
Introduction：The rib height of the straight sheet type is generally 65 mm
Application：Applicable to single-slope, double-slope and single-curved roofs with the radius larger than the natural arc radius.
Curved panels
Introduction: The curved panels includes positive curved sheet and reverse curved plate.
Application: Applicable to single-curved roofs with a radius smaller than the natural arc radius.
Sector panels
Introduction: Sector panels include straight sector panels, positive sector panels, and reverse sector panels.
Application: Applicable to double curved roof.
Application case of Colored Aluminum Coil used for Aluminum Roofing
Coated aluminum coil has good durability and weather resistance, are widely used in roofs or exterior walls of gymnasiums, libraries, art centers, exhibition centers, schools, hospitals, activity centers, high-speed rail stations, subway stations, airports, high-speed rail stations, etc.
Flat roof
The flat roof means that the roof slope is less than 10%, the roof area is small and the installation must be equipped with a roof waterproofing layer.
Sloped roof
Sloped roof refers to a roof with a slope of more than 10%. The roof has a large slope and drains quickly. It includes single-slope, double-slope, four-slope, hip-and-gable, folded-plate and other forms.
Curved roof
Curved roofs include spherical, cable-suspended, saddle-shaped and other roof forms. This type of roof has a special external shape and the construction process is more complicated.
Our Projects

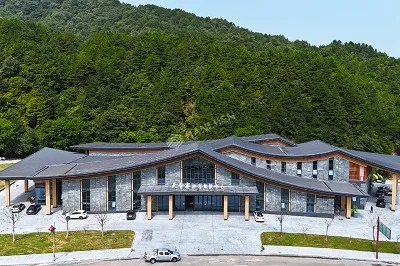

Visitor distribution center
As a visitor distribution center, the roof of the project not only requires better durability but also pays more attention to safety. This project uses 3004 PVDF coated aluminum coil, which are light weight can reduce the overall weight of the building and reduce the load on the base structure.

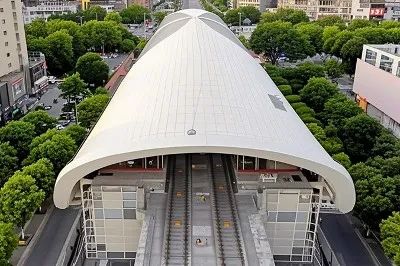

Metro Station Project
This project requires the roof system have strong durability, low maintenance costs, and lightweight and strong bearing capacity. The project uses 3004 PVDF colored aluminum coil. which the service life can be more than 30 years and the installation is easy and the construction period is short.

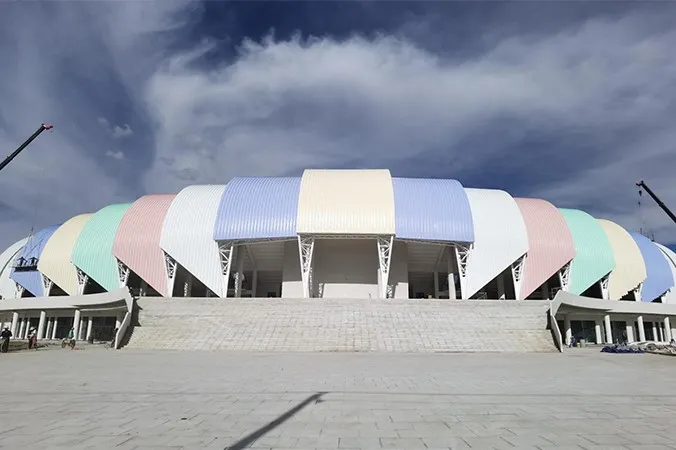

Rainbow Gymnasium
The environment of this project is exposed to sunlight all year round. As a public building, in order to better last and maintain bright colors, 3004 PVDF Coated aluminum coil were selected, model 65-430. The color and shape are customized according to customer needs.
Learn More About Hanchen Metal
Hanchen Metal are committed to providing customers with high-standard color coated aluminum coil and satisfactory services and highly efficient solutions.We have rich export experience and strong supply capacity, with an annual output of 300,000 tons.We sincerely hope to establish communication and connections with more and more industry professionals to make progress together for mutual benefit and win-win results.
competitive advantage
In addition to providing customers with high-quality aluminum coils, we also strive to provide customers with the services they need and satisfy them.
High Quality
Hanchen Metal conducts strict quality control from the selection of raw materials and paint to the entire processing process. We can support product quality testing by a third party before shipment.
Trustworthy Service
We are always committed to ensuring that your products meet or exceed expectations. Our professional sales will respond to customer inquiries and questions promptly and efficiently.
Custom Service
We can mix the color of the color coated aluminum coils according to the RAL color chart, or customize the colors, pattern or other design surface according to customer requirements
Free Sample
If the customer needs it, we can provide the customer with pure color aluminum coil samples on the RAL color card or we can match it according to the sample color sent by the customers.
Our factory & quipment
We have professional two automatic production lines with four-roller coating equipment.

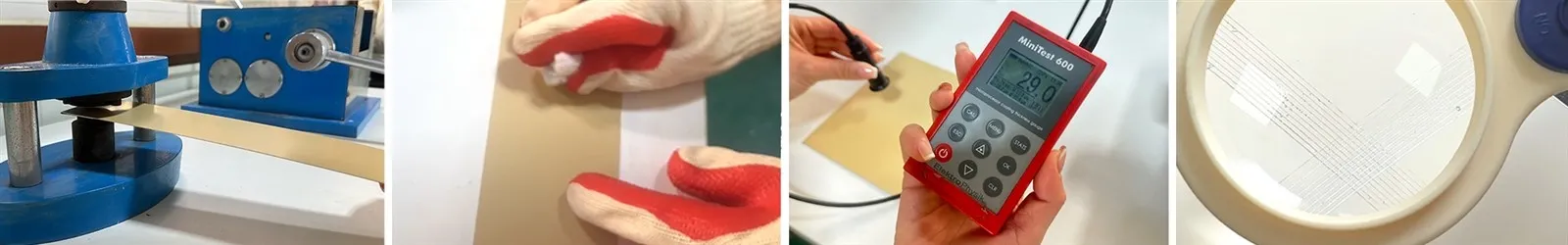

Quality Inspection for Colored Aluminum Coil
After the color aluminum coil is processed, we will test the colored aluminum coil samples, including the size, thickness, color, glossiness, coating adhesion
Your Professional Coated Aluminum Coil Supplier
If you are interested in our product,please contact us
